Air Inlet Assembly Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

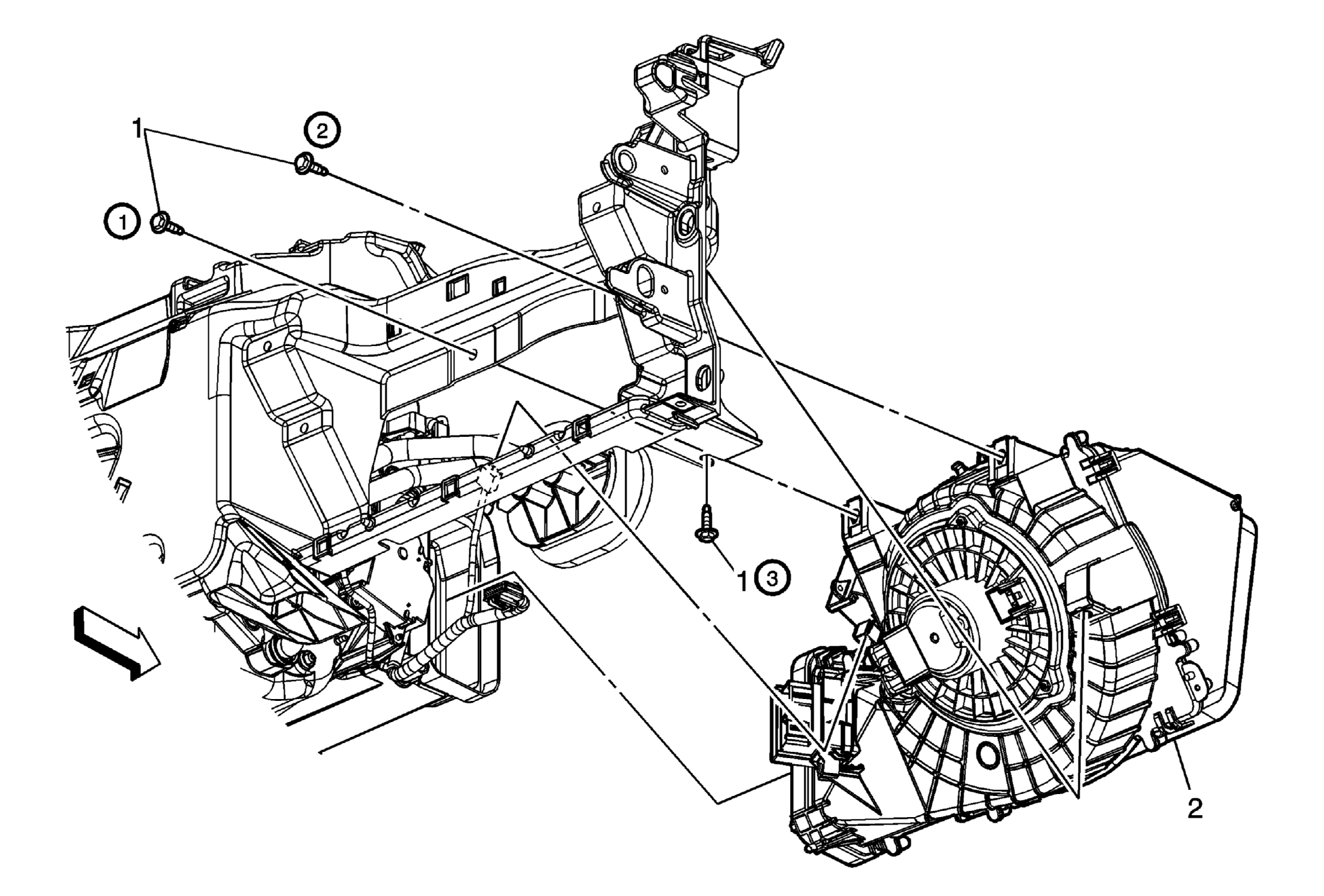

Fig 1: Air Inlet Assembly Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the I/P lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement . Remove the blower motor. Refer to Blower Motor Replacement . Remove the blower motor control module. Refer to Blower Motor Control Module Replacement . Disconnect any electrical connectors from the I/P or air inlet assembly.
1	Air Inlet Assembly Screw (Qty: 3). NOTE: Refer to Fastener Notice . Tighten: Tighten the bolt to 9 N.m (80 lb in)
2	Air Inlet Assembly. Procedure Disconnect any wiring harness from the instrument panel carrier assembly and position out of the way. Note the routing of wiring harness for proper installation. Mandatory tightening sequence required of air inlet assembly screws per illustration.

Callout

Component Name

Preliminary Procedure

Remove the I/P lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement .
Remove the blower motor. Refer to Blower Motor Replacement .
Remove the blower motor control module. Refer to Blower Motor Control Module Replacement .
Disconnect any electrical connectors from the I/P or air inlet assembly.

Air Inlet Assembly Screw (Qty: 3).

NOTE: Refer to Fastener Notice .

Tighten: Tighten the bolt to 9 N.m (80 lb in)

Air Inlet Assembly.

Procedure

Disconnect any wiring harness from the instrument panel carrier assembly and position out of the way.
Note the routing of wiring harness for proper installation.
Mandatory tightening sequence required of air inlet assembly screws per illustration.
