Air Distributor Center Duct Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

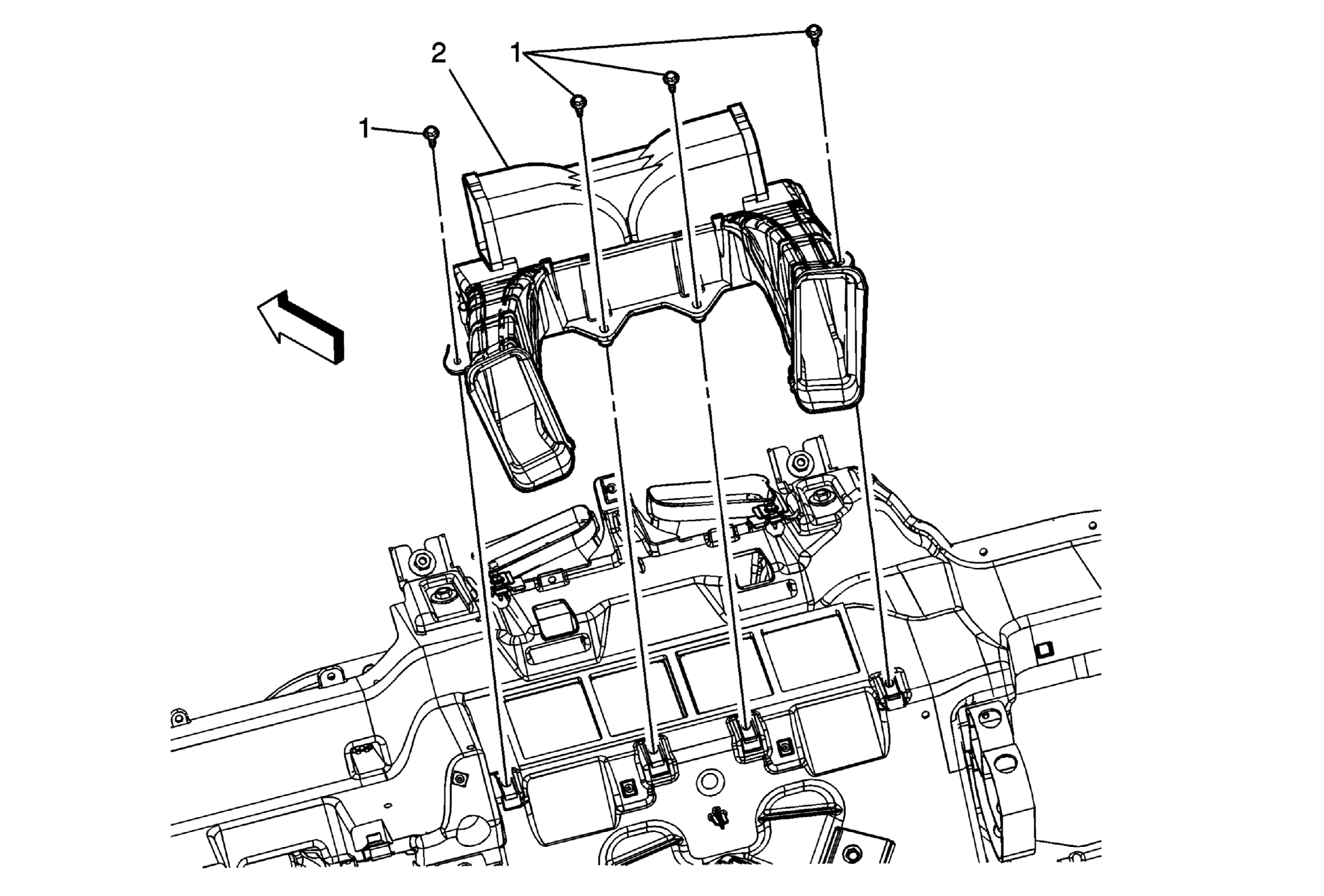

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the I/P lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement . |
|
| 1 | Center Air Distribution Duct Screw (Qty: 4) |
| 2 | Center Air Distribution Duct
NOTE:
Refer to Fastener Notice
. Procedure: Repositioning of the left and right side window defogger outlet ducts may be necessary to ease removal of the center air distribution duct. Tighten: 2 N.m (17 lb in) |
