Instrument Panel Upper Trim Panel Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

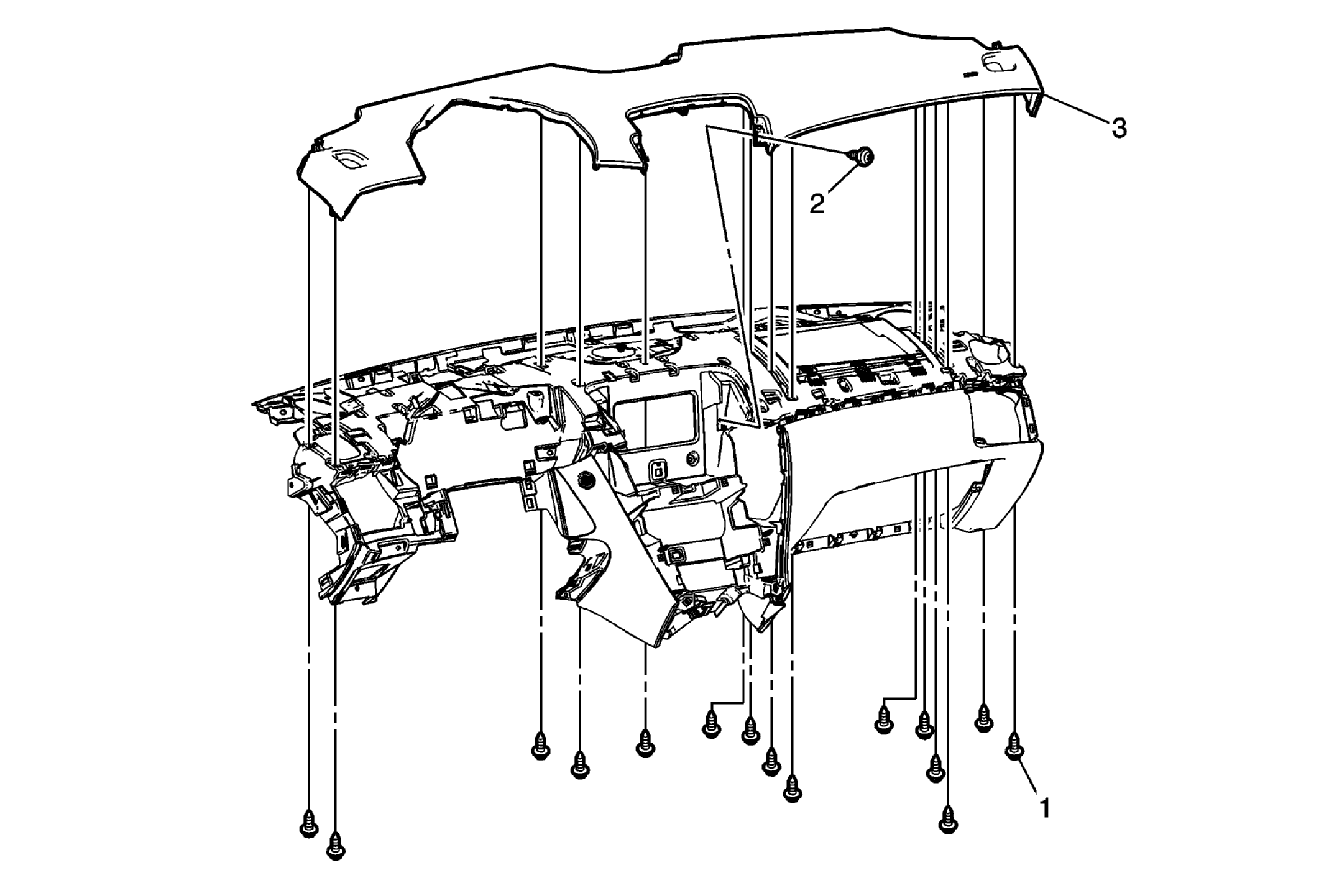

Fig 1: Instrument Panel Upper Trim Panel Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower trim panel assembly. Refer to Instrument Panel Lower Trim Panel Replacement . Remove the instrument panel inflatable restraint module. Refer to Inflatable Restraint Instrument Panel Module Replacement .
1	Instrument Panel Upper Trim Panel Screw (Qty: 37) NOTE: Refer to Fastener Notice . Tighten: 2.5 N.m (22 lb in)
2	Instrument Panel Upper Trim Panel Tie-Down Screw (Qty: 1) Tighten: 2.5 N.m (22 lb in)
3	Instrument Panel Upper Trim Panel Procedure Grasp the upper trim panel and pull upward disengaging the retainer clips securing the upper trim panel to the lower trim panel. When replacing the instrument panel upper trim panel assembly, transfer all necessary components.
