Front Floor Console Rear Cover Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

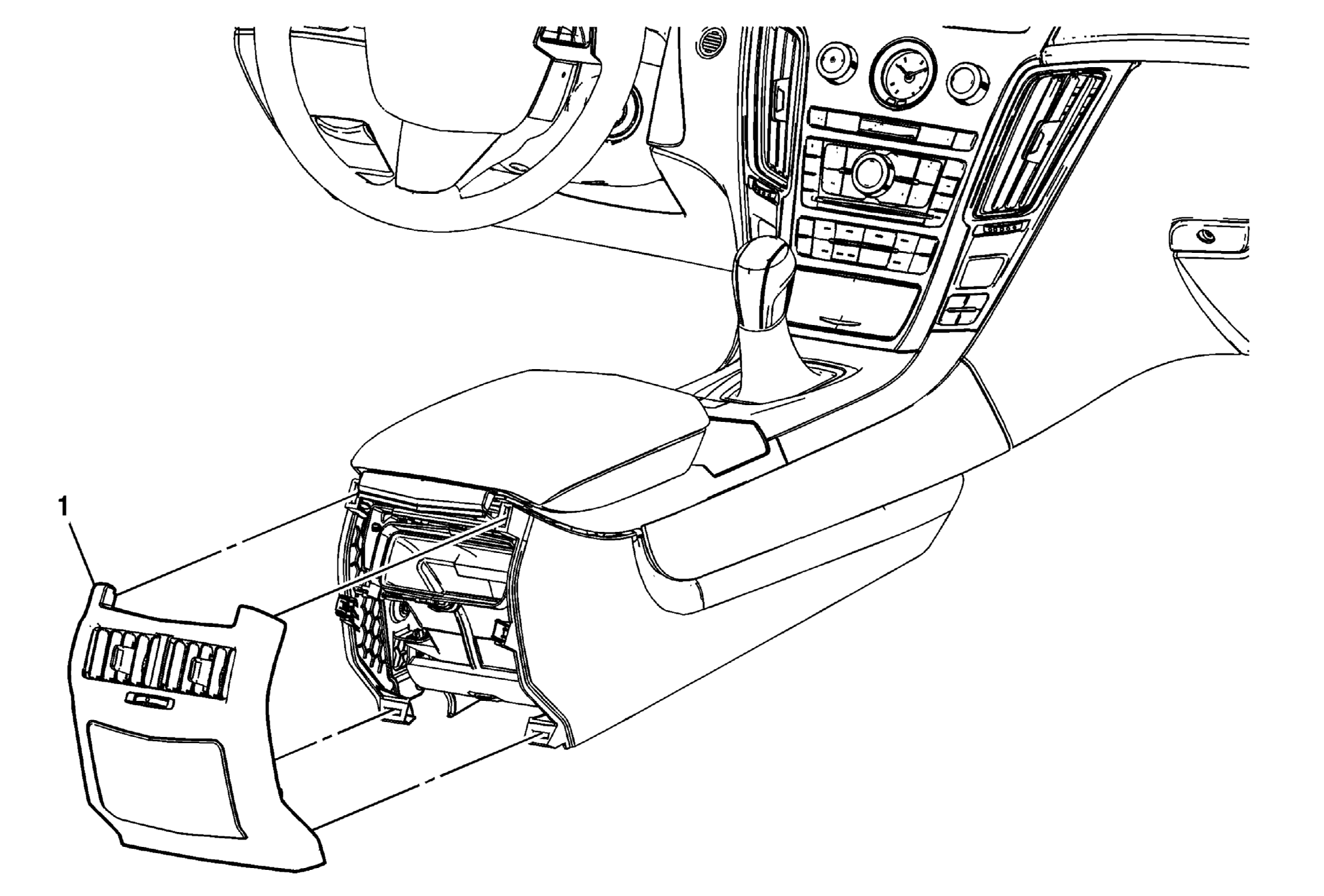

| Callout |
Component Name |
| 1 |
Front Floor Console Rear Cover Assembly Procedure
- Use a flat bladed plastic trim tool in order to release the retaining clips securing the front floor console rear cover to the console assembly.
- Disconnect the electrical connection.
- When replacing the front floor console rear cover, transfer all necessary components.
|
