Front Floor Console Compartment Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

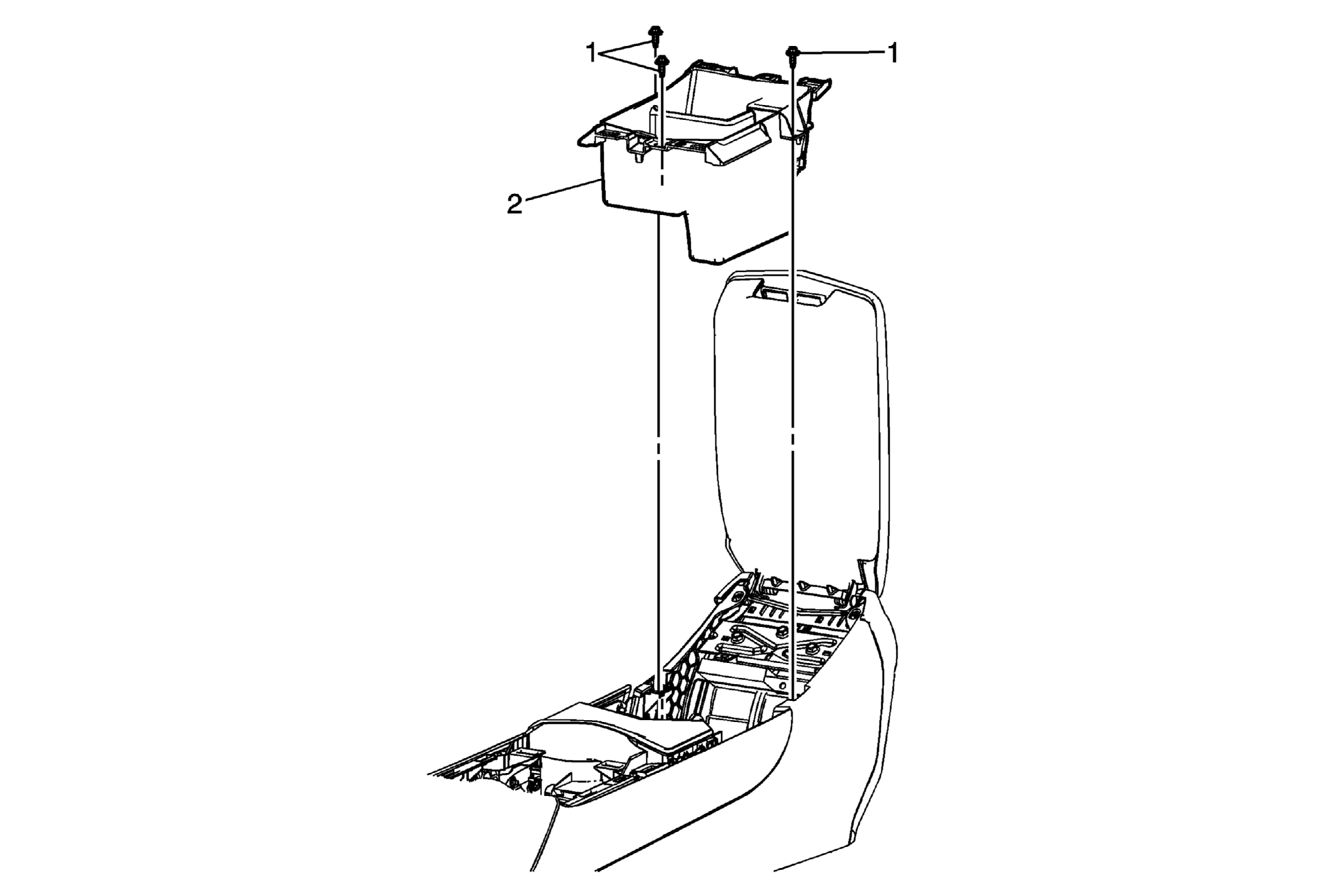

Fig 1: Front Floor Console Compartment Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement .
1	Front Floor Console Compartment Screw (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 2.5 N.m (22 lb in)
2	Front Floor Console Compartment Assembly Procedure Disconnect the electrical connections. When replacing the front floor console compartment, transfer all necessary components.

Callout

Component Name

Preliminary Procedure:
Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement .

Front Floor Console Compartment Screw (Qty: 3)

NOTE: Refer to Fastener Notice .

Tighten: 2.5 N.m (22 lb in)

Front Floor Console Compartment Assembly

Procedure

Disconnect the electrical connections.
When replacing the front floor console compartment, transfer all necessary components.
