Front Floor Console Trim Plate Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

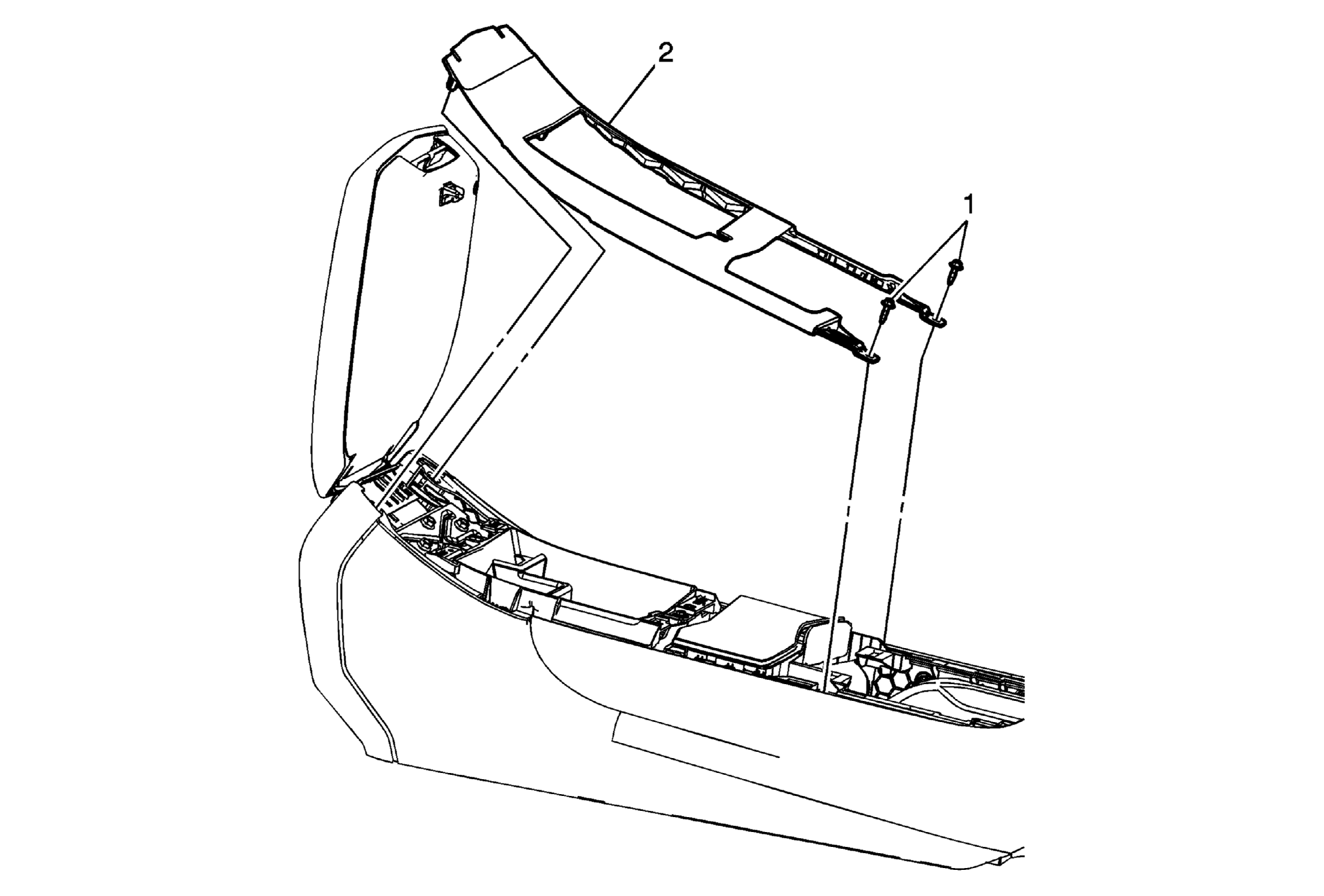

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front floor console transmission shifter trim plate. Refer to Front Floor Console Transmission Shift Opening Trim Plate Replacement (Automatic Transmission) or Front Floor Console Transmission Shift Opening Trim Plate Replacement (Manual Transmission) . |
|
| 1 | Front Floor Console Trim Plate Screw (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | Front Floor Console Trim Plate Assembly Procedure: Use a flat-bladed plastic trim tool in order to release the retaining clips securing the front floor console trim plate to the console assembly. |
