Front Floor Console Armrest Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

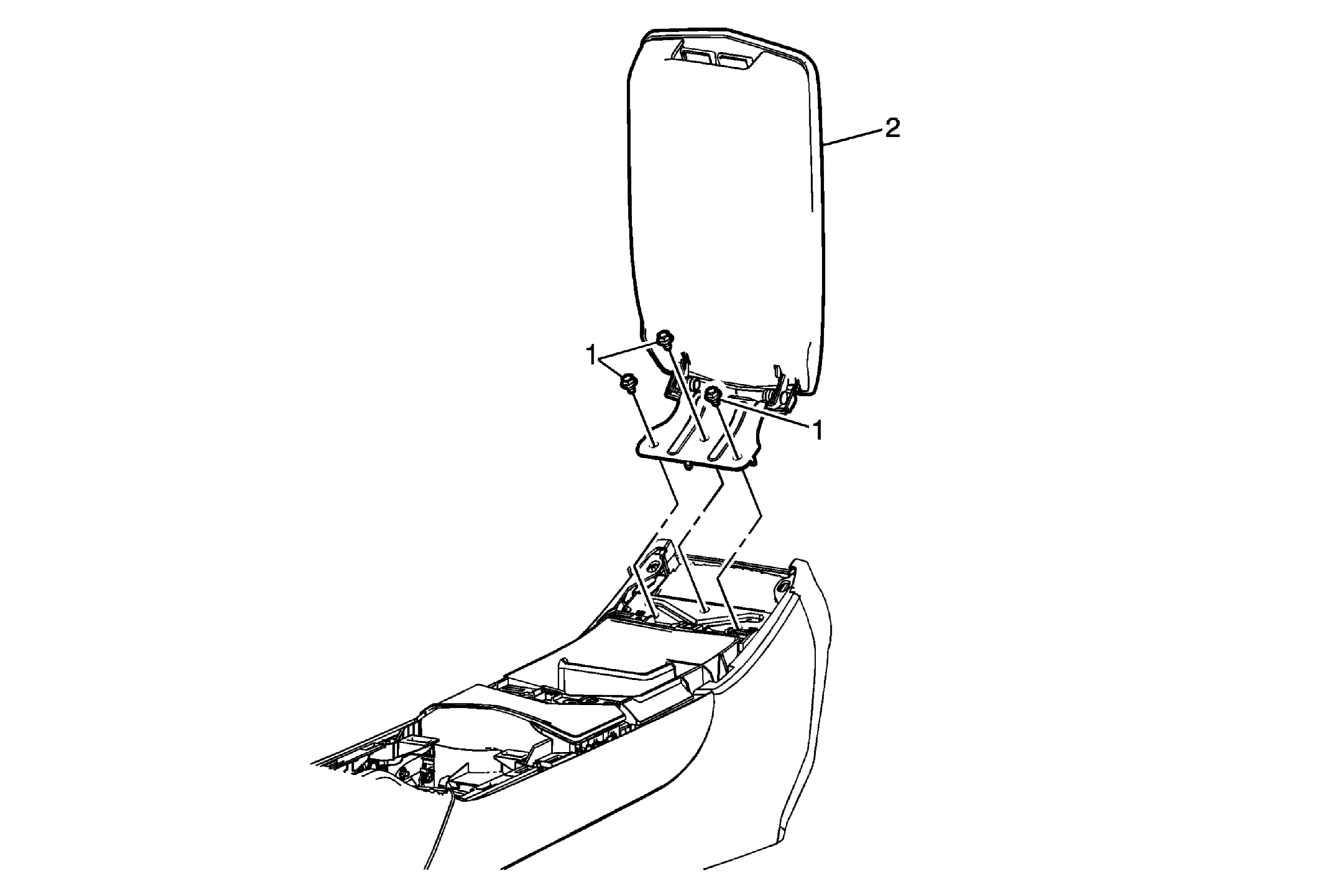

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement . |
|
| 1 | Front Floor Console Armrest Screw (Qty: 3)
NOTE:
Refer to Fastener Notice
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | Front Floor Console Armrest Assembly |
