Front Floor Console Armrest Latch Replacement - Lower

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

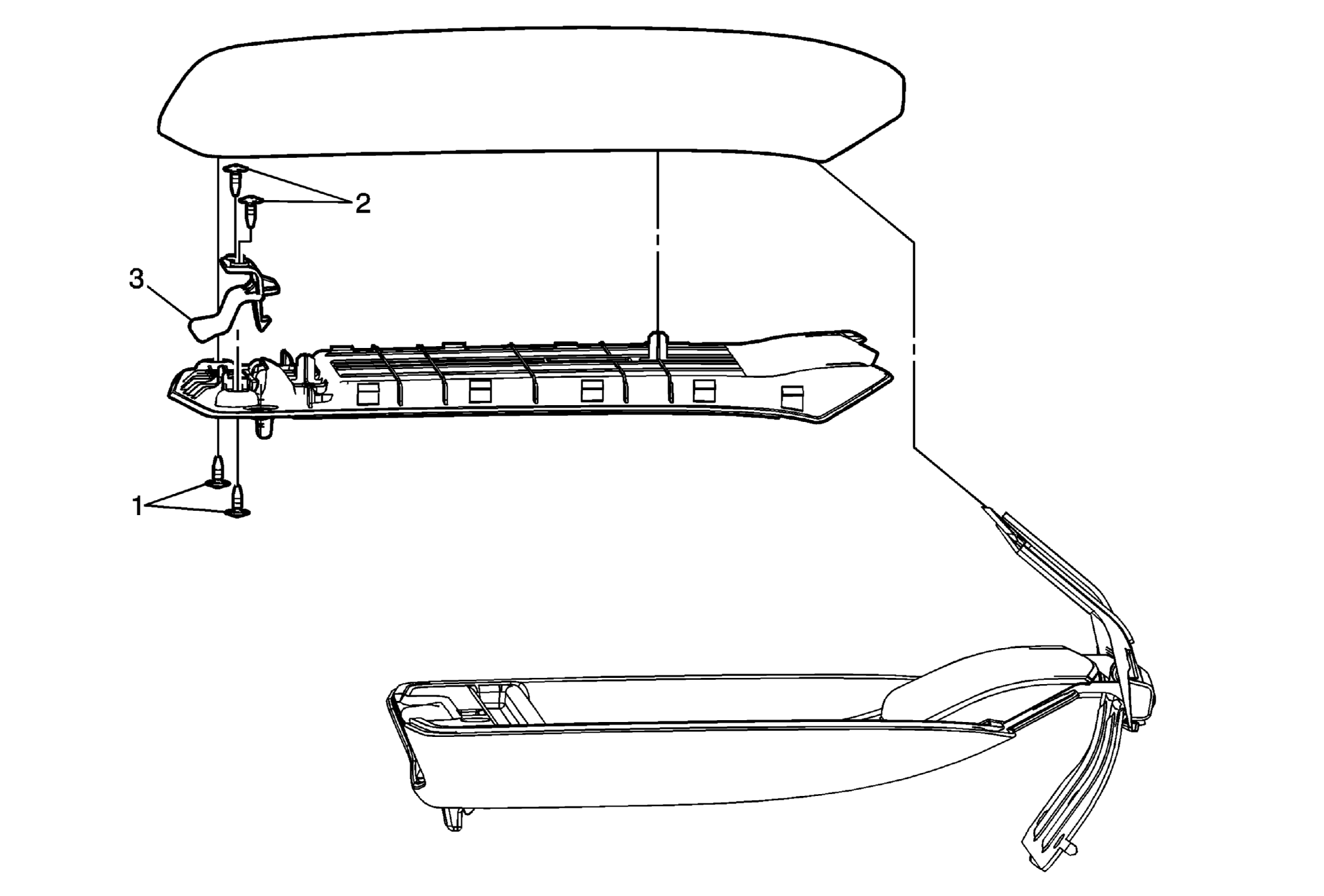

Fig 1: Front Floor Console Armrest Latch Replacement - Lower
GM1968368Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the front floor console armrest assembly. Refer to Front Floor Console Armrest Replacement .
1 Front Floor Console Lower Armrest Retainer Screw (Qty: 3)
NOTE: Refer to Fastener Notice .

Procedure:
Grasp the front floor console lower armrest retainer and pull it apart from the armrest upper compartment bin assembly.

Tighten:  2.5 N.m (22 lb in)
2 Front Floor Console Compartment Door Lower Latch Screw (Qty: 2)

Tighten:  2.5 N.m (22 lb in)
3 Front Floor Console Compartment Door Lower Latch Assembly
