Front Floor Console Armrest Hinge Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

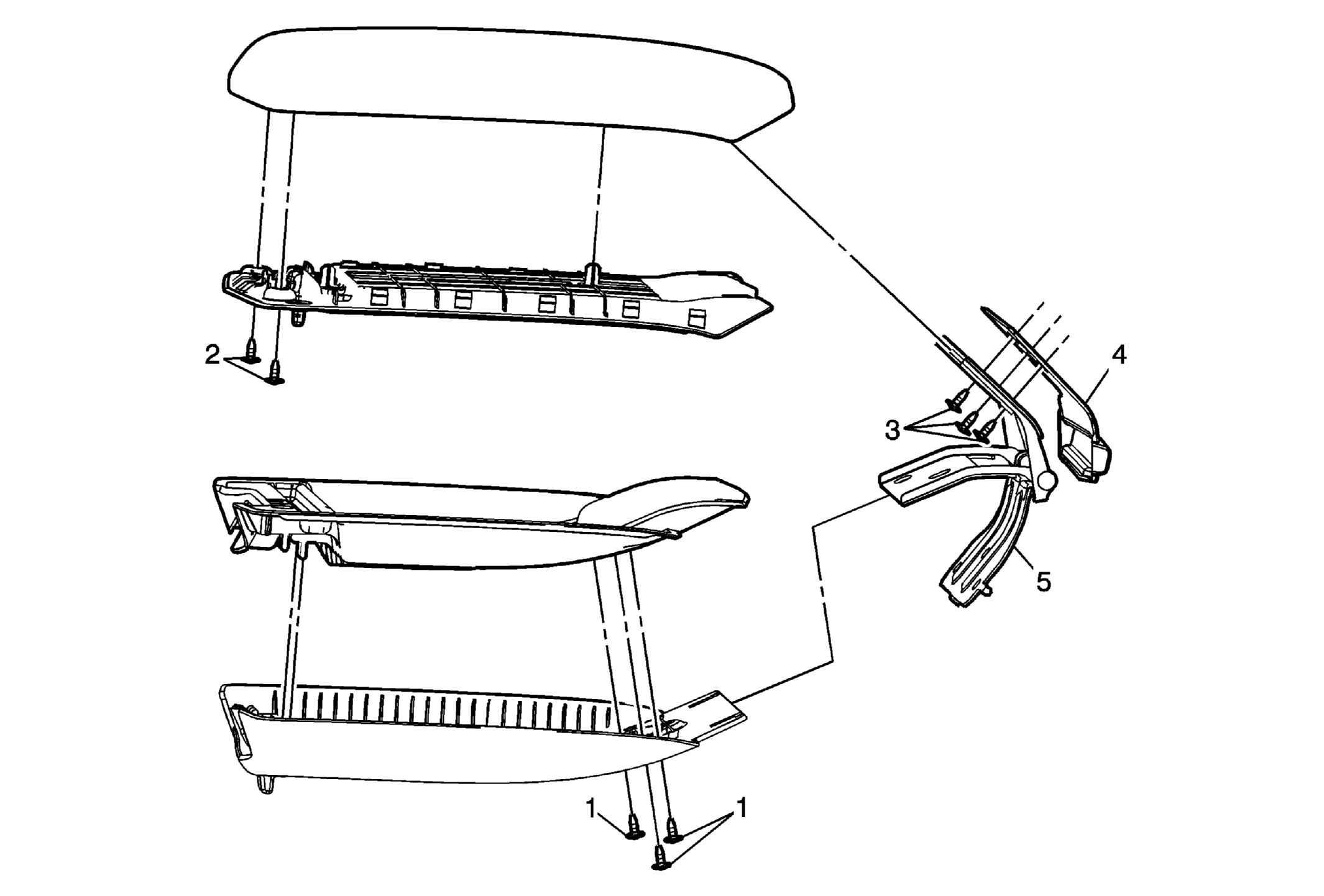

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front floor console armrest assembly. Refer to Front Floor Console Armrest Replacement . |
|
| 1 | Front Floor Console Lower Armrest Retainer Screw (Qty: 3)
NOTE:
Refer to Fastener Notice
. Procedure: Grasp the front floor console lower armrest retainer and pull it apart from the armrest upper compartment bin assembly. Tighten: 2.5 N.m (22 lb in) |
| 2 | Front Floor Console Upper Closeout Screw (Qty: 2) Procedure: Grasp the front floor console upper closeout panel and pull it apart from the upper armrest assembly. Tighten: 2.5 N.m (22 lb in) |
| 3 | Front Floor Console Compartment Door Hinge Screw (Qty 3) Tighten: 2.5 N.m (22 lb in) |
| 4 | Front Floor Console Compartment Door Hinge Cover |
| 5 | Front Floor Console Compartment Door Hinge Assembly |
