Rear Seat Back Cushion Frame Replacement (with AM9)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

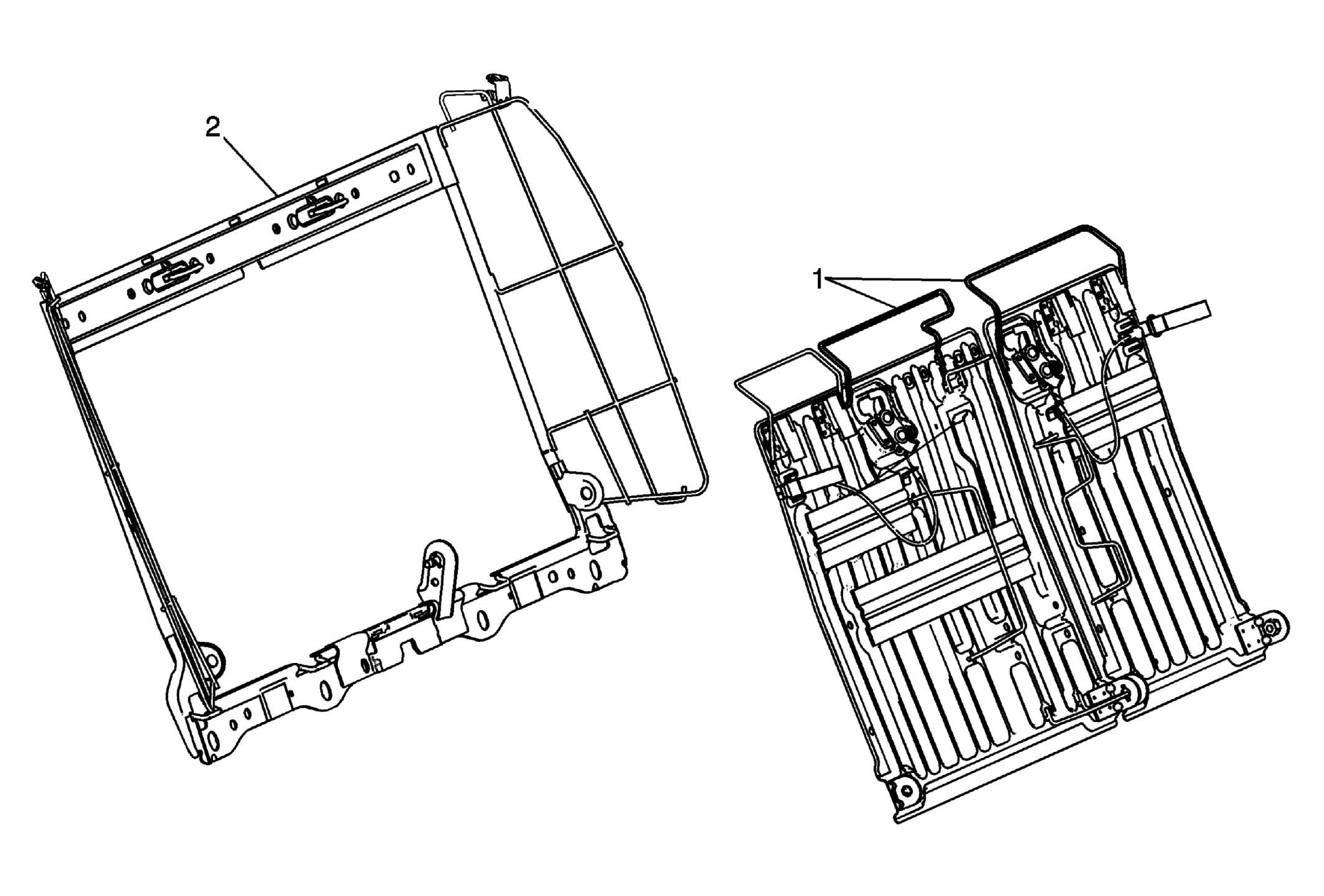

Fig 1: Rear Seat Back Cushion Frame Replacement (with AM9)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear seat back. Refer to Rear Seat Back Replacement . Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (with AM9) or Rear Seat Back Cushion Cover and Pad Replacement (without AM9) or Rear Seat Back Cushion Cover and Pad Replacement (Side with AM9) . Remove the rear seat armrest, if equipped. Refer to Rear Seat Armrest Replacement (with AM9) or Rear Seat Armrest Replacement (without AM9) .
1	Rear Seat Back Cushion Opening Panel Refer to Rear Seat Back Cushion Opening Panel Replacement (with 60 Percent Seat) or Rear Seat Back Cushion Opening Panel Replacement (with 40 Percent Seat) .
2	Rear Seat Back Cushion Frame

Callout

Component Name

Preliminary Procedure

Remove the rear seat back. Refer to Rear Seat Back Replacement .
Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (with AM9) or Rear Seat Back Cushion Cover and Pad Replacement (without AM9) or Rear Seat Back Cushion Cover and Pad Replacement (Side with AM9) .
Remove the rear seat armrest, if equipped. Refer to Rear Seat Armrest Replacement (with AM9) or Rear Seat Armrest Replacement (without AM9) .

Rear Seat Back Cushion Opening Panel
Refer to Rear Seat Back Cushion Opening Panel Replacement (with 60 Percent Seat) or Rear Seat Back Cushion Opening Panel Replacement (with 40 Percent Seat) .

Rear Seat Back Cushion Frame
