Rear Bumper Fascia Molding Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

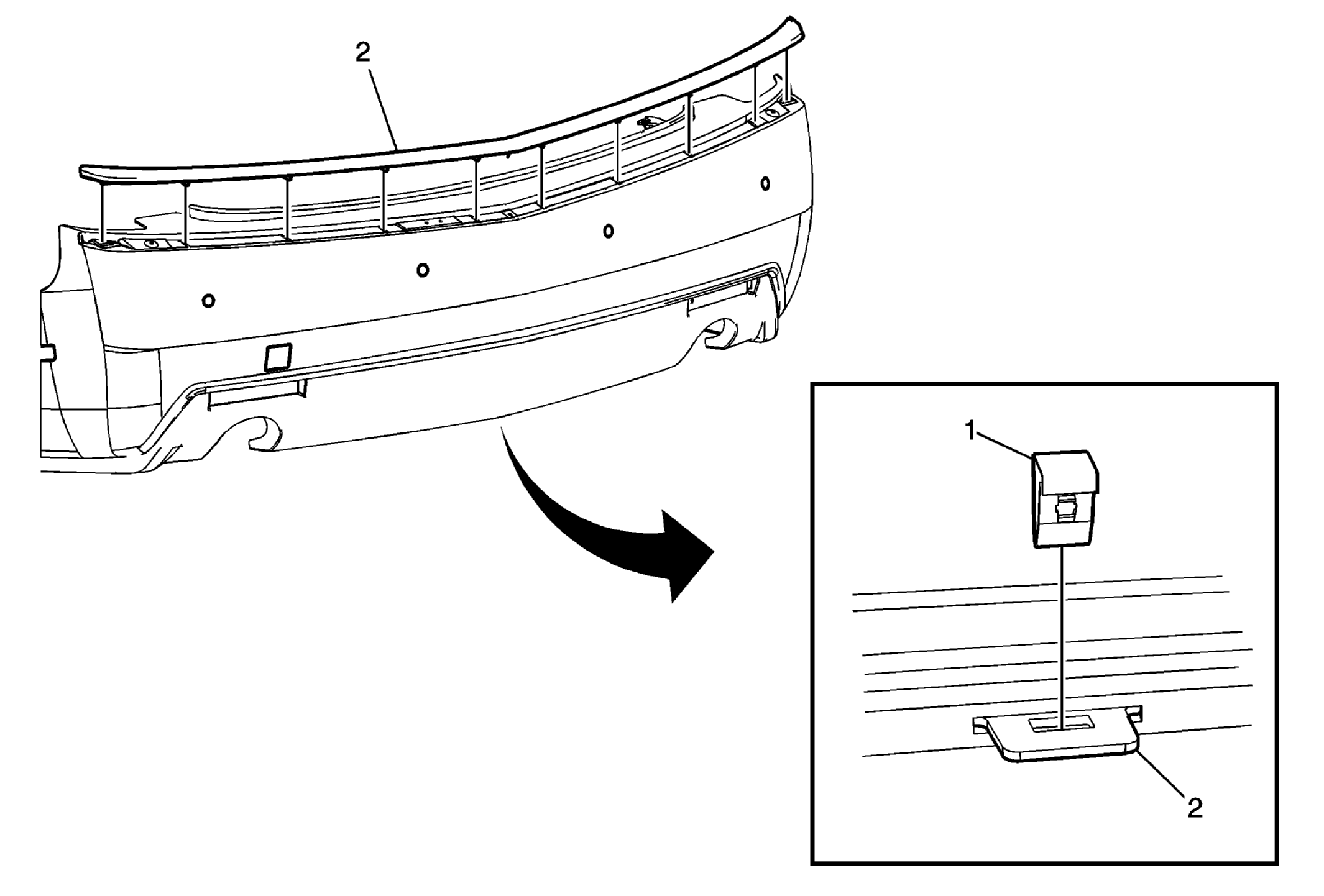

Fig 1: View of Rear Bumper Fascia Molding Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear bumper. Refer to Rear Bumper Fascia Replacement .
1	Rear Bumper Fascia Molding Insert Clip (Qty: 10)
2	Rear Bumper Fascia Molding Tip: Pull up on the molding to remove.
