Radiator Upper Grille Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

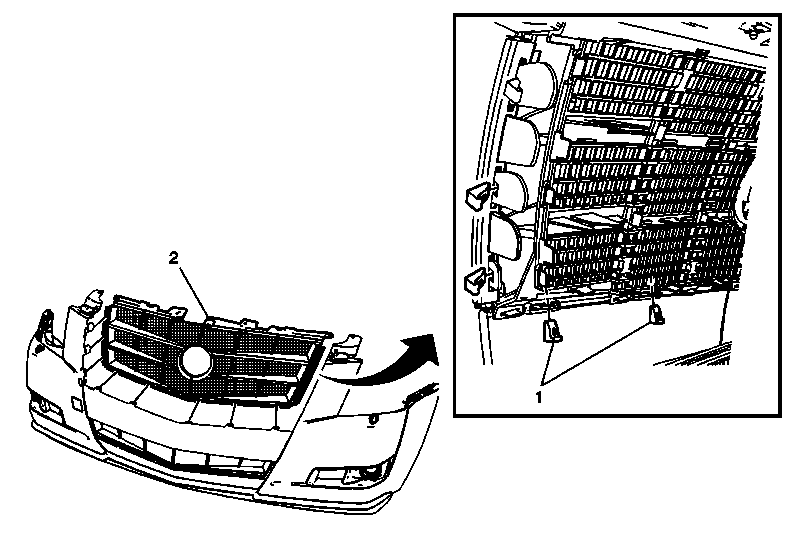

Fig 1: View of Radiator Upper Grille Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Radiator Upper Grille Retainer Clips (Qty: 10) Procedure: Use a pair of needle nose pliers in order to depress and remove the retainer clips from the front bumper fascia support tabs.
2	Radiator Upper Grille Assembly Tip: Pull the grille assembly rearward from the retainer tabs on the inside of the front bumper fascia.
