Radiator Lower Grille Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

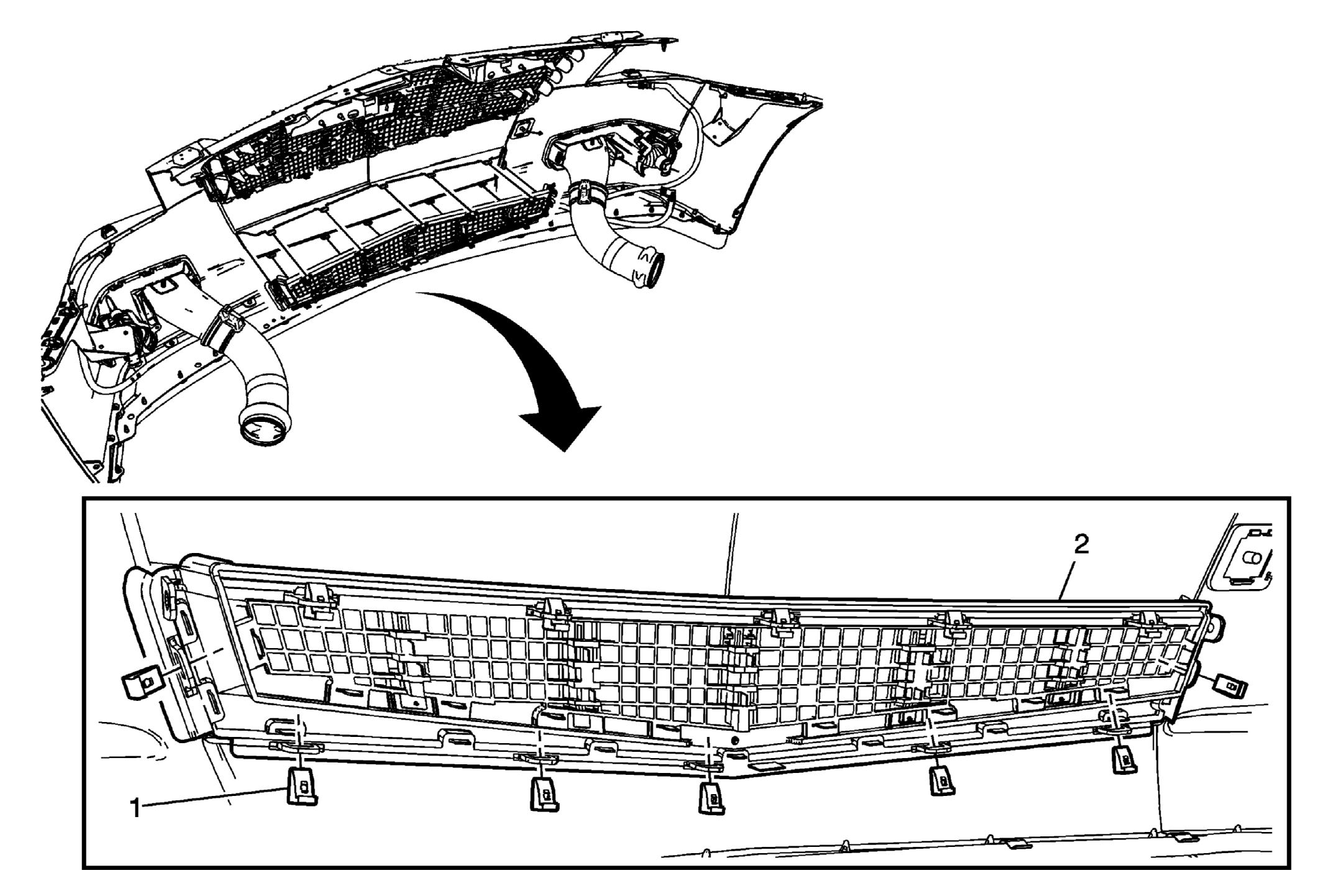

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . |
|
| 1 | Radiator Lower Grille Clips (Qty: 12) |
| 2 | Radiator Lower Grille Tip: Release the lower grille from the front bumper fascia grille support tabs. |
