Installation Procedure

WARNING: This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

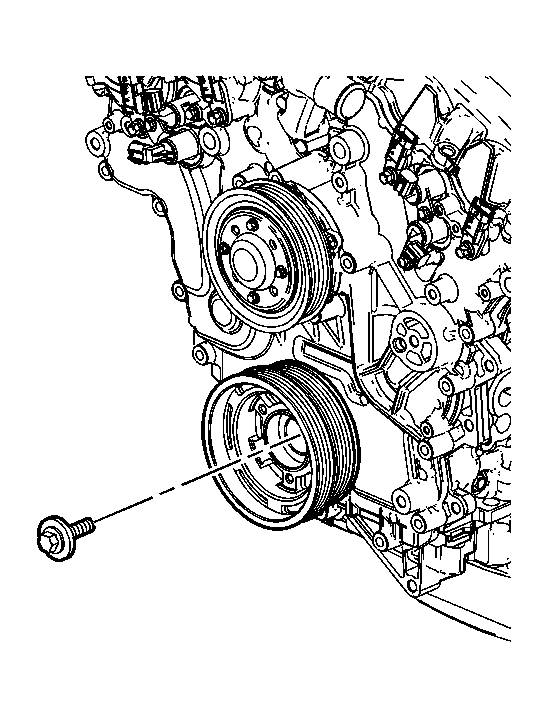

    Fig 1: View Of Crankshaft Balancer & Bolt
    GM902878Courtesy of GENERAL MOTORS CORP.
  1. Install the crankshaft balancer. Refer to Crankshaft Balancer Installation .
  2. Install the generator and water pump drive belt. Refer to Drive Belt Tensioner Replacement - Power Steering and Air Conditioning .
  3. Install the A/C compressor and power steering pump drive belt. Refer to Drive Belt Tensioner Replacement - Generator and Water Pump .
