Air Deflector Replacement - Front

WARNING: This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

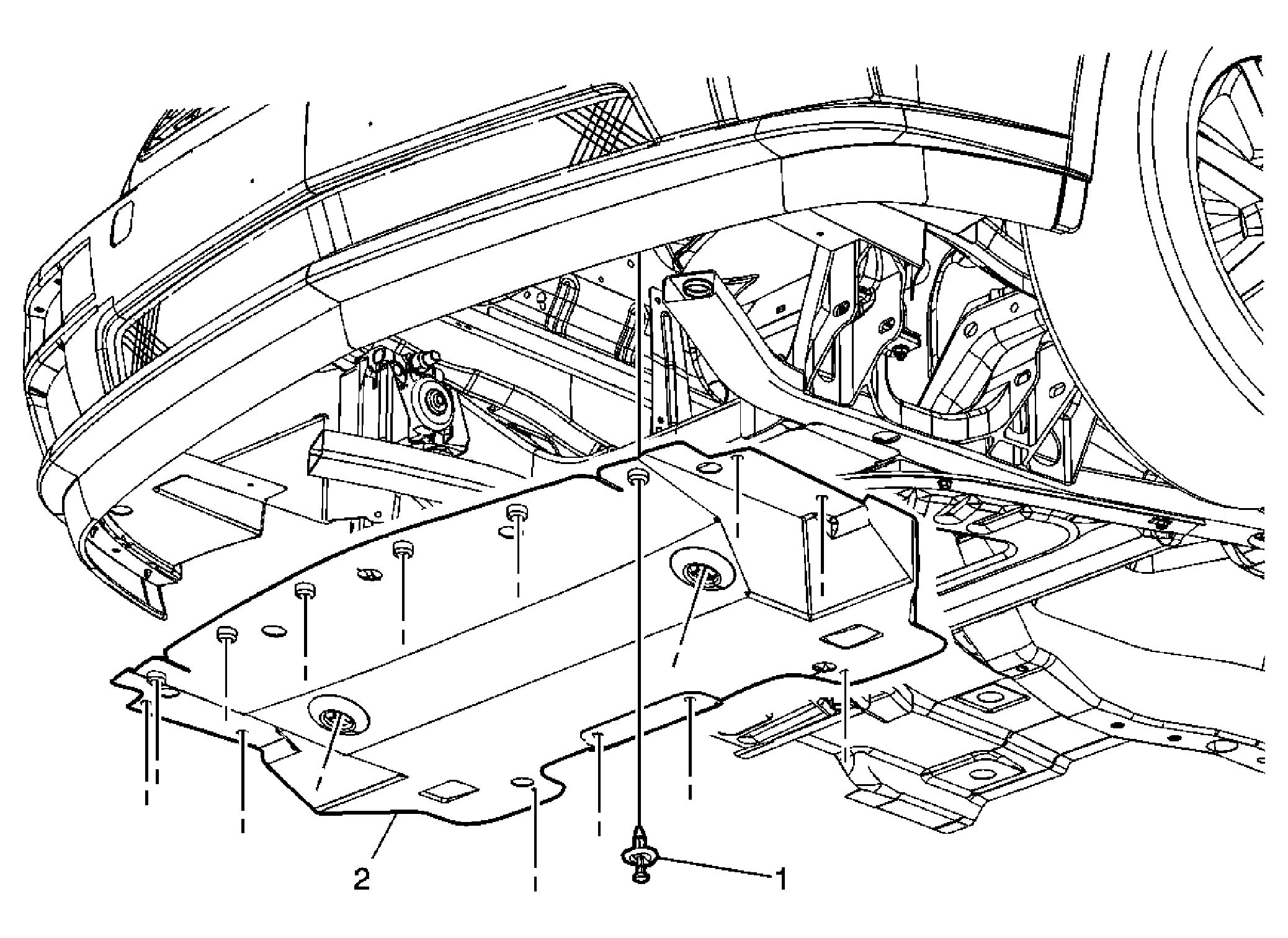

Fig 1: View Of Front Air Deflector

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Retainer, Front Air Deflector (Qty: 16)
2	Deflector Assembly, Front Air
