Removal Procedure

WARNING: This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

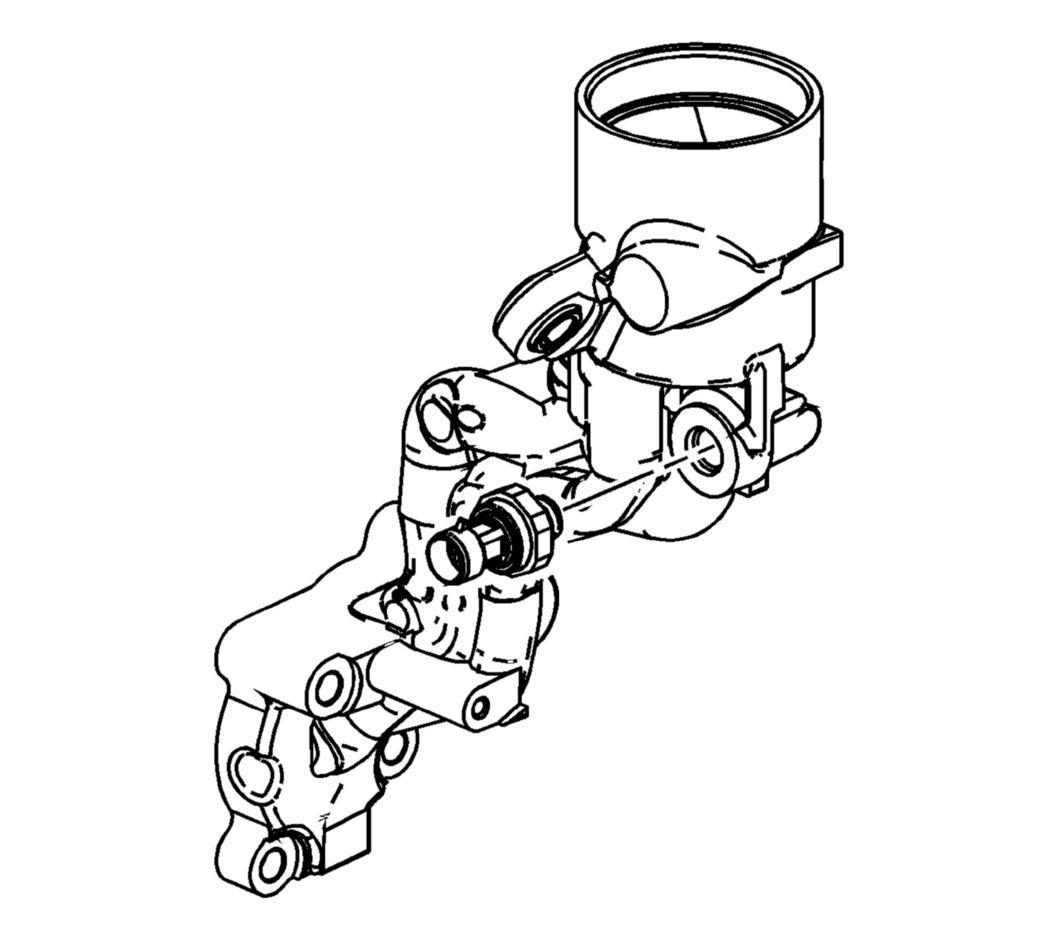

    Fig 1: View Of Oil Pressure Sender
    GM1210954Courtesy of GENERAL MOTORS CORP.
  1. Turn the ignition OFF
  2. Remove the front compartment sight shield as necessary. Refer to Sight Shields, Hood Adjuster, Hood Bumper, Hood Latch Replacement in Body Front End.
  3. Disconnect the oil pressure sensor electrical connector.
  4. Remove the oil pressure sensor.
