Sight Shields, Hood Adjuster, Hood Bumper, Hood Latch Replacement

WARNING: This page is about a different car, the 2005 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

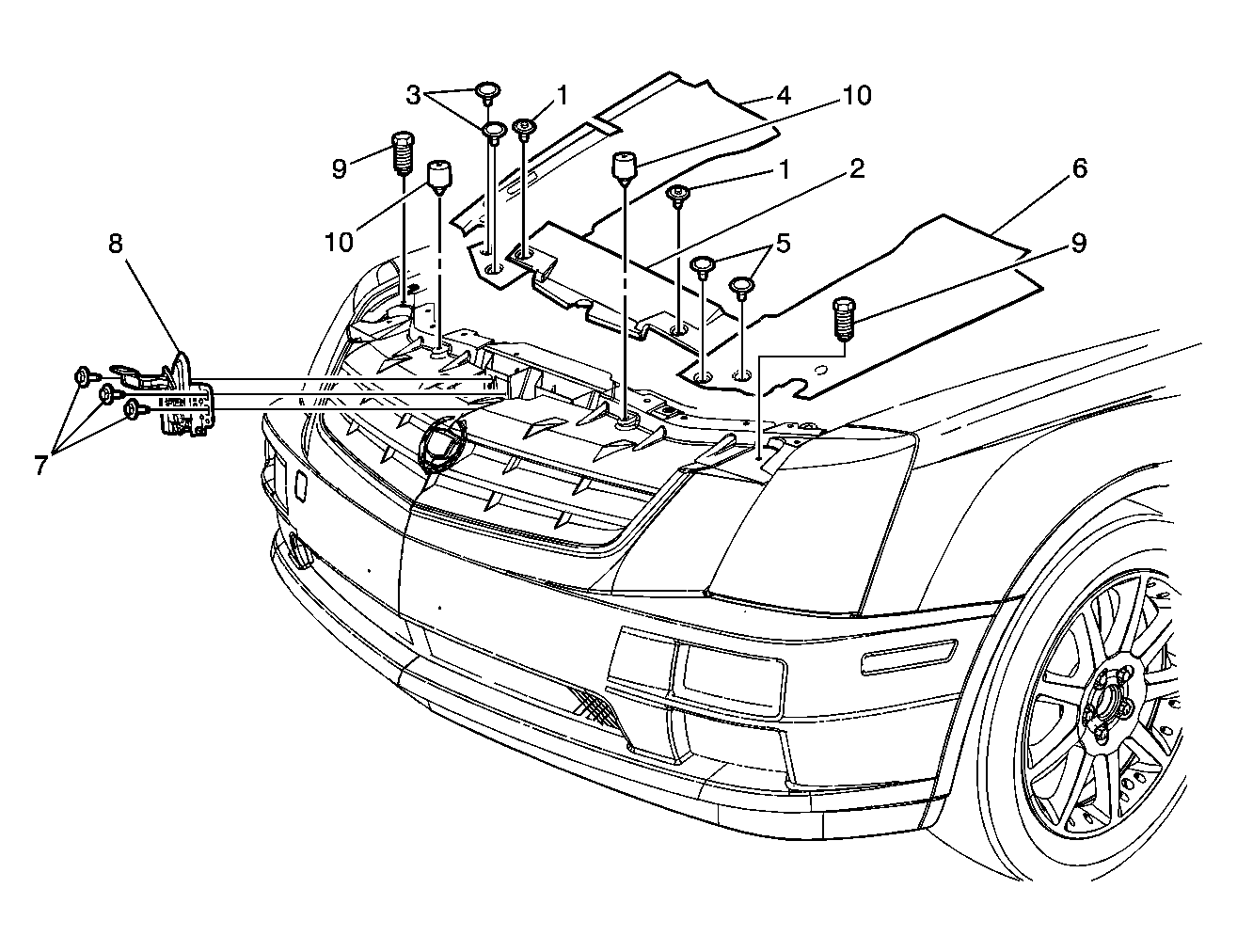

Fig 1: View Of Sight Shields, Hood Adjuster, Hood Bumper & Hood Latch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Front Compartment Front Sight Shield Replacement
1	Retainer, Front Compartment Sight Shield (Qty: 2)
2	Shield Assembly, Front Compartment Front Sight
Right Front Compartment Sight Shield Replacement
3	Retainer, Front Compartment Sight Shield (Qty: 2)
4	Shield Assembly, Right Front Compartment Sight
Left Front Compartment Sight Shield Replacement
5	Retainer, Front Compartment Sight Shield (Qty: 2)
6	Shield Assembly, Left Front Compartment Sight
Hood Primary and Secondary Latch Assembly Replacement
1	Retainer, Front Compartment Sight Shield (Qty: 2)
2	Shield Assembly, Front Compartment Front Sight
7	Bolt, Hood Primary and Secondary Latch (Qty: 3) Tighten: 9 N.m (80 lb in)
8	Latch Assembly, Hood Primary and Secondary Tip: Remove the hood release cable from the latch.
Hood Adjust Bumper Replacement
9	Bumper, Hood Adjust Tip: Turn the hood adjust bumper counterclockwise to remove. Turn the hood adjust bumper clockwise to install. Adjust hood to proper level. Refer to Hood Adjustment .
Hood Stop Bumper Replacement
10	Bumper, Hood Stop
