Installation Procedure

  1. If necessary, install the trim cover protector (1) to the lower trim cover (2).
  2. Install the shift lever. Refer to SHIFT LEVER REPLACEMENT  .

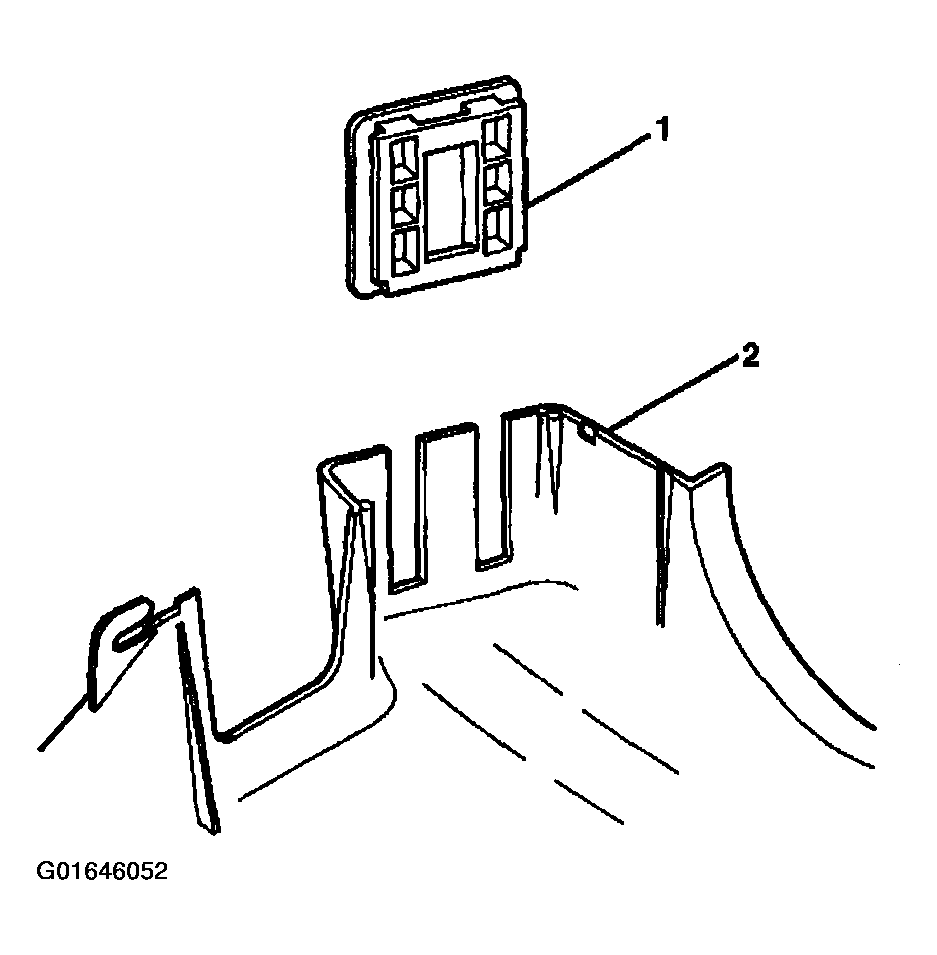

    Fig 1: Installing Trim Cover Protector To Lower Trim Cover
    G01646052Courtesy of GENERAL MOTORS CORP.
  3. Install the upper trim cover (2) and secure by using the TORX® head screw (1).

    Tighten

    Tighten the screw to 1.5 N.m (13 lb in).

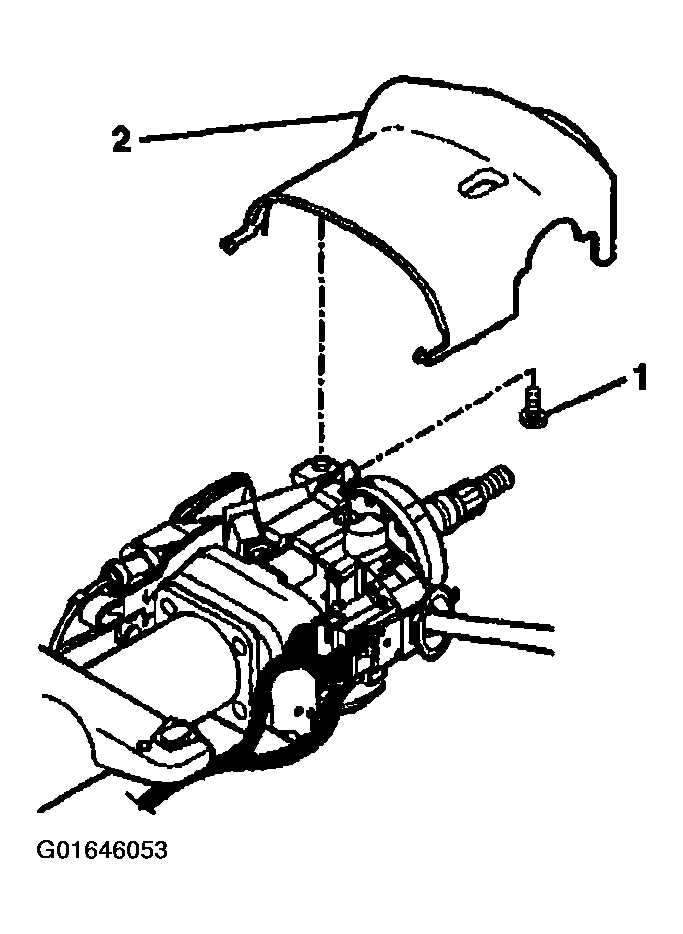

    Fig 2: Installing Upper Trim Cover
    G01646053Courtesy of GENERAL MOTORS CORP.
  4. Install the lower trim cover (1) and secure by using 2 pan head tapping screws (2).

    Tighten

    Tighten the screws to 3.5 N.m (31 lb in).

  5. Install the tilt lever assembly. Refer to TILT LEVER REPLACEMENT  .
  6. Install the steering wheel onto the column. Refer to STEERING WHEEL REPLACEMENT  .
  7. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.

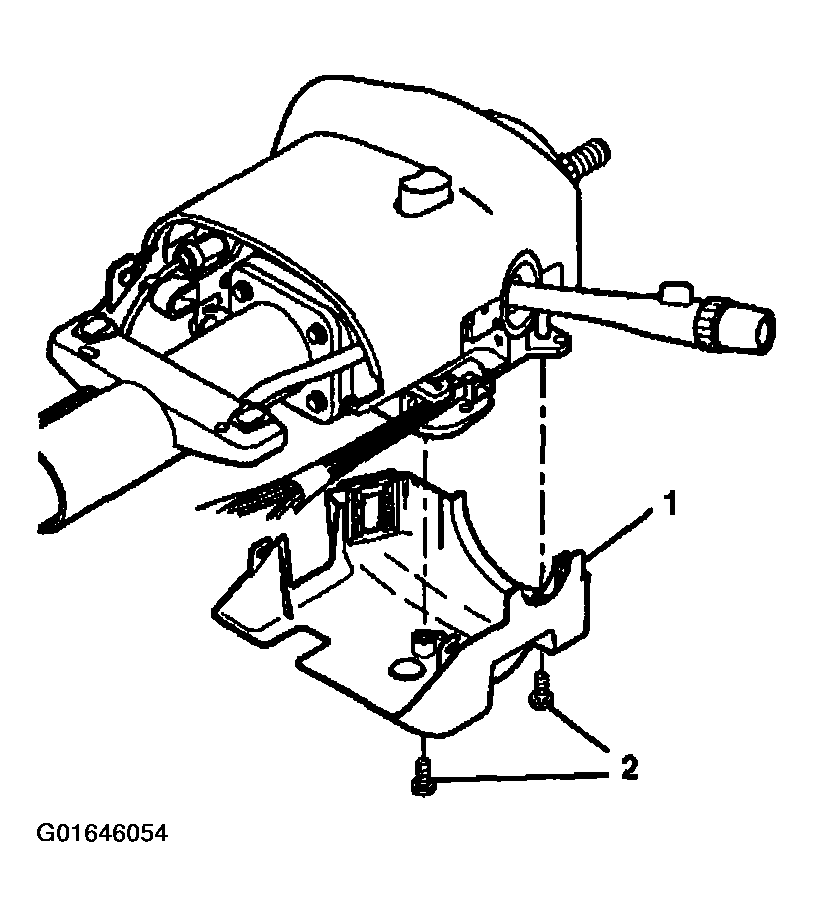

    Fig 3: Installing Lower Trim Cover
    G01646054Courtesy of GENERAL MOTORS CORP.
