Removal Procedure

CAUTION:
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  2. Remove the turn signal cancel cam assembly. Refer to TURN SIGNAL CANCEL CAM AND UPPER BEARING THRUST WASHER  .

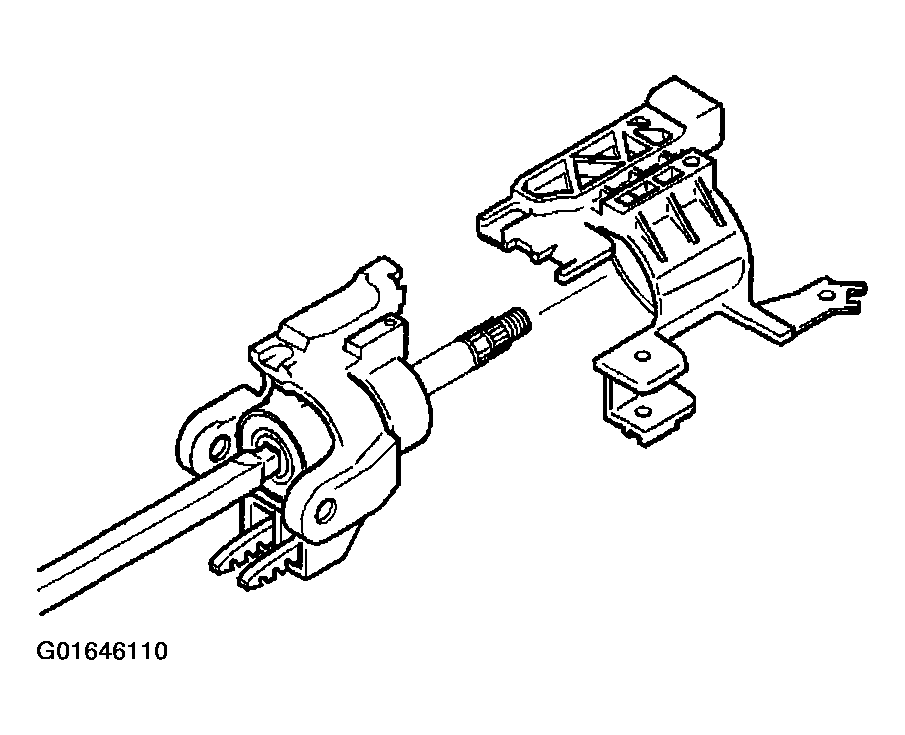

    Fig 1: Removing Tilt Head From Steering Shaft
    G01646110Courtesy of GENERAL MOTORS CORP.
  3. Remove the turn signal and multifunction switch assembly only. Refer to MULTIFUNCTION, TURN SIGNAL SWITCH REPLACEMENT  .
  4. Slide the turn signal switch housing off of the steering column shaft assembly.
  5. Remove the tilt head housing and steering shaft as an assembly. Refer to LOWER BEARING AND STEERING COLUMN JACKET REPLACEMENT (TILT COLUMN)  or LOWER BEARING AND STEERING COLUMN JACKET REPLACEMENT (STANDARD COLUMN)  .
  6. Remove the tilt head from the steering shaft.
