Installation Procedure

  1. Insert the ignition lock cylinder through the upper shroud.
  2. Install the ignition lock cylinder to the ignition lock cylinder case by performing the following procedure:
    1. 2.1 Align the slots on the ignition lock cylinder case assembly to the tabs on the ignition lock cylinder.
    2. 2.2 Push the ignition lock cylinder into the ignition lock cylinder case assembly until the locking tab locks against the ignition lock cylinder case.

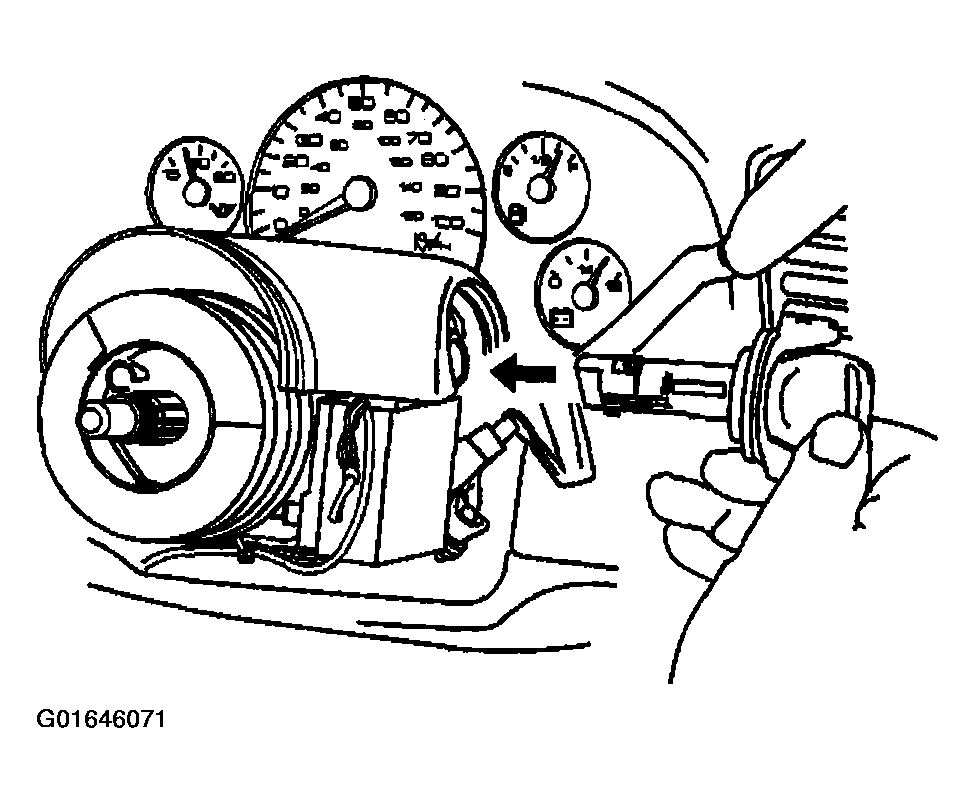

    Fig 1: Installing Ignition Lock Cylinder
    G01646071Courtesy of GENERAL MOTORS CORP.
    NOTE:
  3. Install the mounting screws to the upper steering column trim cover.

    Tighten

    Tighten the screws to 1.5 N.m (31 lb in).

  4. Install the lower steering column trim cover. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT  .
  5. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  6. Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
  7. Perform the Passlock learn procedure. Refer to PROGRAMMING THEFT DETERRENT SYSTEM COMPONENTS in Theft Deterrent.

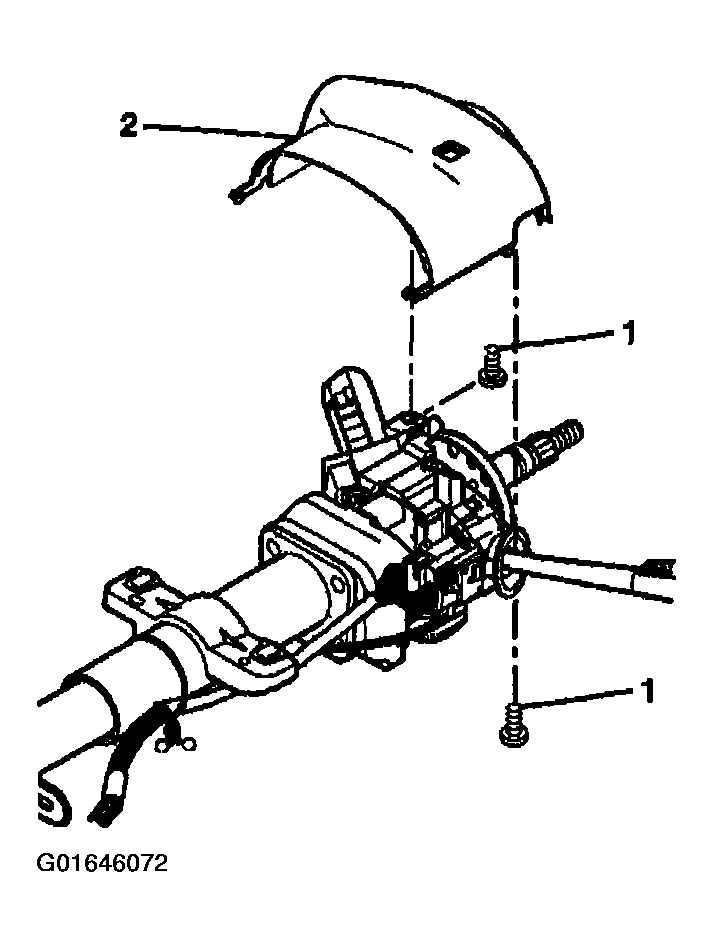

    Fig 2: Installing Mounting Screws To Upper Steering Column Trim Cover
    G01646072Courtesy of GENERAL MOTORS CORP.
