Installation Procedure

  1. Install the lock bolt spring (3) into the steering column tilt head assembly (5).
  2. Position the cutout in the lock bolt assembly (4) at the 6 o'clock position.
  3. Install the lock bolt assembly (4) into the steering column tilt head assembly (5).
  4. Push the lock bolt assembly (4) into the steering column tilt head assembly (5) until the lock bolt assembly is flush with the steering column tilt head assembly (5).

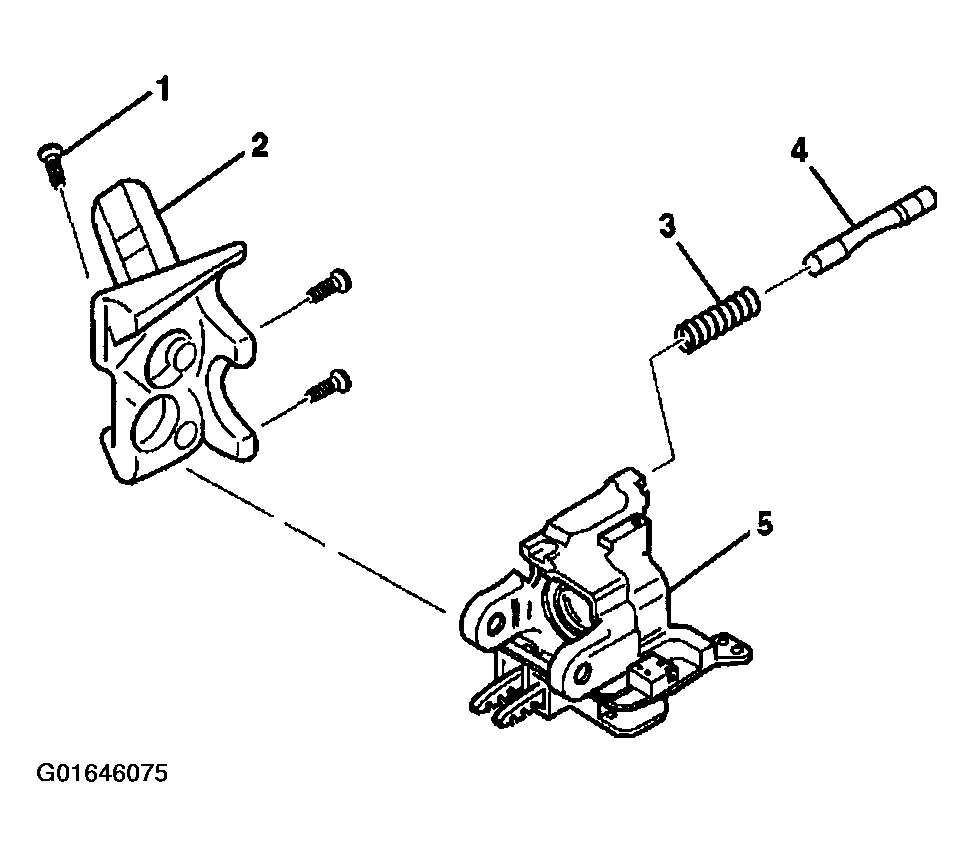

    Fig 1: Installing Ignition Lock Cylinder
    G01646075Courtesy of GENERAL MOTORS CORP.
  5. Align the ignition lock cylinder case (2) with the steering column tilt head assembly (5).
    NOTE:
  6. Screw the 3 pan head tapping screws (1) into the ignition lock cylinder case (2).

    Tighten

    Tighten the screws to 7 N.m (62 lb in).

    CAUTION:
  7. Place steering column lock cylinder set into the OFF position.
  8. Place the shift lever clevis into the PARK position.
  9. Press the locking tab on the end of the park lock cable assembly (1) into the slot in the ignition lock cylinder case.

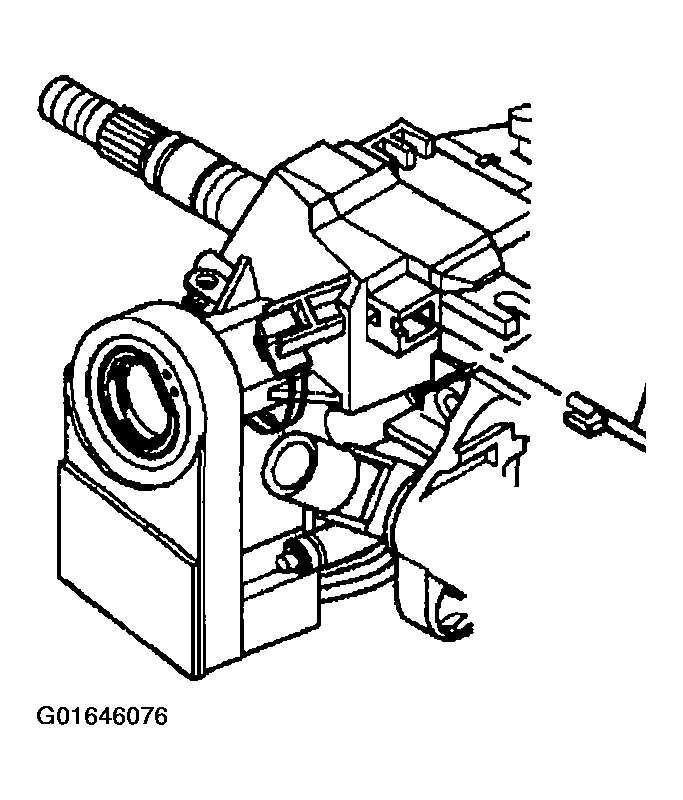

    Fig 2: Identifying Park Lock Cable Assembly
    G01646076Courtesy of GENERAL MOTORS CORP.
  10. Install the ignition switch only. Refer to IGNITION SWITCH REPLACEMENT  .
  11. Install the ignition lock cylinder. Refer to IGNITION LOCK CYLINDER REPLACEMENT  .
  12. Install the turn signal cancel cam. Refer to TURN SIGNAL CANCEL CAM AND UPPER BEARING THRUST WASHER  .
  13. Install the steering wheel to the steering column. Refer to STEERING WHEEL REPLACEMENT  .
  14. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
