Removal Procedure

CAUTION:
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  2. Remove the ignition lock cylinder. Refer to IGNITION LOCK CYLINDER REPLACEMENT  .
  3. Remove the steering column tilt head housing. Refer to STEERING COLUMN TILT HEAD HOUSING REPLACEMENT (TILT)  .
    Fig 1: Removing Park Lock Cable Assembly
    G01646077Courtesy of GENERAL MOTORS CORP.
  4. Remove the ignition switch only. Refer to IGNITION SWITCH REPLACEMENT  .
  5. Remove the park lock cable assembly (1) from the ignition lock cylinder case.
    1. 5.1. Place the lock cylinder in the OFF-LOCK position.
    2. 5.2. Place the shift lever clevis into the PARK position.
    3. 5.3. Insert a small screwdriver into the slot on the ignition lock cylinder case. Push against the locking tab on the end of the park lock cable assembly (1).
    4. 5.4. Disconnect the park lock cable assembly (1) from the ignition lock cylinder case.
  6. Remove the 3 pan head tapping screws (2) from the ignition lock cylinder case (1).
  7. Remove the ignition lock cylinder case (1) from the steering column housing assembly.

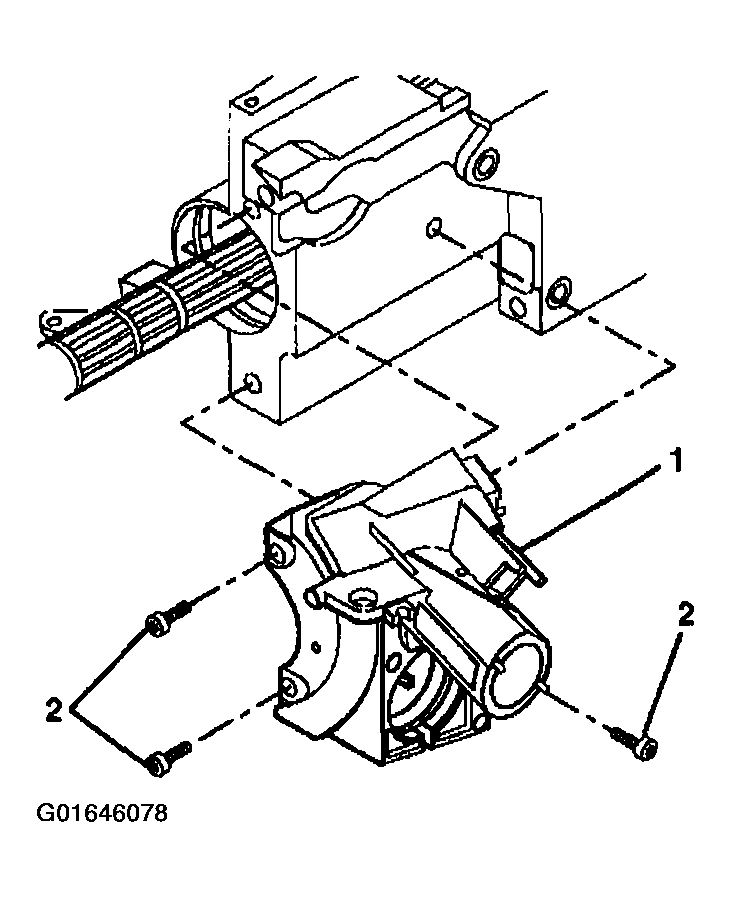

    Fig 2: Removing Ignition Lock Cylinder Case
    G01646078Courtesy of GENERAL MOTORS CORP.
