Installation Procedure

Install the ignition lock cylinder case (1) onto the steering column housing assembly.
NOTE:
Screw the 3 pan head tapping screws (2) into the ignition lock cylinder case.
Tighten

Tighten the pan head tapping screws to 7 N.m (62 lb in).

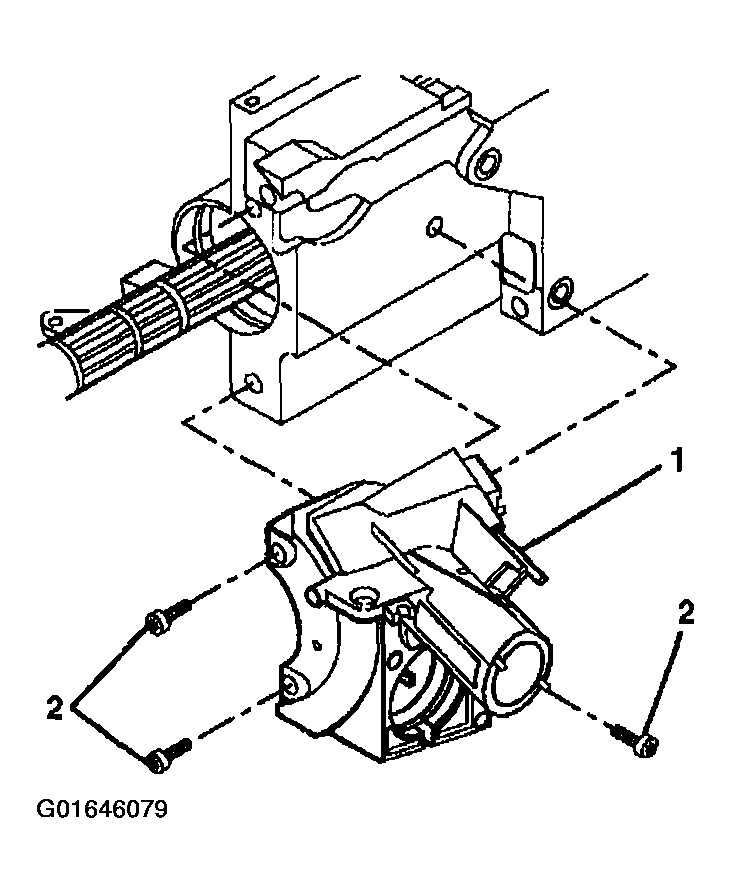

Fig 1: Installing Ignition Lock Cylinder Case
Courtesy of GENERAL MOTORS CORP.

CAUTION:
Connect the park lock cable assembly (1).
- Place the lock cylinder in the OFF-LOCK position.
- Place the gear shift lever clevis into the PARK position.
- Press the locking tab on the end of the park lock cable assembly (1) into the slot in the ignition lock cylinder case.

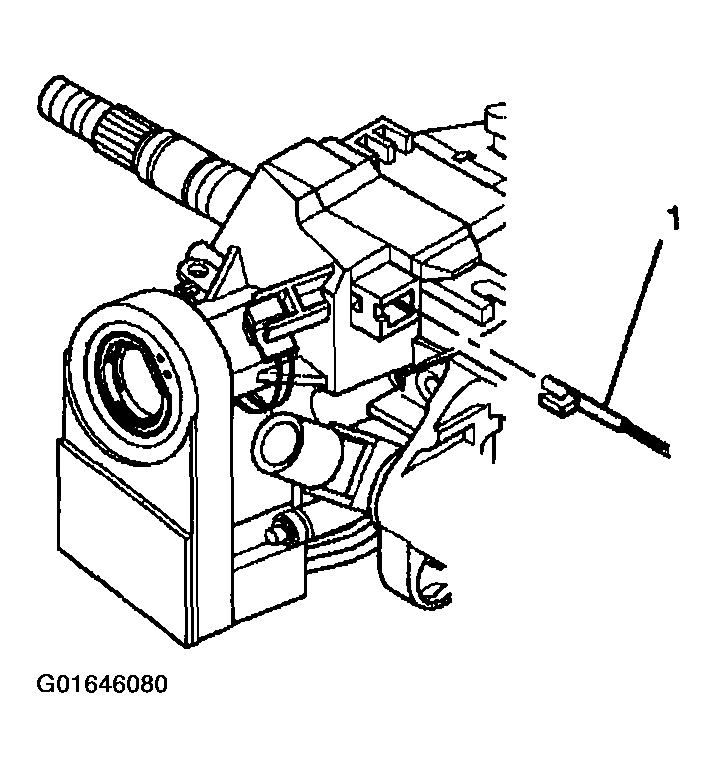

Fig 2: Connecting Park Lock Cable Assembly
Courtesy of GENERAL MOTORS CORP.
Install the ignition switch. Refer to IGNITION SWITCH REPLACEMENT .
Install the steering column tilt head housing. Refer to STEERING COLUMN TILT HEAD HOUSING REPLACEMENT (TILT) .
Install the ignition lock cylinder. REFER TO IGNITION LOCK CYLINDER REPLACEMENT .
Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
