Removal Procedure

CAUTION:
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  2. Remove the steering wheel inflator module. Refer to SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM in SIR.
  3. Remove the horn plunger contact from the steering wheel.
  4. Remove the horn switch to steering wheel mounting screws.
  5. Remove the horn switch.

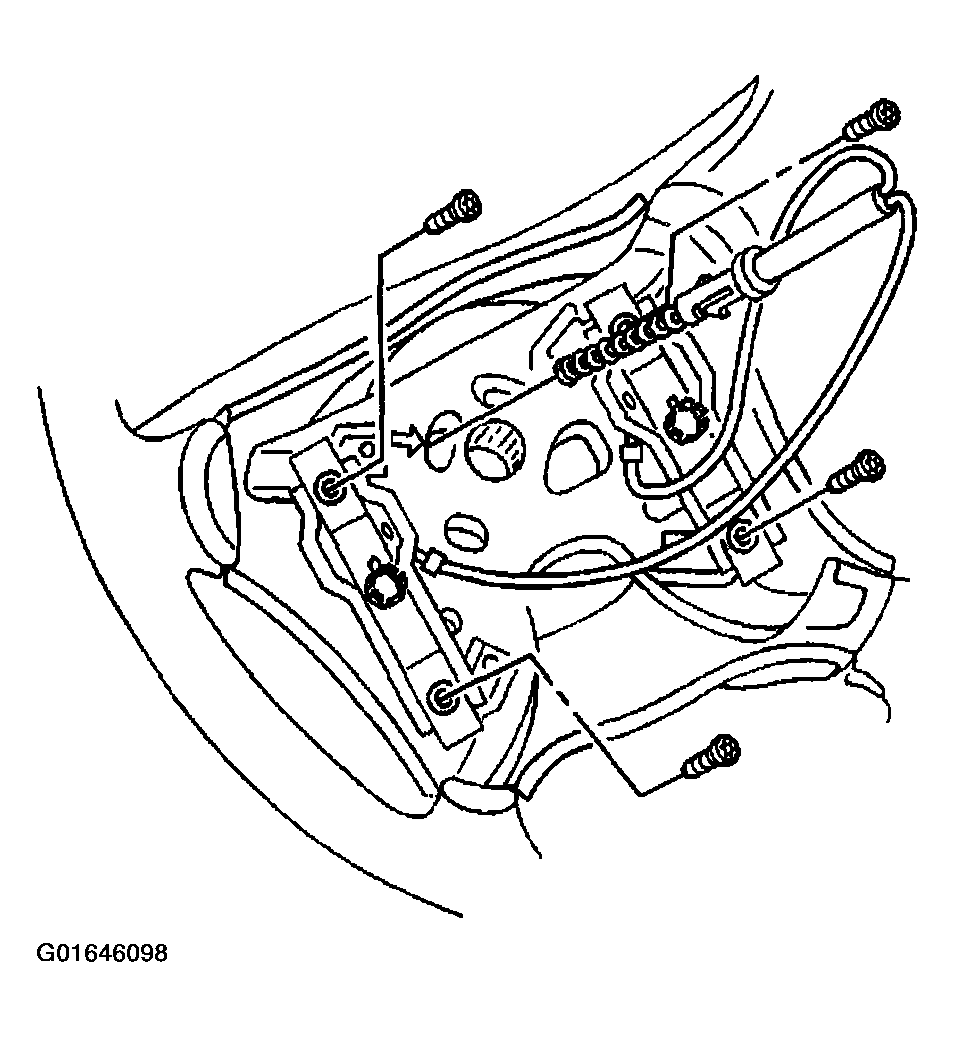

    Fig 1: Removing Horn Switch To Steering Wheel Mounting Screws
    G01646098Courtesy of GENERAL MOTORS CORP.
