Installation Procedure

  1. Install the horn switch to the steering wheel.
    NOTE:

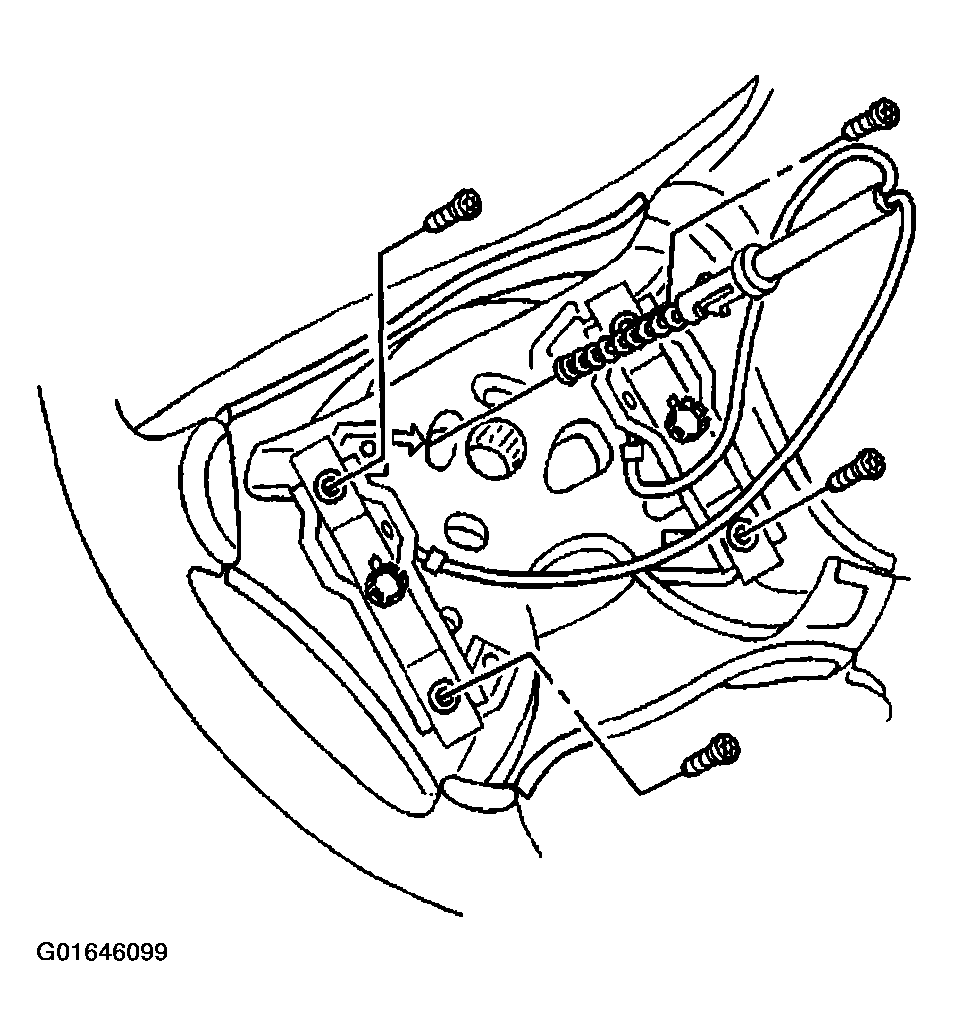

    Fig 1: Installing Horn Switch To Steering Wheel Mounting Screws
    G01646099Courtesy of GENERAL MOTORS CORP.
  2. Install the horn switch to the steering wheel with mounting screws.

    Tighten

    Tighten the screws to 5.5 N.m (50 lb in).

  3. Install the horn plunger contact to the cam tower in the steering wheel.
  4. Install the steering wheel inflator module to the steering wheel. Refer to SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM in SIR.
  5. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
