Zone 1

  1. Turn steering wheel to place vehicle front wheels in straight-ahead position. Turn ignition switch to LOCK position and remove key.
  2. Remove AIR BAG fuse (10-amp) from instrument panel fuse block, located behind left side of instrument panel. Remove Connector Position Assurance (CPA) clip from front end discriminating sensor connector. See Fig 1. Disconnect front end discriminating sensor connector.

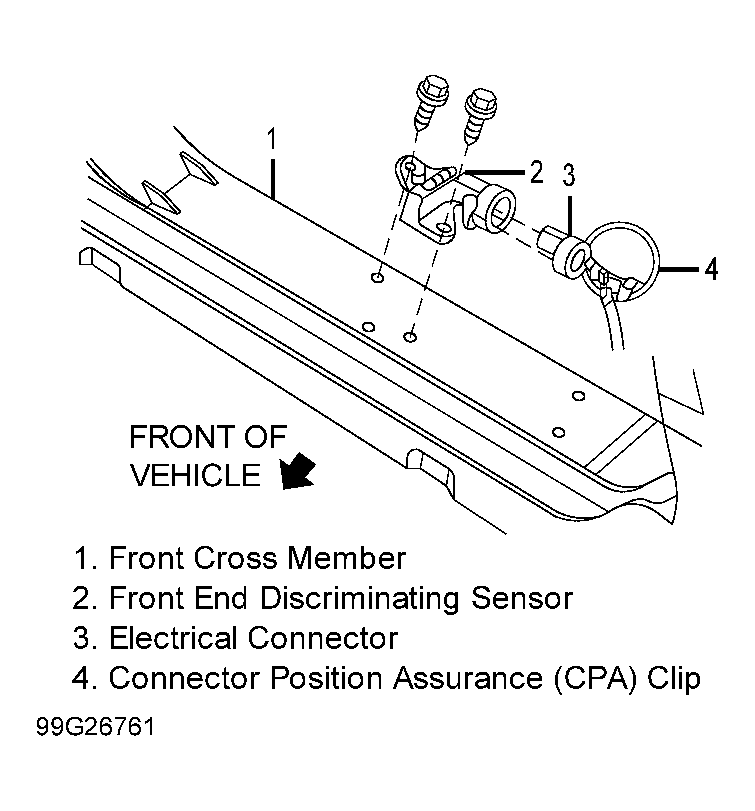

Fig 1: Identifying Front End Discriminating Sensor
G99G26761Courtesy of GENERAL MOTORS CORP.
