Removal Procedure

Tools Required

J 34992  Compressor Holding Fixture. See Special Tools and Equipment .

  1. Install the compressor onto the J 34992.
  2. Remove the pressure relief valve (5) from the rear head of the compressor.

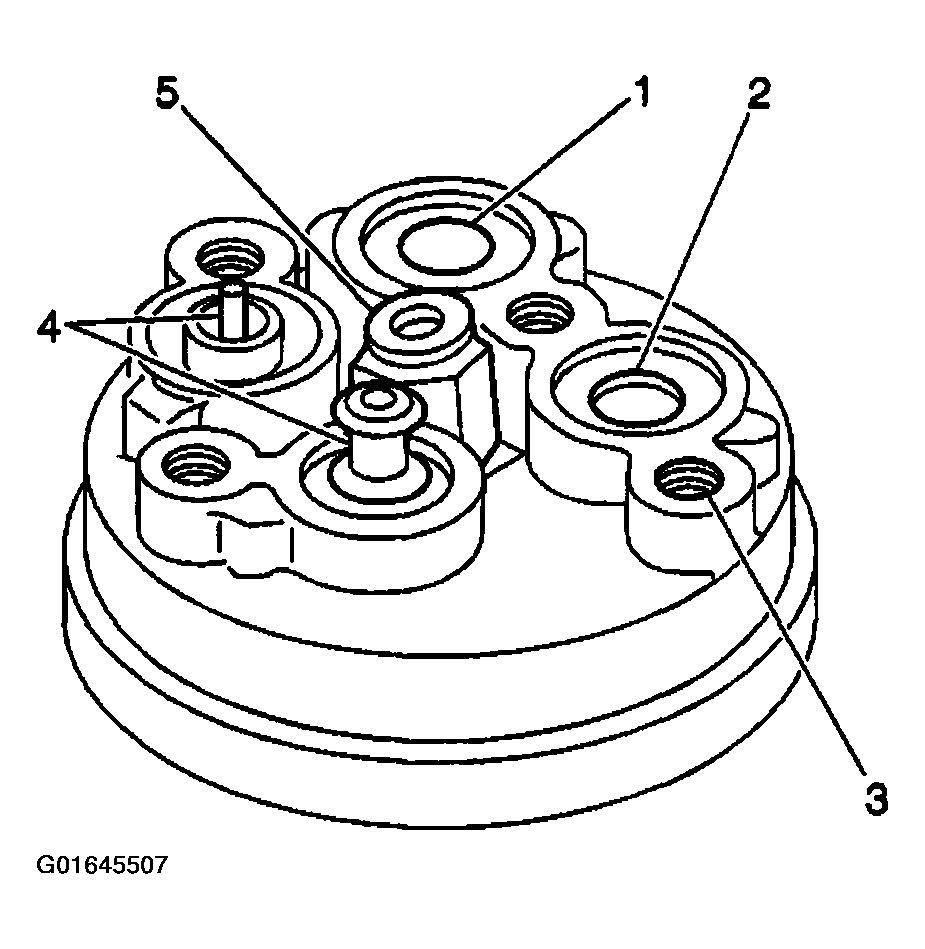

    Fig 1: Removing Compressor Pressure Relief Valve
    G01645507Courtesy of GENERAL MOTORS CORP.
