Special Tools and Equipment

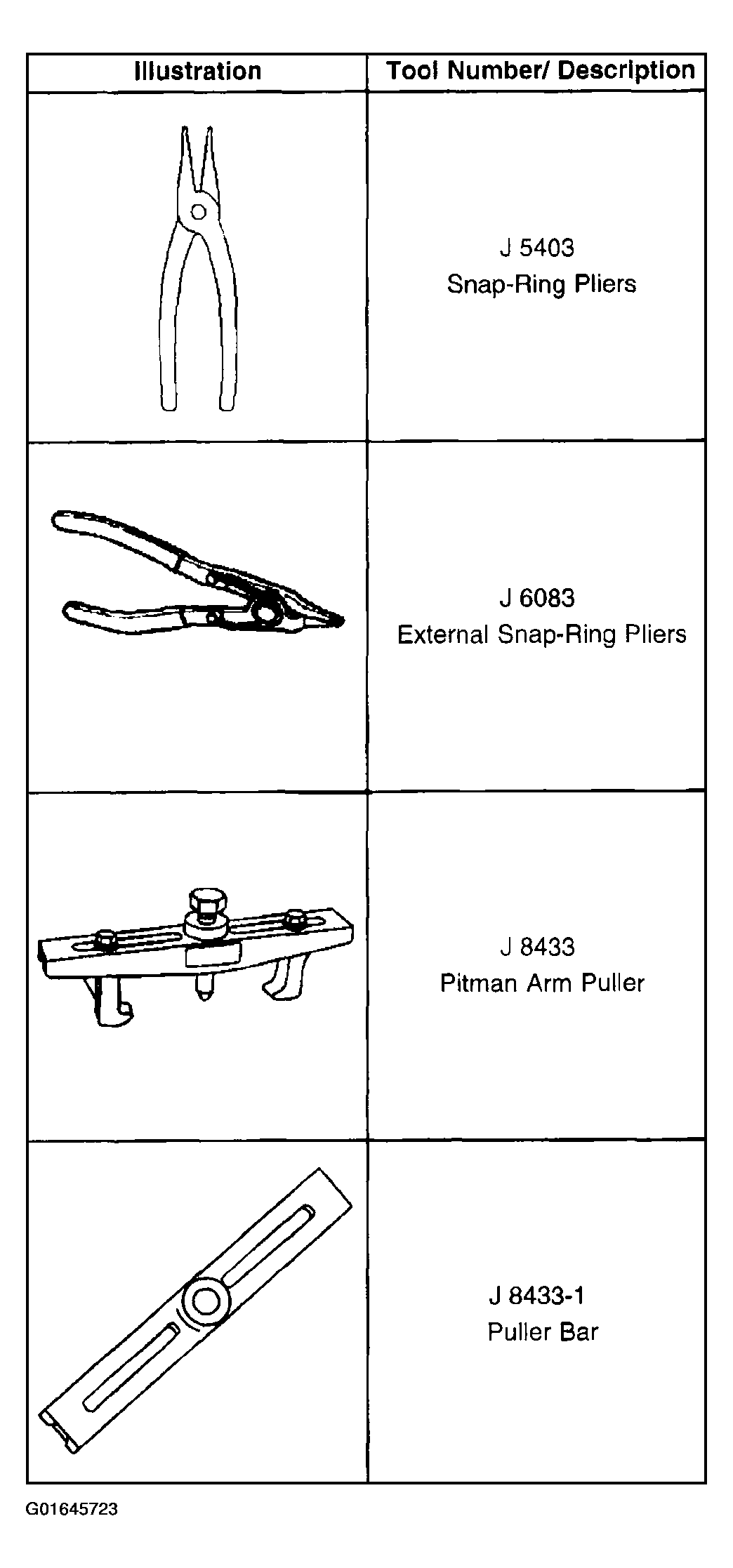

Fig 1: Special Tools & Equipment (1 Of 8)
G01645723Courtesy of GENERAL MOTORS CORP.
Fig 2: Special Tools & Equipment (2 Of 8)
G01645724Courtesy of GENERAL MOTORS CORP.
Fig 3: Special Tools & Equipment (3 Of 8)
G01645725Courtesy of GENERAL MOTORS CORP.
Fig 4: Special Tools & Equipment (4 Of 8)
G01645726Courtesy of GENERAL MOTORS CORP.
Fig 5: Special Tools & Equipment (5 Of 8)
G01645727Courtesy of GENERAL MOTORS CORP.
Fig 6: Special Tools & Equipment (6 Of 8)
G01645728Courtesy of GENERAL MOTORS CORP.
Fig 7: Special Tools & Equipment (7 Of 8)
G01645729Courtesy of GENERAL MOTORS CORP.

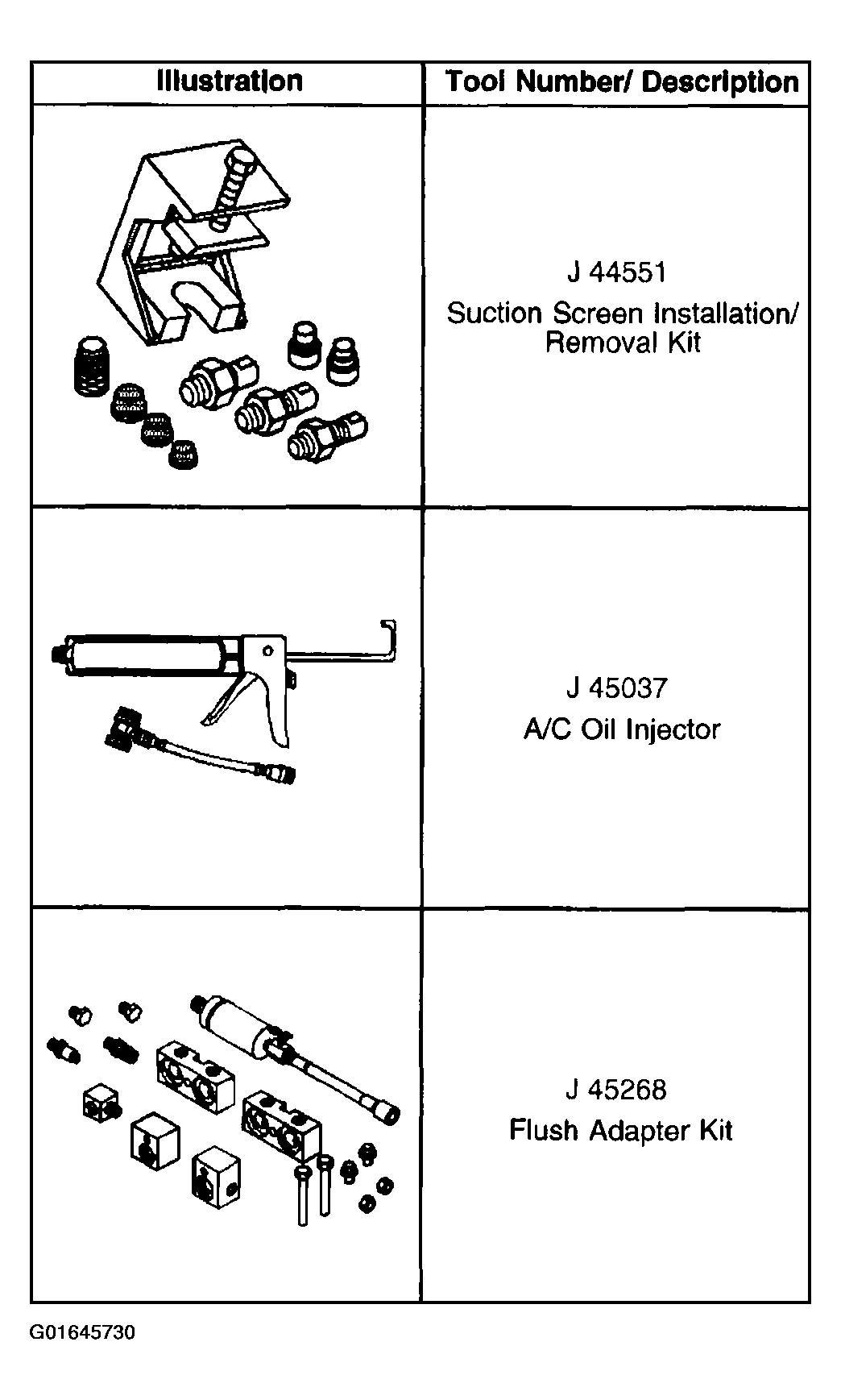

Fig 8: Special Tools & Equipment (8 Of 8)
G01645730Courtesy of GENERAL MOTORS CORP.
