Installation Procedure

Tools Required

J 43600  ACR 2000 Air Conditioning Service Center. See Special Tools and Equipment .

  1. Clean the valve seat area on the rear head.
  2. Lubricate the O-ring of the new pressure relief valve (5) and the O-ring assembly using new 525 viscosity refrigerant oil.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the new pressure relief valve (5).

    Tighten

    Tighten the new valve to 9.0 N.m (6.1 lb ft).

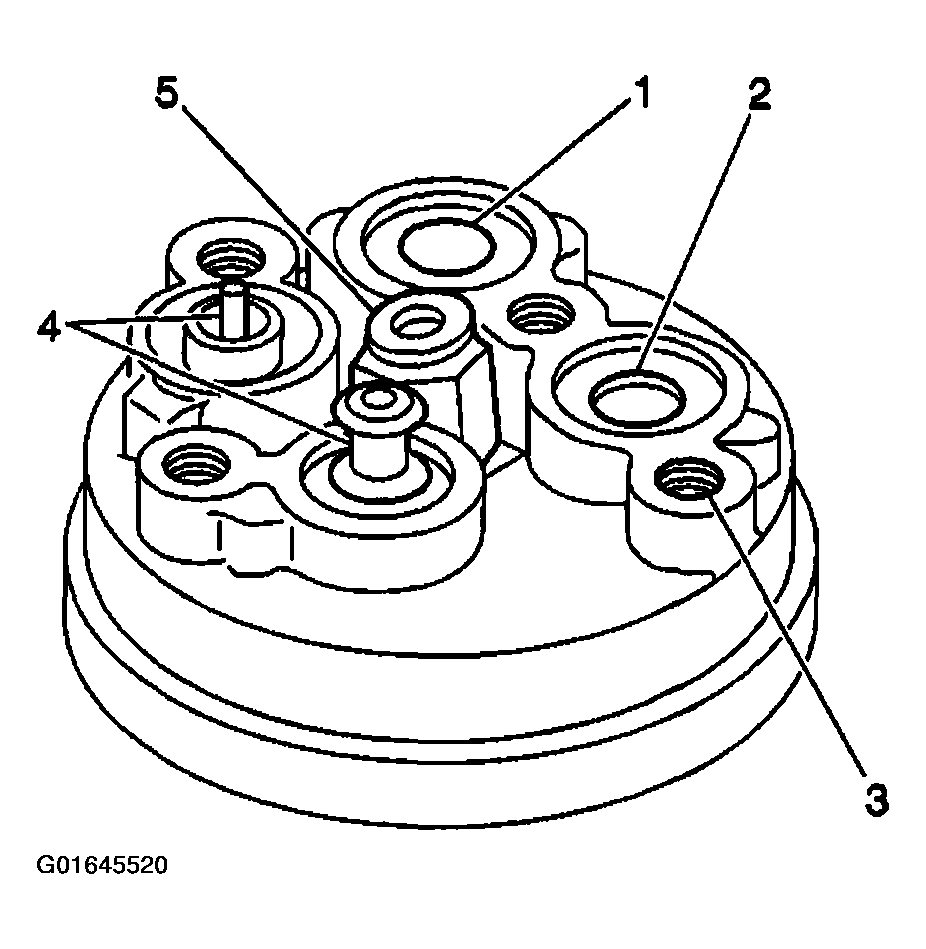

    Fig 1: Installing Compressor Pressure Relief Valve
    G01645520Courtesy of GENERAL MOTORS CORP.
  4. Evacuate and recharge the system using the J 39500-B.
  5. Leak test the system.
