Installation Procedure

Tools Required

• J 6083  Snap Ring Pliers. See Special Tools and Equipment .
• J 33023-A  Puller Pilot. See Special Tools and Equipment .
• J 41552  Pulley Puller. See Special Tools and Equipment .
• J 29886  Driver Handle. See Special Tools and Equipment .
• J 21352-A  Support Block. See Special Tools and Equipment .
• J 9481-A  Bearing Installer. See Special Tools and Equipment .
• J 33019  Bearing Staking Tool. See Special Tools and Equipment .
• J 33017  Pulley and Bearing Assembly Installer. See Special Tools and Equipment .
• J 8433-1  Puller Bar. See Special Tools and Equipment .
• J 9398-A  Bearing Remover. See Special Tools and Equipment .
• J 34992  Holding Fixture. See Special Tools and Equipment .

1. Place the pulley rotor on the J 21352-A  in order to fully support the rotor hub during bearing installation.
2. Use the following tools in order to align the new bearing squarely with the hub bore:
   • The J 41552
   • The J 9481-A
   • The J 29886

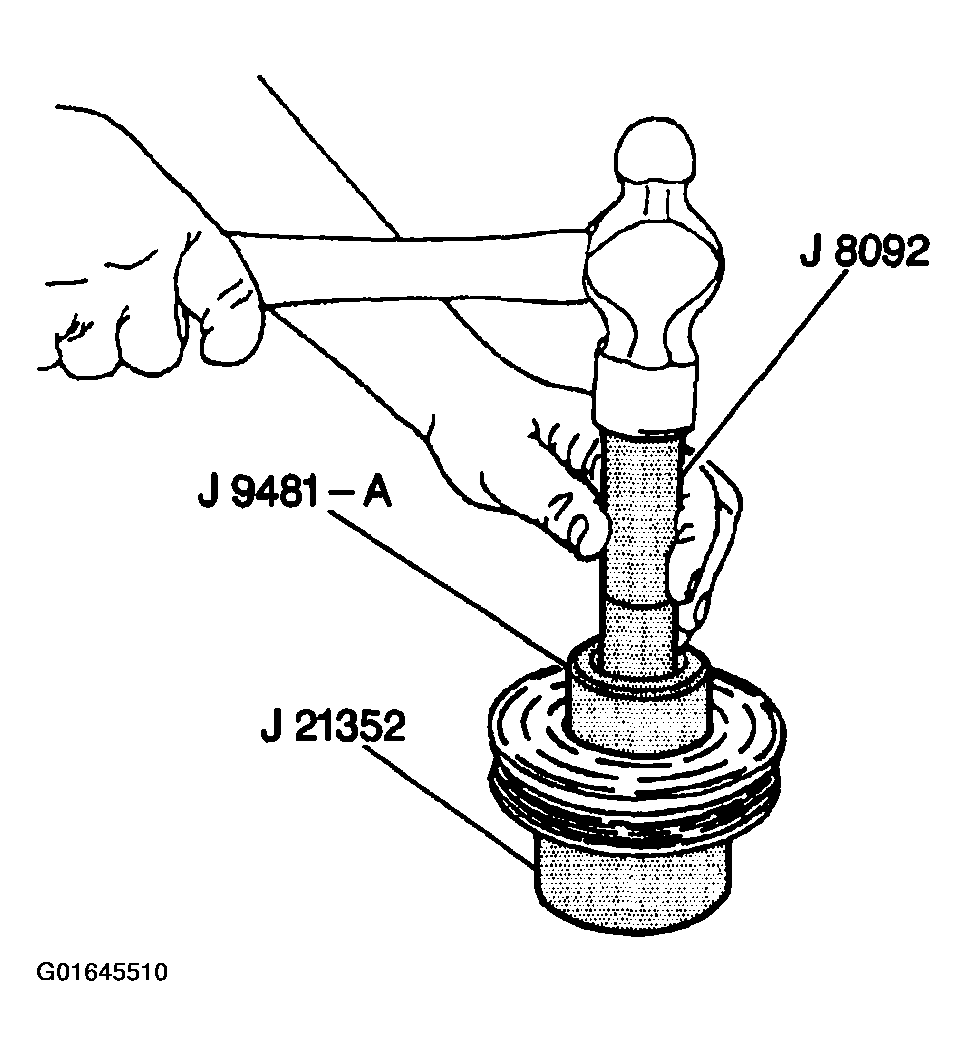

   Fig 1: Installing Clutch Rotor And/Or Bearing
   Courtesy of GENERAL MOTORS CORP.
3. Drive the bearing fully into the hub.

   The installer will apply force to the outer race of the bearing, if used as shown.

4. Place the J 33019  in the hub bore.

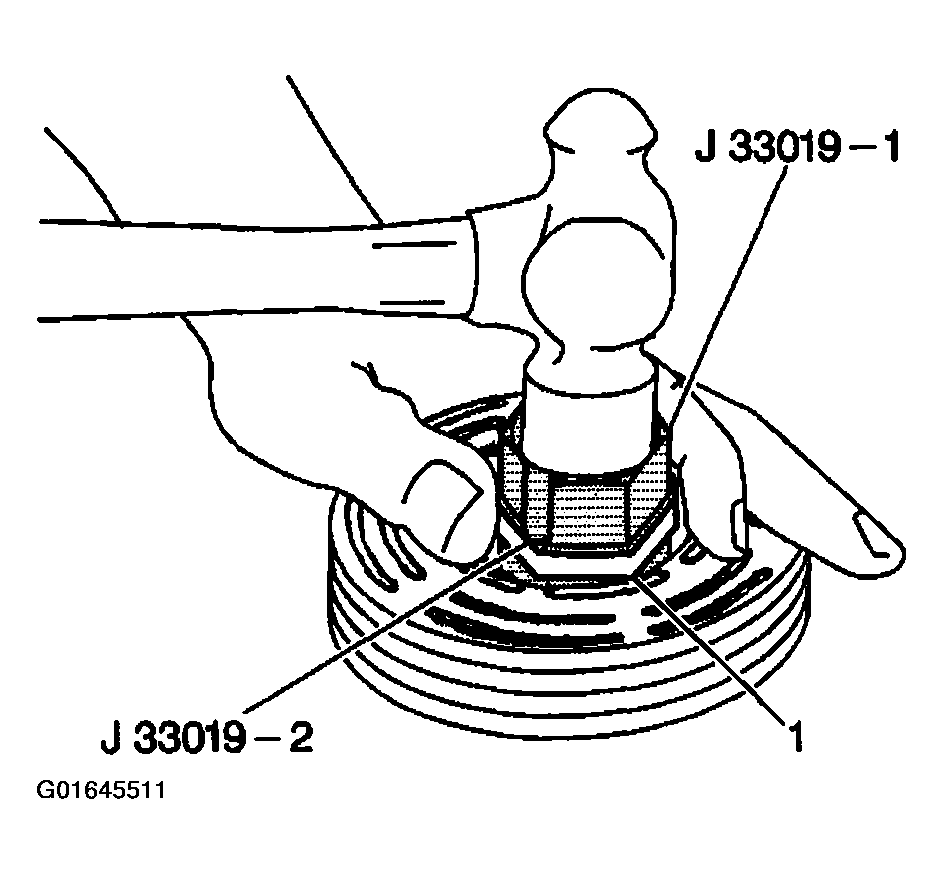

   Fig 2: Identifying J 33019

   Courtesy of GENERAL MOTORS CORP.
5. Shift the rotor and bearing assembly on the J 21352-A  in order to fully support the hub under the staking pin location.

   Use a heavy-duty rubber band (1) in order to hold the stake pin in the guide. Properly position the stake pin in the guide after each impact on the pin.

   Important:  Use care in order to prevent personal injury when striking the staking pin with a hammer.

6. Strike the staking pin with a hammer until a metal stake, similar to the original, forms down to but not touching the bearing.

   Important:  Noisy bearing operation and reduced bearing life may result if the outer bearing race is deformed while staking. Ensure that the stake metal does not contact the outer race of the bearing.

7. Stake 3 locations on the bearing race 120 degrees apart as shown.

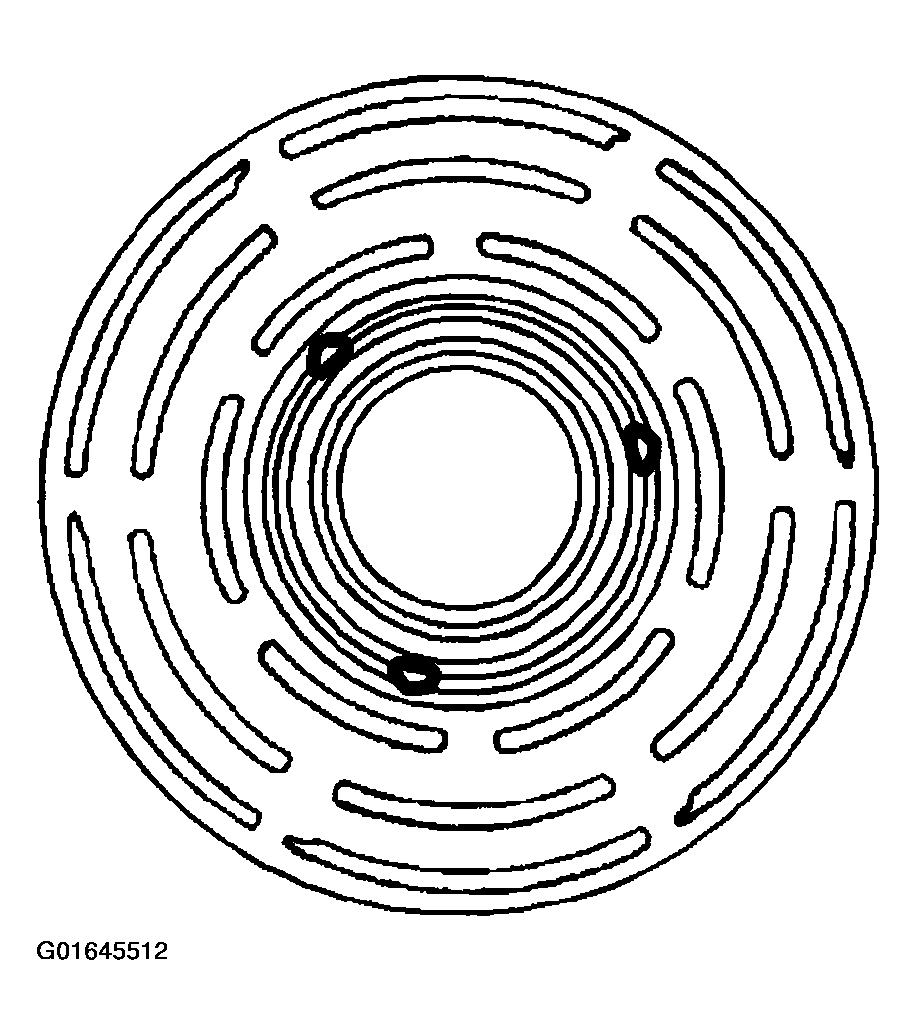

   Fig 3: Identifying Stake Locations On Bearing Race

   Courtesy of GENERAL MOTORS CORP.
8. With the compressor mounted on the J 34992,  position the pulley rotor (1) and the bearing assembly on the front head.
9. Position the J 33017  and the J 33023-A  directly over the inner race of the bearing.
10. Position the J 8433-1  on the J 33023-A.
11. Assemble the 2 through bolts and the washers through the puller bar slots.
12. Thread the through bolts into the J 34992.

    Ensure that the thread of the through bolts engage the full thickness of the J 34992.

13. Tighten the center screw in the J 8433-1  in order to force the pulley rotor and bearing assembly onto the compressor front head.

    If the J 33017  slips off direct in-line contact with the inner race of the bearing, perform the following steps:

    1. 13.1. Loosen the J 8433-3.
    2. 13.2. Realign the installer and the pilot in order to ensure that the J 33017  properly clears the front head.

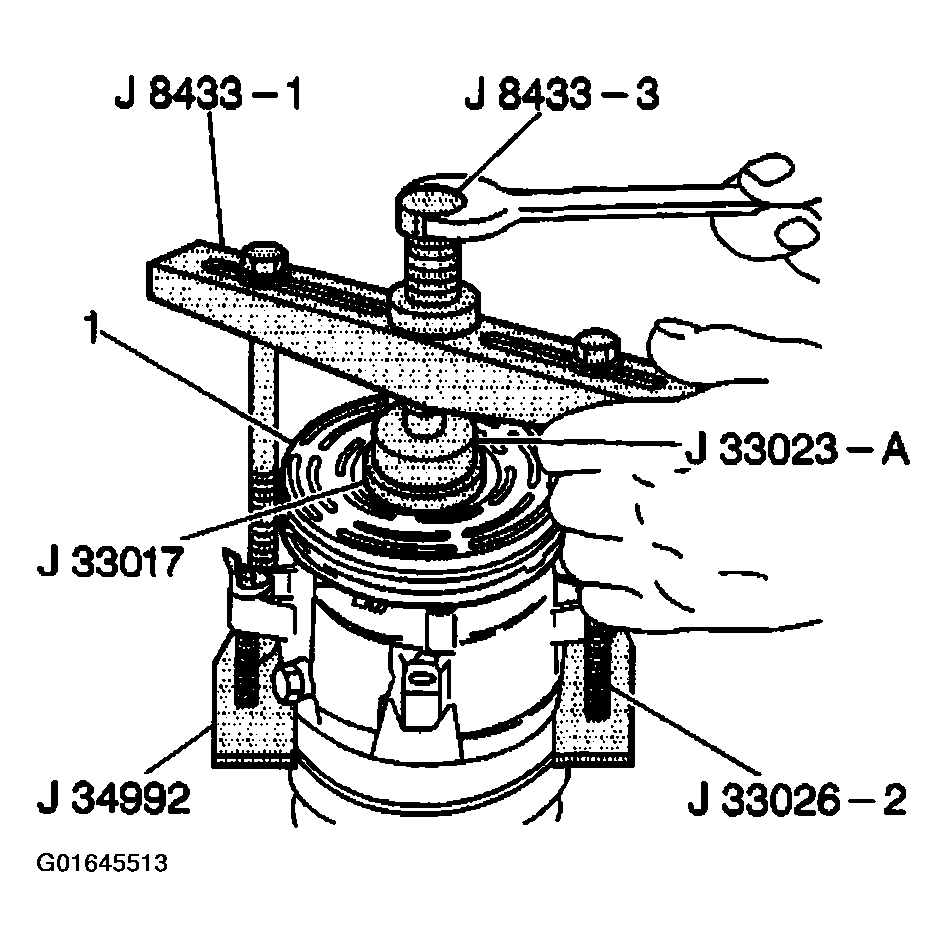

    Fig 4: View Of J 8433-1 & J 33017

    Courtesy of GENERAL MOTORS CORP.
14. Use the snap ring pliers in order to install the following components:
    1. 14.1. The pulley rotor (1)
    2. 14.2. The retaining ring (2)

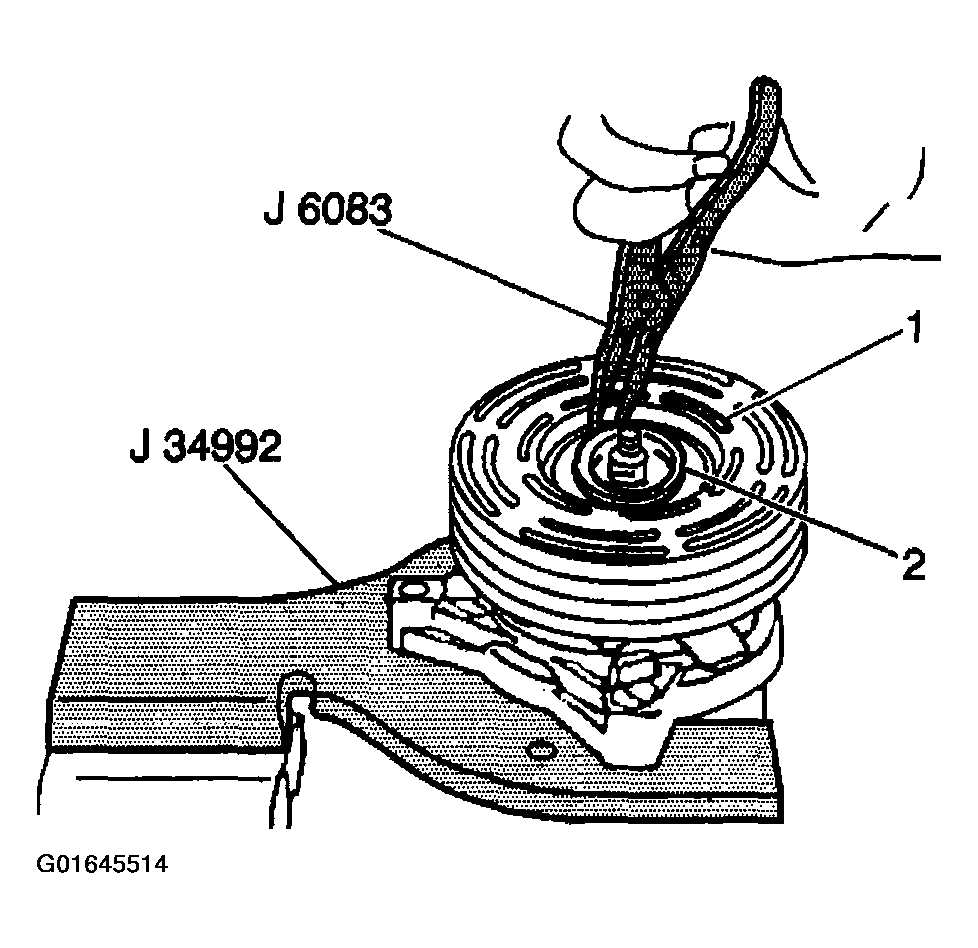

       Fig 5: Installing Pulley Rotor & Retaining Ring

       Courtesy of GENERAL MOTORS CORP.
    3. 14.3. Install the clutch plate and hub assembly. Refer to COMPRESSOR CLUTCH PLATE/HUB ASSEMBLY INSTALL .
