Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a NEW seal to the indicator tube.
  2. Install the oil level indicator tube.

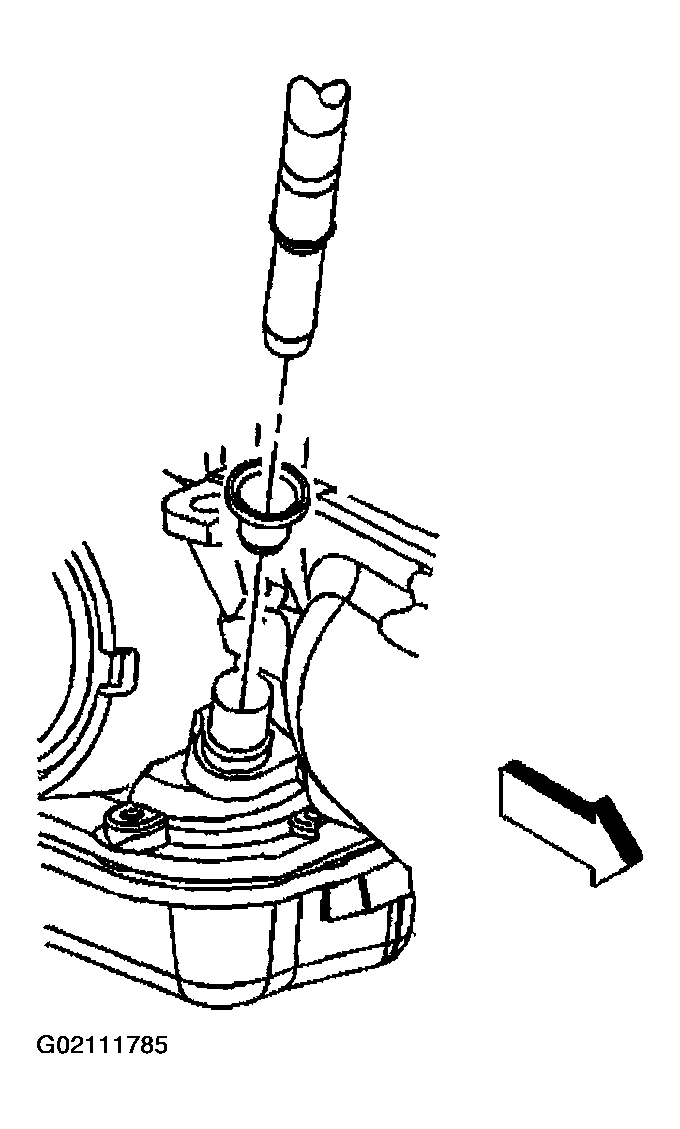

    Fig 1: Installing Seal & Oil Level Indicator Tube
    G02111785Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the indicator tube nut.

    Tighten

    Tighten the nut to 18 N.m (13 lb ft).

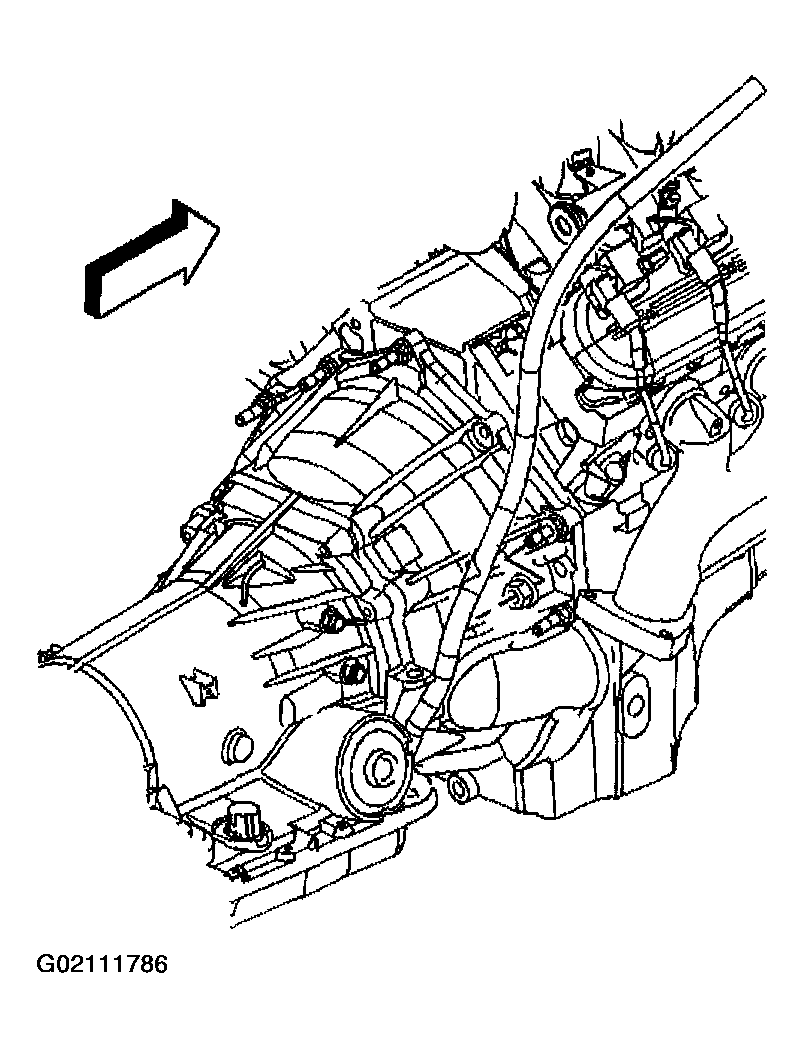

    Fig 2: Installing Indicator Tube Nut
    G02111786Courtesy of GENERAL MOTORS CORP.
  4. Remove the plugs from the transmission oil cooler line fittings.
  5. Connect the transmission oil cooler lines. Refer to TRANSMISSION OIL COOLER LINE QUICK CONNECT FITTING .

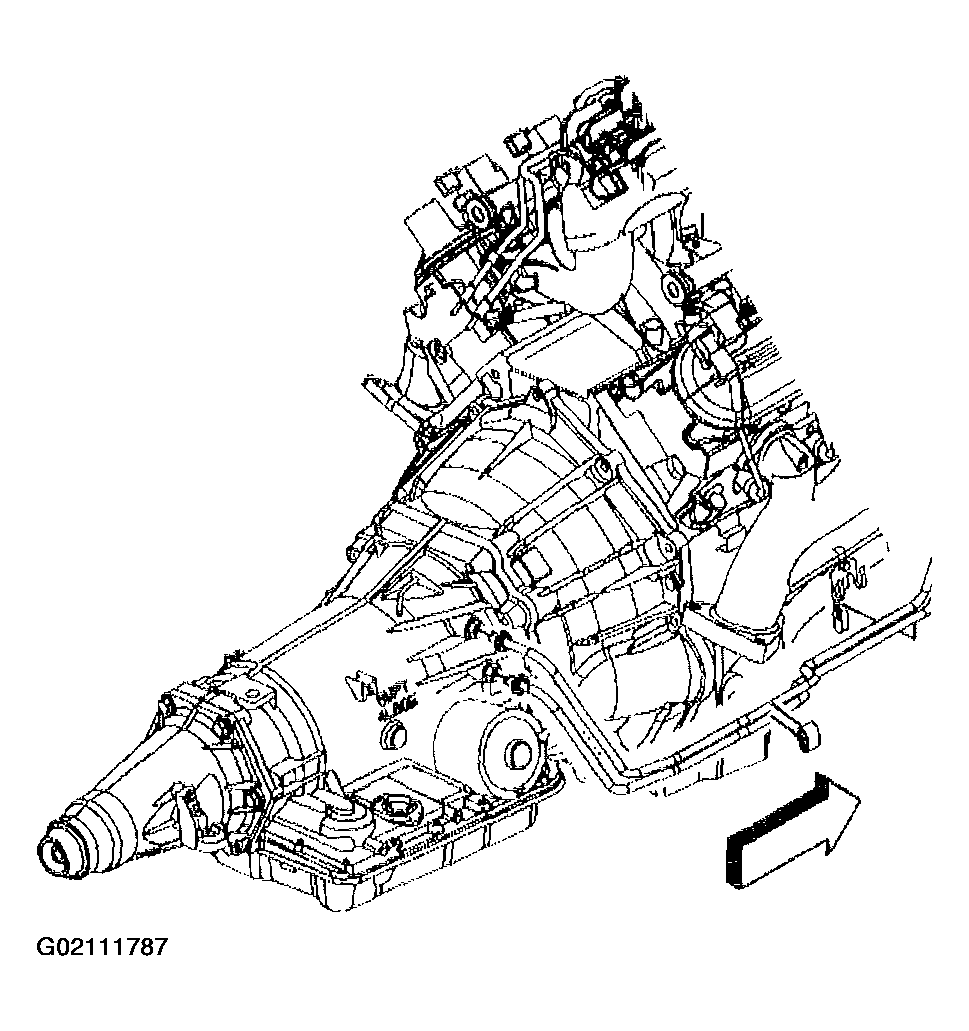

    Fig 3: Connecting Transmission Oil Cooler Lines
    G02111787Courtesy of GENERAL MOTORS CORP.
  6. Install the exhaust pipe hanger bracket and bolts.

    Tighten

    Tighten the bolts to 17 N.m (12 lb ft).

  7. Instal the insulator and nuts to the bracket.

    Tighten

    Tighten the nuts to 17 N.m (12 lb ft).

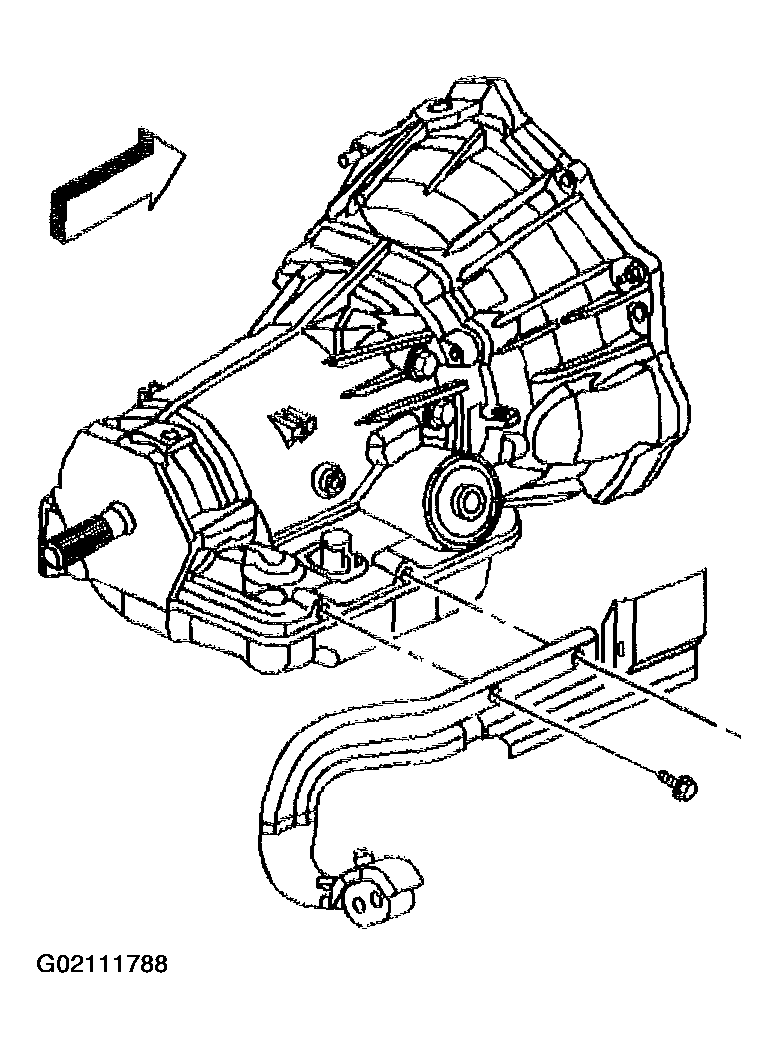

    Fig 4: Installing Exhaust Pipe Hanger Bracket & Bolts
    G02111788Courtesy of GENERAL MOTORS CORP.
  8. Tighten the right exhaust pipe nuts.

    Tighten

    Tighten the nuts to 50 N.m (37 lb ft).

    Fig 5: Tightening Right Exhaust Pipe & Nuts
    G02111789Courtesy of GENERAL MOTORS CORP.
  9. Tighten the left exhaust pipe nuts.

    Tighten

    Tighten the nuts to 50 N.m (37 lb ft).

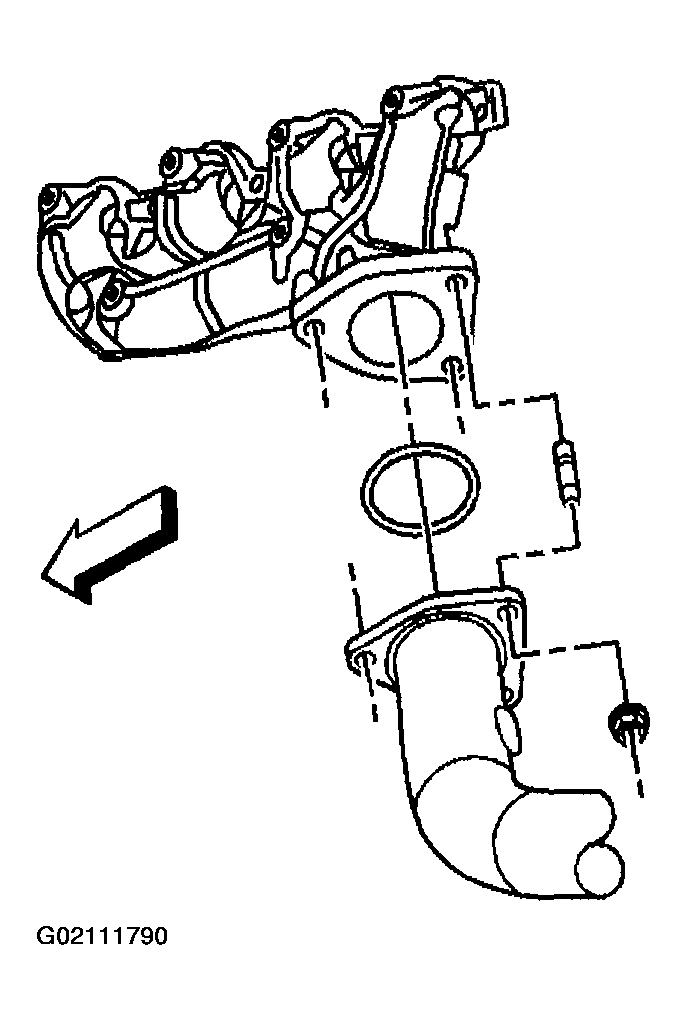

    Fig 6: Tightening Left Exhaust Pipe & Nuts
    G02111790Courtesy of GENERAL MOTORS CORP.
  10. Install the transmission crossmember.
  11. Install the transmission crossmember bolts/nuts.

    Tighten

    Tighten the bolts/nuts to 95 N.m (70 lb ft).

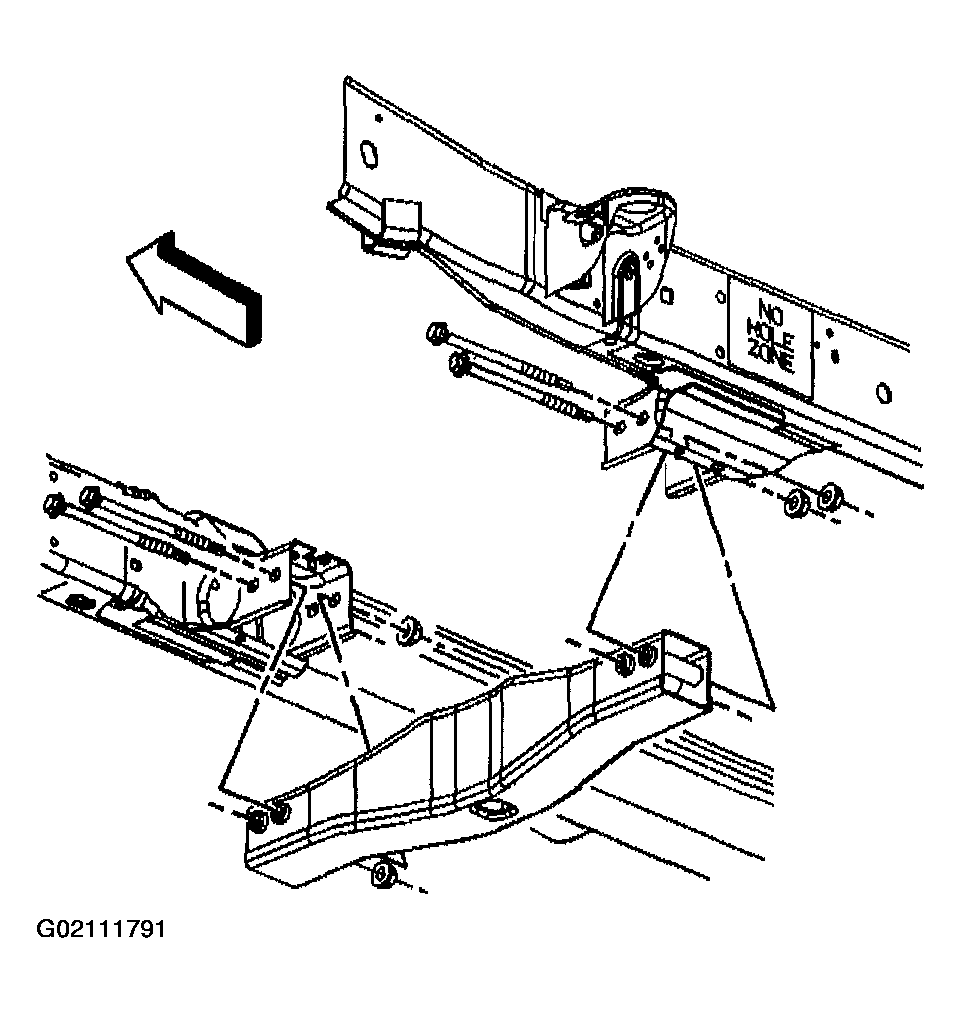

    Fig 7: Installing Transmission Crossmember & Bolts/Nuts
    G02111791Courtesy of GENERAL MOTORS CORP.
  12. Install the transmission mount nut.

    Tighten

    Tighten the nut to 50 N.m (37 lb ft).

  13. Remove the support from the transmission.
  14. Lower the vehicle.
  15. Install the transmission oil level indicator.
  16. Fill the transmission to the proper level with DEXRON® III transmission fluid. Refer to TRANSMISSION FLUID CHECKING PROCEDURE  .

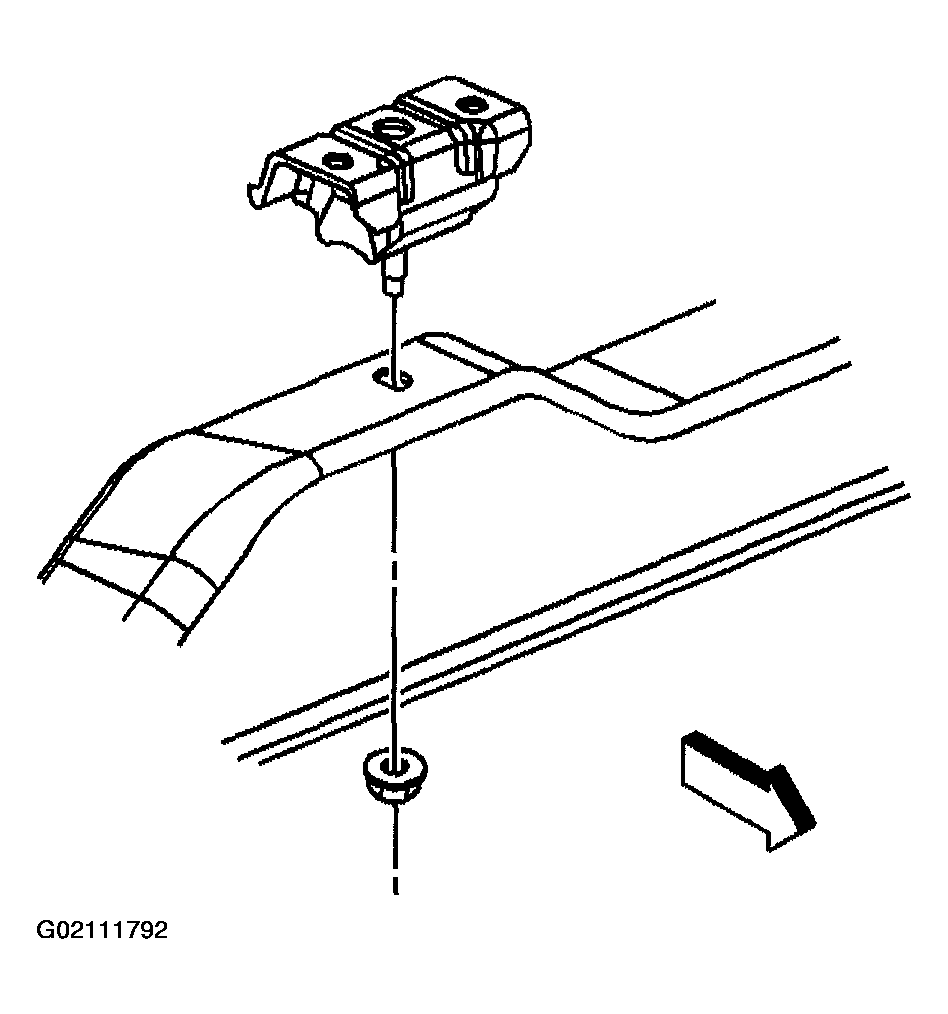

    Fig 8: Installing Transmission Mount Nut
    G02111792Courtesy of GENERAL MOTORS CORP.
