Transmission Fluid Checking Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start the engine and operate the vehicle for 15 minutes or until the transmission fluid reaches an operating temperature of 82-93°C (180-200°F).
  2. Park the vehicle on a level surface.
  3. With your foot on the brake, move the shift lever through each gear range. Pause for about 3 seconds in each range, ending in PARK.
  4. Apply the parking brake and let the engine idle for 3 minutes.
  5. Remove the transmission fluid level indicator. Wipe the indicator clean. Insert the indicator. Give the indicator a full twist in order to close.
  6. Wait 3 seconds and remove the indicator.
  7. Read both sides of the indicator. The fluid must be within the hot cross-hatched area using the lowest level reading.

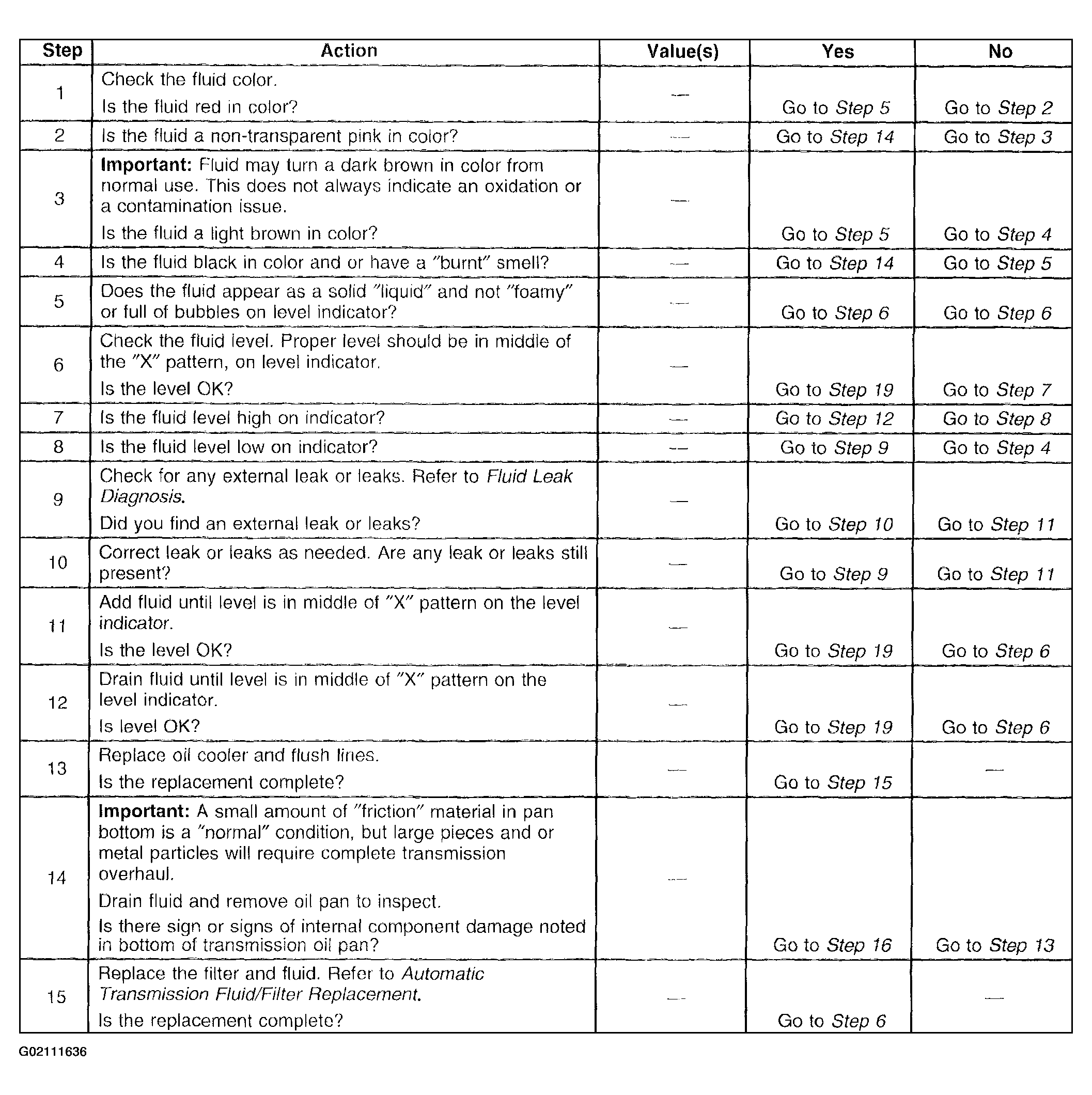

    Fig 1: Diagnostic System Check Transmission Fluid Checking Procedure Table (Step 1-15)
    G02111636Courtesy of GENERAL MOTORS CORP.

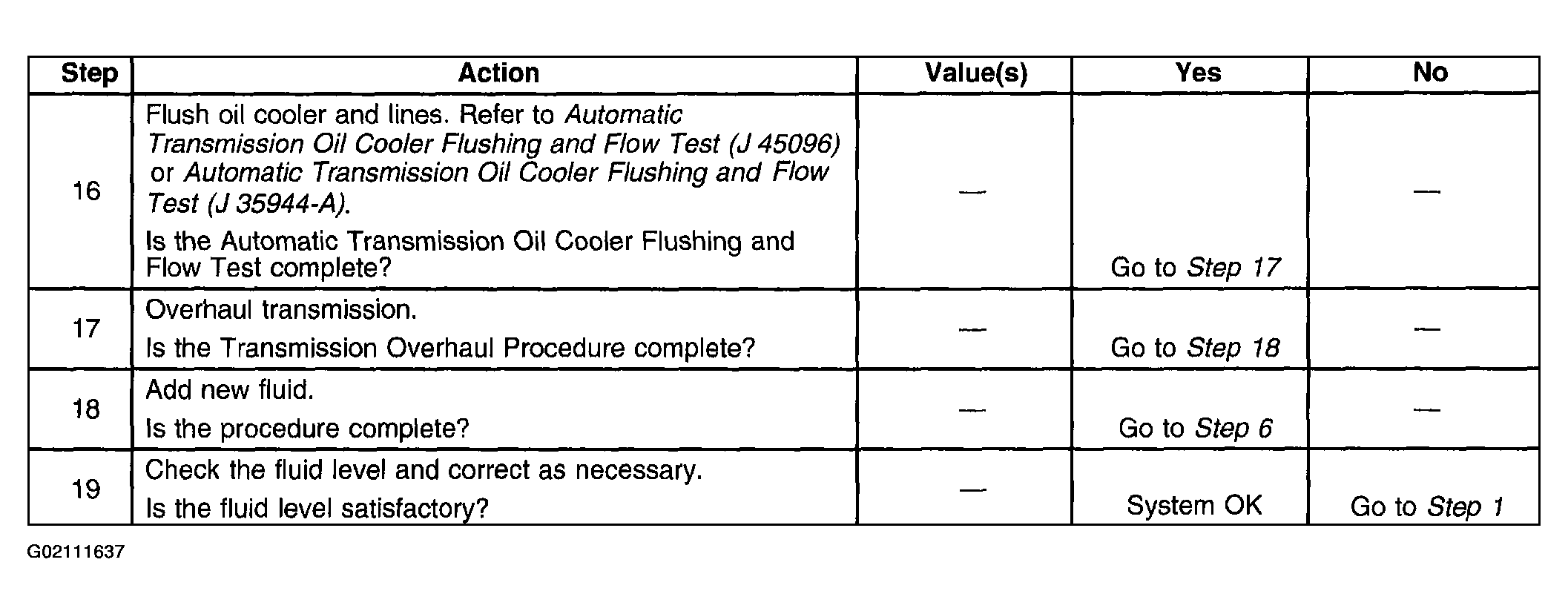

    Fig 2: Diagnostic System Check Transmission Fluid Checking Procedure Table (Step 16-19)
    G02111637Courtesy of GENERAL MOTORS CORP.
