Steering Column Trim Covers - Disassemble - Off Vehicle

Tools Required

J 41352  Steering Column Holding Fixture

1. Disable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .

   Important:  Put the steering column in the CENTER position.

2. Remove the tilt lever. Refer to Shift Lever Replacement - On Vehicle  .
3. Remove the steering wheel from the steering column. Refer to Steering Wheel Replacement  .
4. Remove the steering column from the vehicle. Refer to Steering Column Replacement  .
5. Secure the steering column to J 41352  .

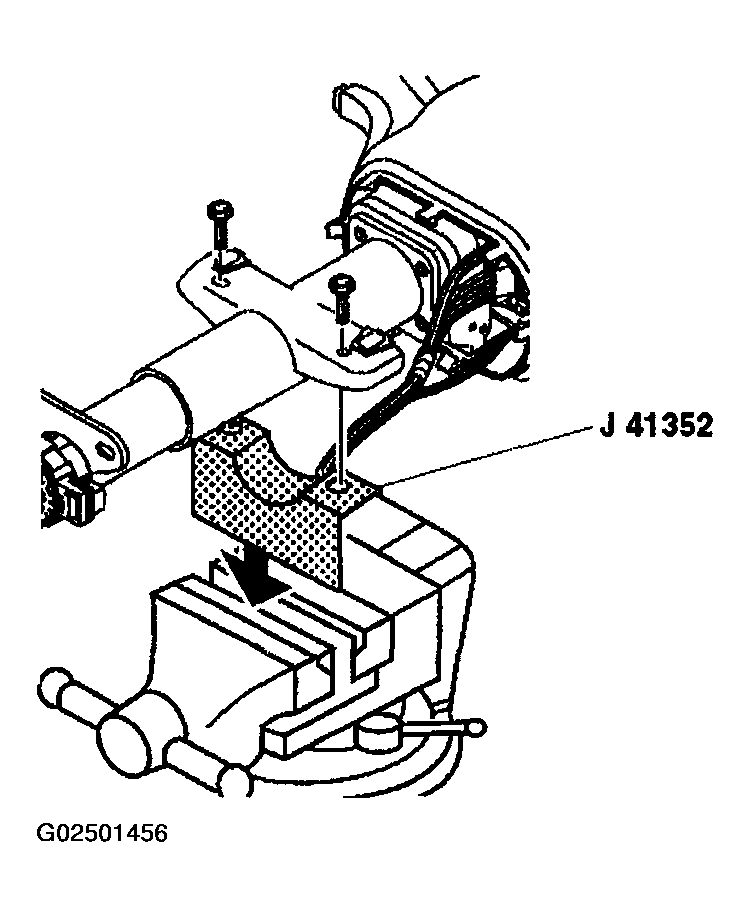

Fig 1: Securing Steering Column To Steering Column Holding Fixture
Courtesy of GENERAL MOTORS CORP.
6. Inspect the steering column for accident damage. Refer to Steering Column Accident Damage Inspection - Off Vehicle  .
7. Remove the 2 pan head tapping screws (2) from the lower trim cover (1).
8. Remove the lower trim cover (1).

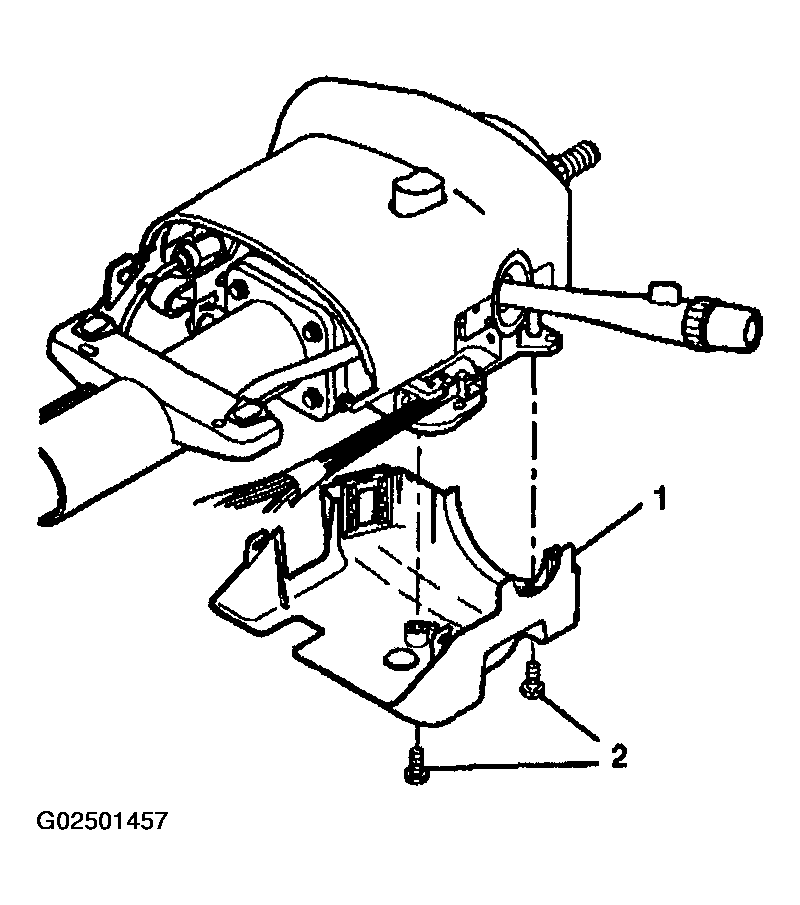

   Fig 2: Identifying Lower Trim Cover

   Courtesy of GENERAL MOTORS CORP.
9. Remove the TORX(tm) head screw (1) from the upper trim cover (2).
10. Remove the upper trim cover (2).

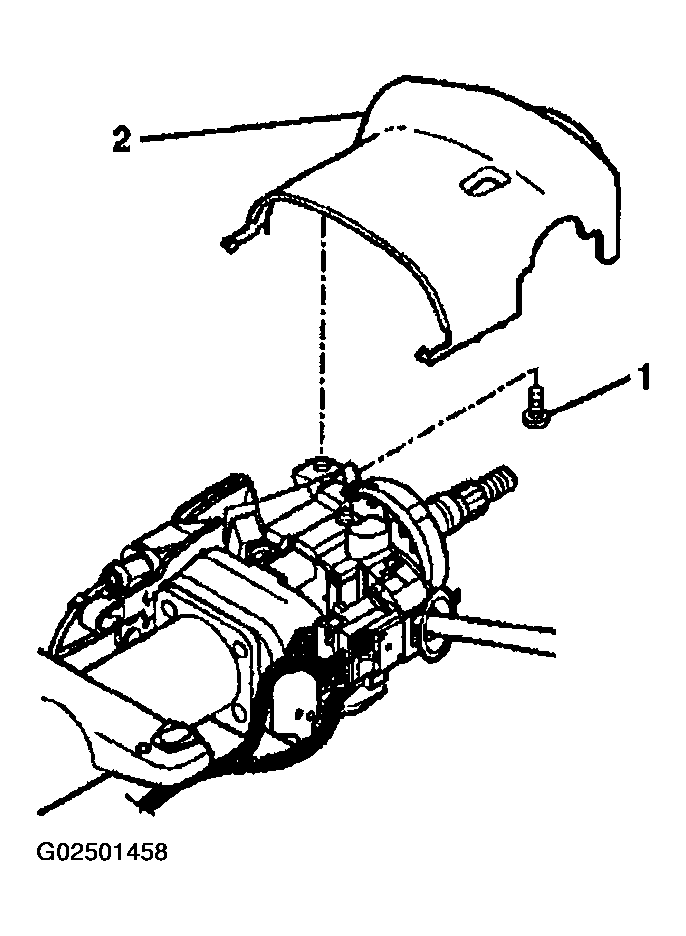

    Fig 3: Identifying Upper Trim Cover

    Courtesy of GENERAL MOTORS CORP.
11. Remove the trim cover protector (1) from the lower trim cover (2).

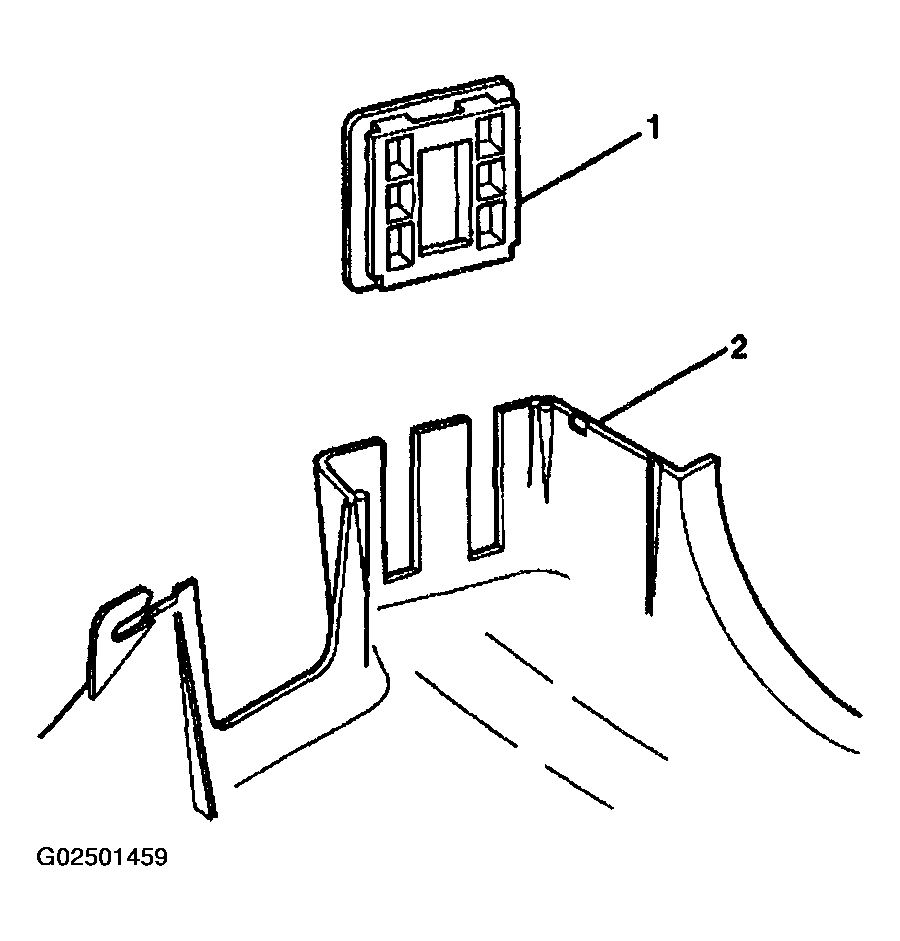

    Fig 4: Identifying Trim Cover Protector

    Courtesy of GENERAL MOTORS CORP.
