Tools Required

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .

    Important:  Let the inflatable restraint steering wheel module coil hang freely after removal.

    Fig 1: Steering Column Lock Plate Compressor
    G01667303Courtesy of GENERAL MOTORS CORP.
  2. Remove the inflatable restraint steering wheel module coil. Refer to Inflatable Restraint Steering Wheel Module Coil - Disassemble - Off Vehicle .
  3. Remove the bearing retainer using J 23653-SIR  and J 42137  .
  4. Remove the J 23653-SIR  and J 42137  .
  5. Discard the bearing retainer.
  6. Remove the following parts from the steering shaft assembly:
    1. 6.1. The cam orientation plate (4)
    2. 6.2. The turn signal cancel cam assembly (3)
    3. 6.3. The upper bearing spring (2)
    4. 6.4. The thrust washer (1)

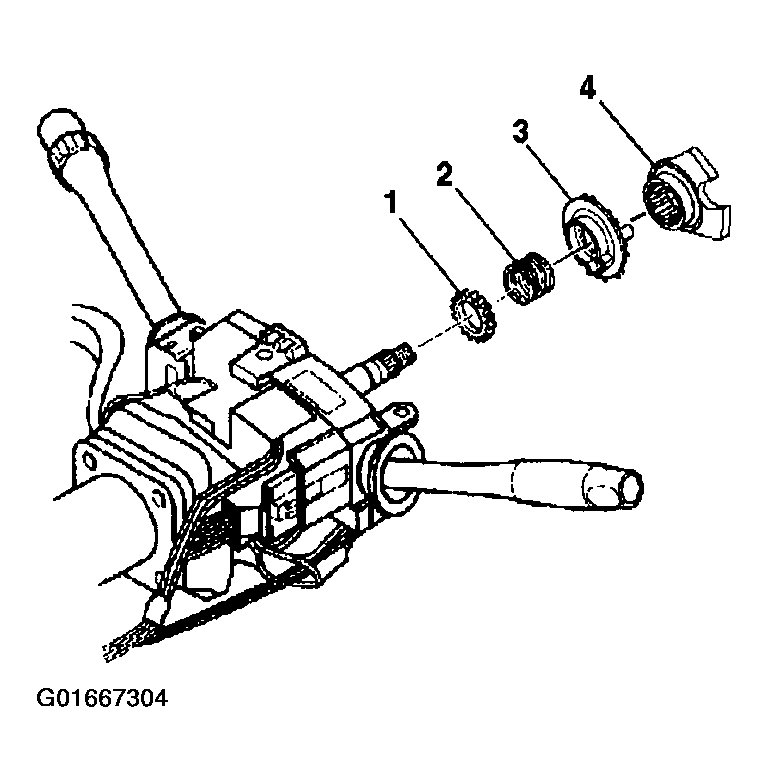

      Fig 2: Cam Orientation Plate, Turn Signal Cancel Cam, Upper Bearing Spring & Thrust Washer
      G01667304Courtesy of GENERAL MOTORS CORP.
