Linear Shift Assembly - Assemble - Off Vehicle (Column Shift)
WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

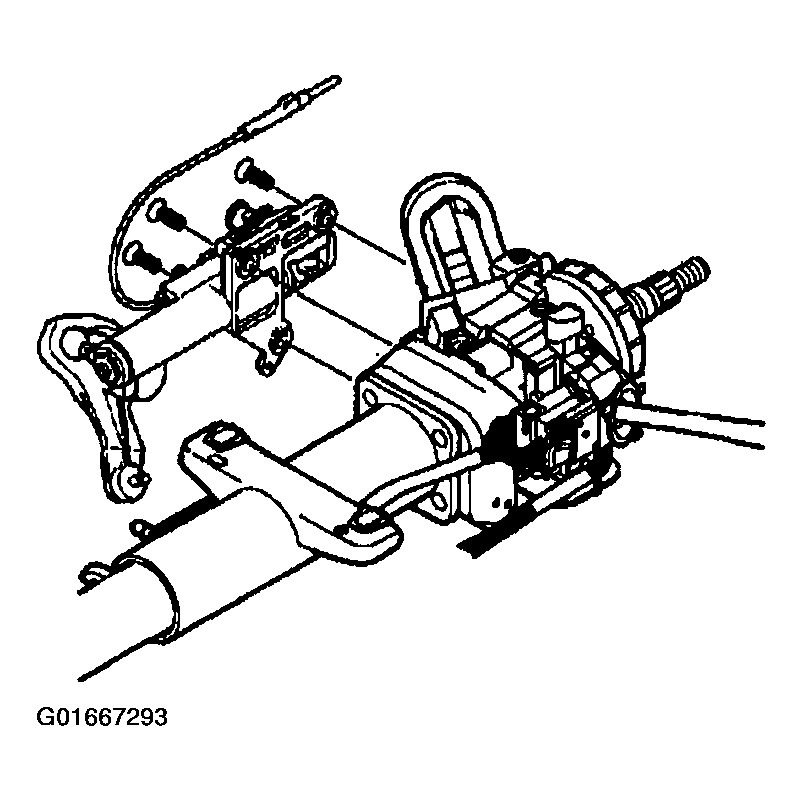

- Install the linear shift assembly onto the steering column support assembly.
- Secure the linear shift assembly to the steering column assembly with the 3 flat head tapping screws. Move the linear shift assembly out of the PARK position to install the lower socket tapping screw. Tighten the 3 TORX® screws to 10 N.m (89 lb in).
- Install the automatic transmission shift lock control.
- Install the shift lever clevis and put the column in the neutral position.
- The neutral position is 2 position from the park position.
- Slide the park position switch assembly onto the linear shift assembly.
- Connect the automatic transmission shift lock control connector onto the park position switch assembly.
- Connect the park lock cable assembly (1) to the lock module assembly in the following way:
- 8.1. Place the steering column lock cylinder set into the off position.
- 8.2. Place the shift lever clevis into the park position.
- 8.3. Press the locking tab on the end of the park lock cable assembly (1) into the slot in the lock module assembly.
- Install the shift lever. Refer to Shift Lever Replacement - On Vehicle (With Tow/Haul Switch) or Shift Lever Replacement - On Vehicle (Without Tow/Haul Switch) .
- Install the upper and lower trim covers. Refer to Steering Column Trim Covers - Assemble - Off Vehicle (Column Shift Snap On Shrouds) or Steering Column Trim Covers - Assemble - Off Vehicle (Floor Shift) .
- Enable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
