Steering Column Trim Covers - Assemble - Off Vehicle (Floor Shift)

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper trim cover (2) onto the steering column.
  2. Screw the 2 TORX® head screws (1) into the upper trim cover (2). Tighten the 2 TORX® head screws to 1.5 N.m (13 lb in).
    Fig 1: Upper Trim Cover
    G01667264Courtesy of GENERAL MOTORS CORP.
  3. Install the lower trim cover onto the upper trim cover in the following way:
    1. 3.1. Match the tab slots on the lower trim cover with the locking tabs on the upper trim cover.
    2. 3.2. Tilt the lower trim cover up.
    3. 3.3. Slide the lower trim cover forward until the locking tabs snap into the tab slots.

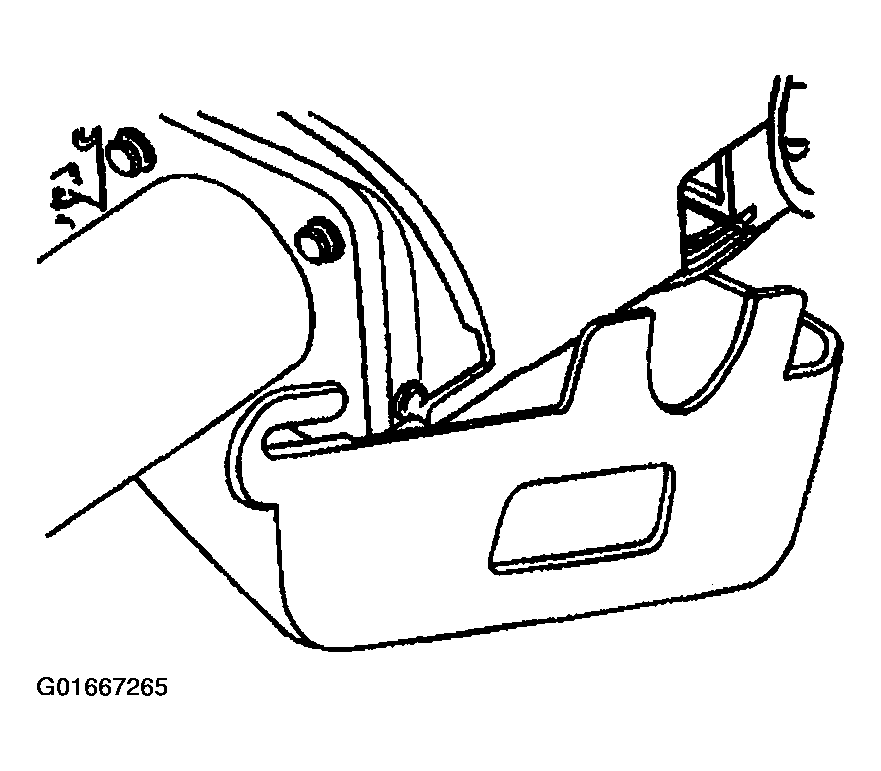

      Fig 2: Lower Trim Cover
      G01667265Courtesy of GENERAL MOTORS CORP.
  4. Screw the 2 pan head tapping screws (1) into the lower trim cover (2). Tighten the 2 pan head tapping screws to 3.5 N.m (31 lb in).
  5. Install the tilt lever into the lower trim cover. Refer to Tilt Lever Replacement - On Vehicle .
  6. Install the steering wheel onto the steering column. Refer to Steering Wheel Replacement .
  7. Enable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
