Inflatable Restraint Steering Wheel Module Coil - Assemble - Off Vehicle

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the block tooth on the steering column shaft assembly (1) to the 12 o'clock position.

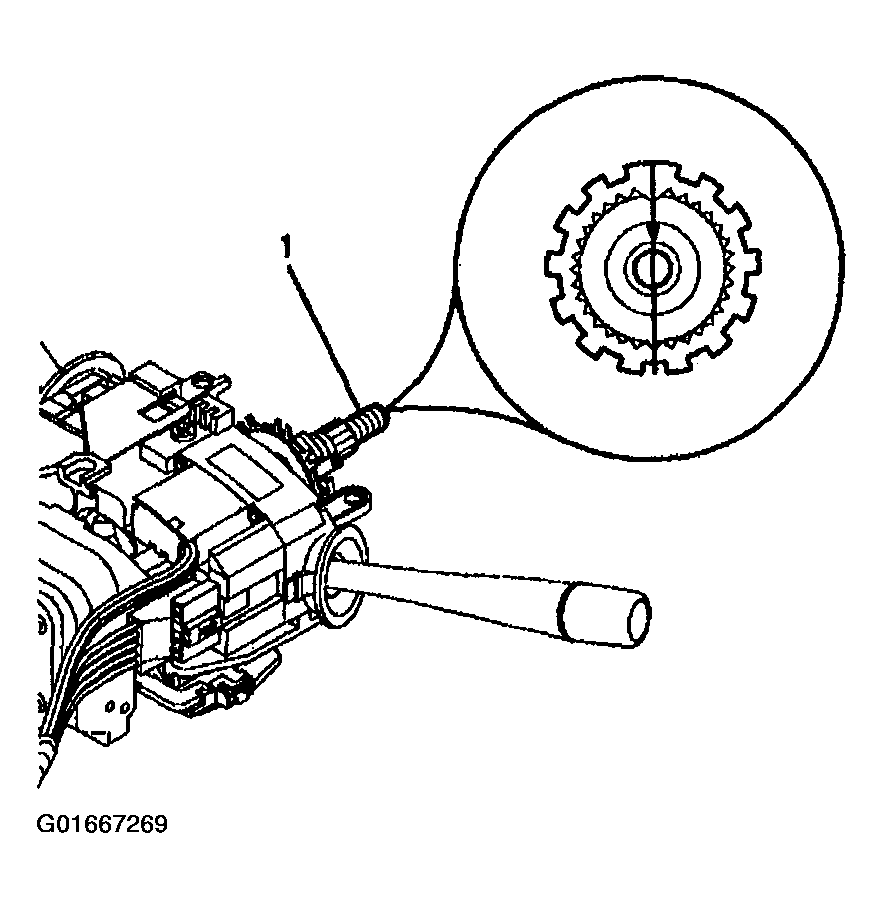

    2. Fig 1: Block Tooth
    G01667269Courtesy of GENERAL MOTORS CORP.
  2. Place the ignition switch in the LOCK position.
  3. Install the wave washer (1) onto the steering column shaft assembly (2).

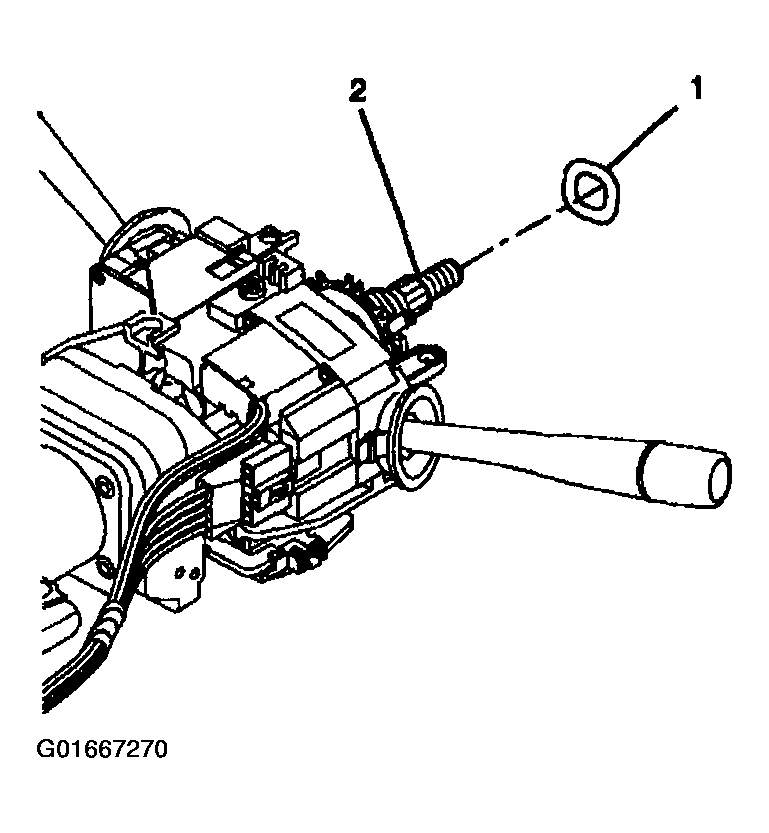

    4. Fig 2: Wave Washer
    G01667270Courtesy of GENERAL MOTORS CORP.
  4. If you are installing the existing inflatable restraint steering wheel module coil, you must center the inflatable restraint steering wheel module coil first. Refer to Inflatable Restraint Coil Centering - Off Vehicle (Column Shift & Floor Shift) .

    Important:  The new inflatable restraint steering wheel module coil will be pre-centered. Do not remove the centering tab from the new inflatable restraint steering wheel module coil until the installation is complete.

  5. Align the inflatable restraint steering wheel module coil (4) with the horn tower on the turn signal cancel cam assembly (1).
  6. Slide the new inflatable restraint steering wheel module coil (4) onto the steering column shaft assembly (2).

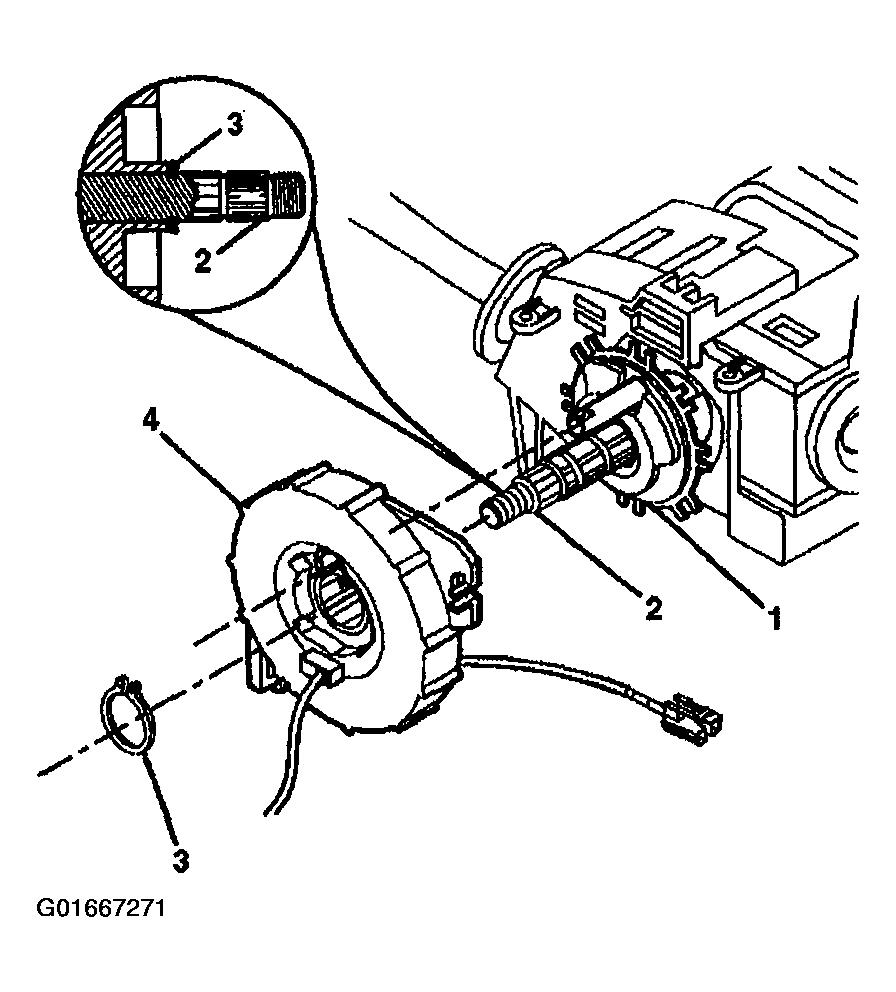

    7. Fig 3: Inflatable Restraint Steering Wheel Module Coil
    G01667271Courtesy of GENERAL MOTORS CORP.
  7. Firmly seat the retaining ring (3) into the groove on the steering column shaft assembly (2).
  8. Remove the centering tab from the new inflatable restraint steering wheel module coil (4).
  9. Discard the centering tab.

    Important:  The abrasion sleeve must be installed back onto the steering column wire harness assembly. The electronic lock module assembly wires and connector must be hanging out of the middle of the abrasion sleeve.

  10. Reconnect the inflatable restraint steering wheel module coil connector to the turn signal switch assembly connector.
  11. Install the wire harness assembly (1) into the wire harness strap (2).
  12. Install the upper and lower trim covers. Refer to Steering Column Trim Covers - Assemble - Off Vehicle (Column Shift Snap On Shrouds)  or Steering Column Trim Covers - Assemble - Off Vehicle (Floor Shift)  .
  13. Enable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
