Ignition and Key Alarm Switch Assembly - Disassemble - Off Vehicle (Column Shift)

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper and lower trim covers. Refer to Steering Column Trim Covers - Disassemble - Off Vehicle (Column Shift)  or Steering Column Trim Covers - Disassemble - Off Vehicle (Floor Shift)  .
  2. Remove the wire harness strap (2) from the steering column and the wire harness assembly (1).
    Fig 1: Wire Harness Assembly
    G01720316Courtesy of GENERAL MOTORS CORP.
  3. Slide the 2 connectors (2) of the turn signal and multifunction switch assembly out of the bulkhead connector (1).

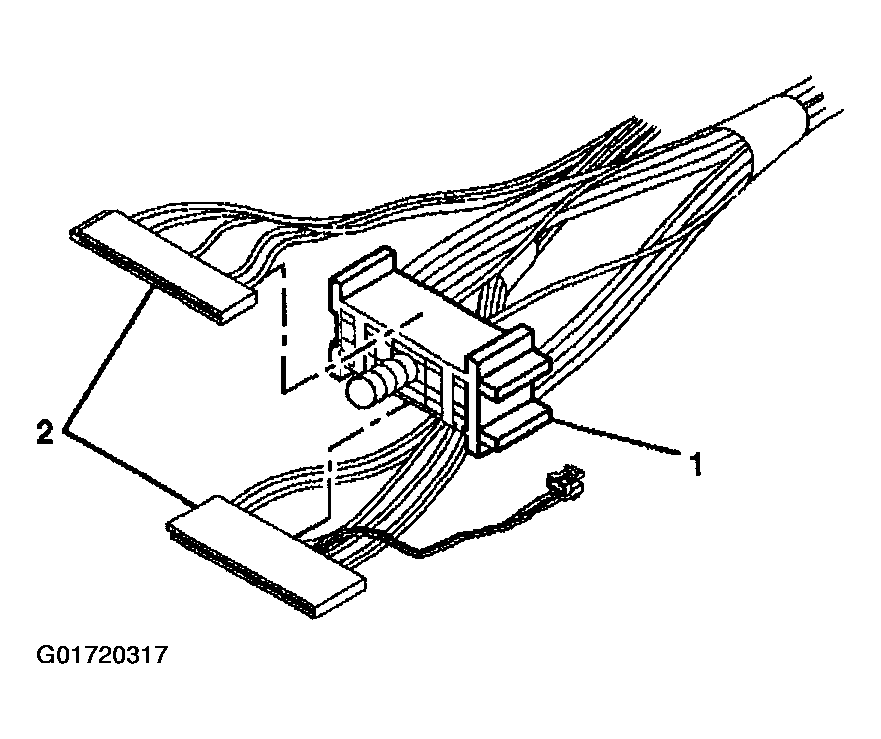

    Fig 2: Turn Signal And Multifunction Switch Assembly Connectors
    G01720317Courtesy of GENERAL MOTORS CORP.
  4. Remove the key alarm connector (1) from the electronic lock module assembly (2).
    1. 4.1. Rotate the key alarm connector (1) 90 degrees.
    2. 4.2. Pull the key alarm connector (1) out of the electronic lock module assembly (2).

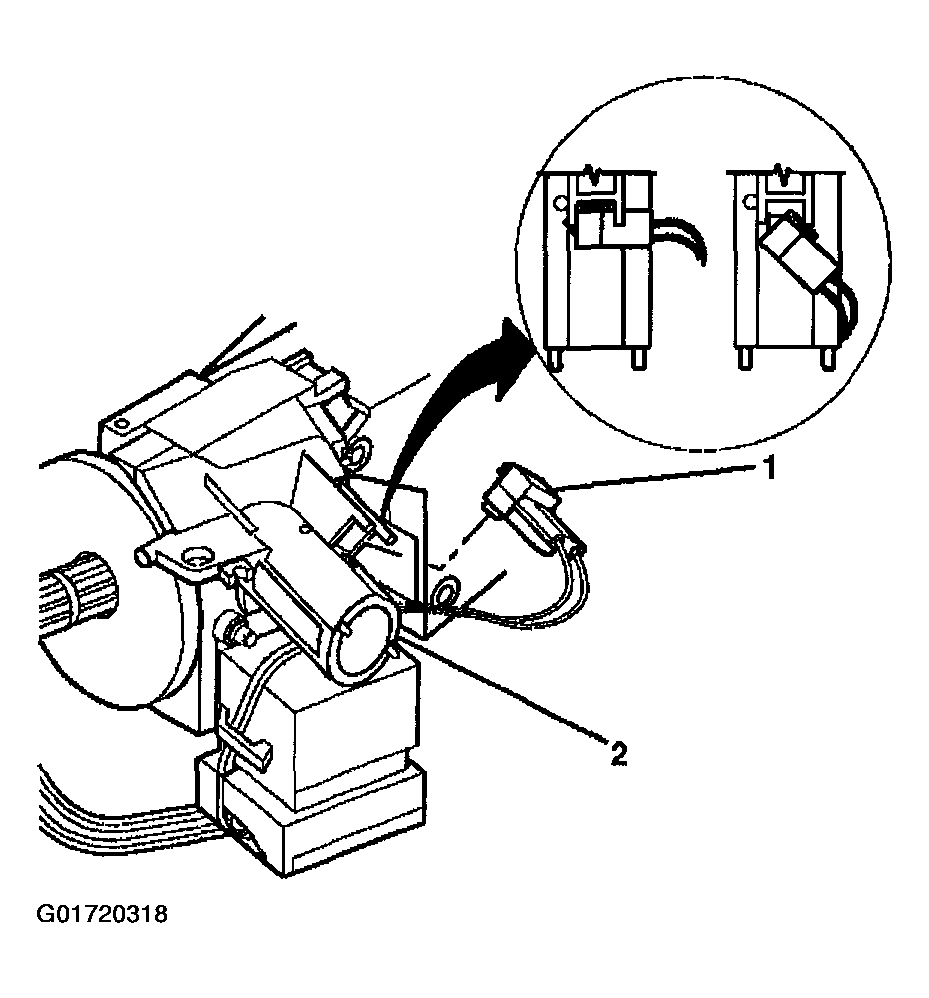

      3. Fig 3: Key Alarm Connector To The Electronic Lock Module Assembly
      G01720318Courtesy of GENERAL MOTORS CORP.
  5. Remove the 2 tapping screws (2) from the ignition and key alarm switch assembly (1).
  6. Remove the ignition and key alarm switch assembly (1) from the electronic lock module assembly.

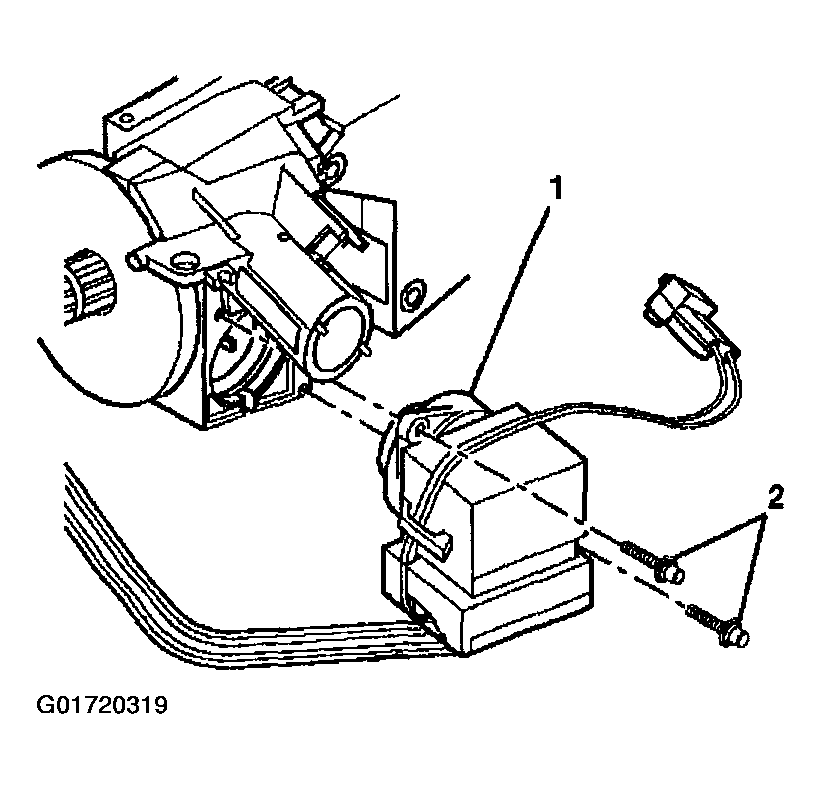

Fig 4: Key Alarm Switch Assembly And Tapping Screws
G01720319Courtesy of GENERAL MOTORS CORP.
