Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

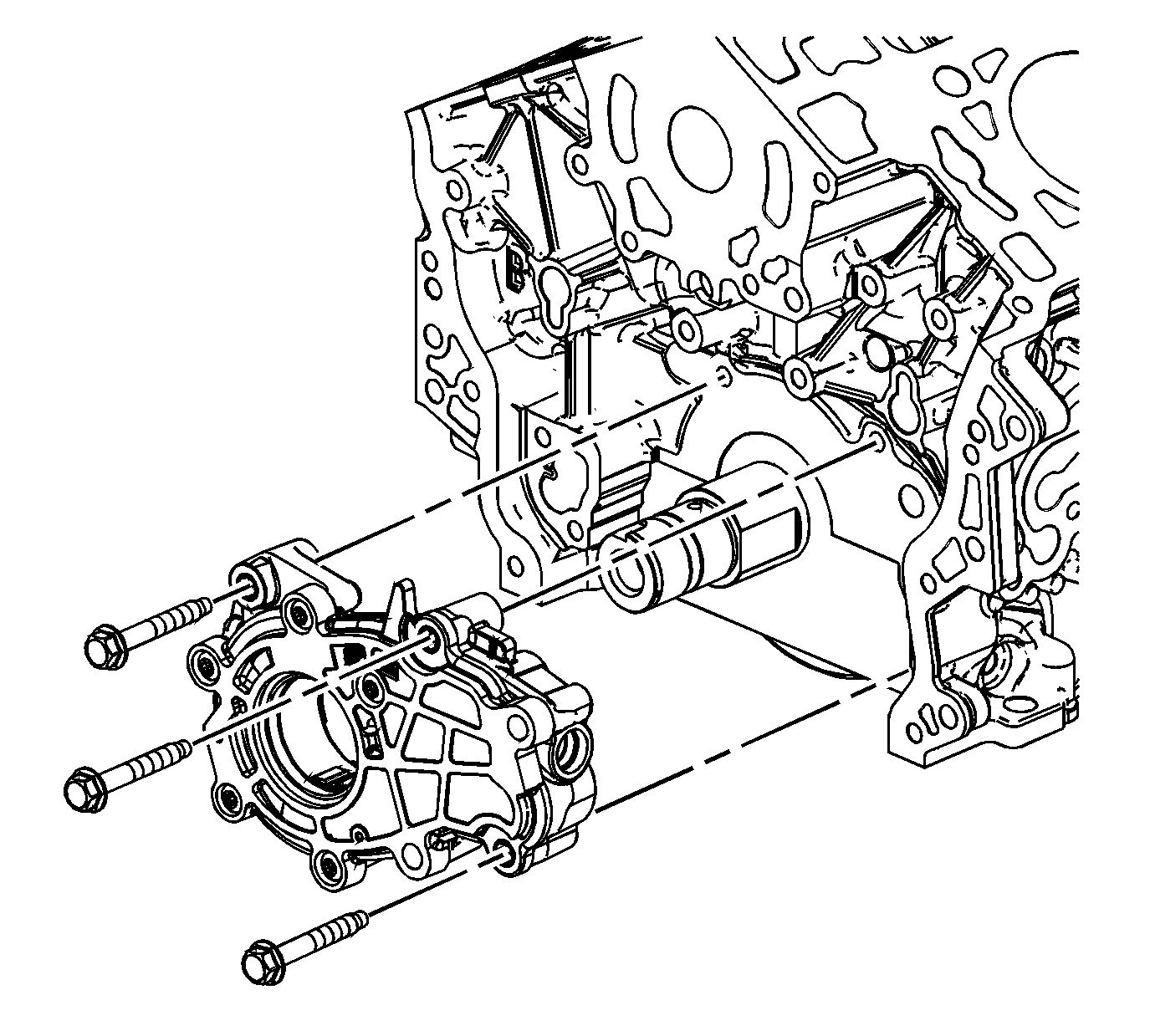

    Fig 1: Identifying Oil Pump & Bolts
    GM1579118Courtesy of GENERAL MOTORS CORP.
  1. Install the oil pump. Refer to Oil Pump Installation .
  2. Install the primary timing chain. Refer to Primary Camshaft Drive Chain and Sprockets Replacement .
