Oil Pump Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

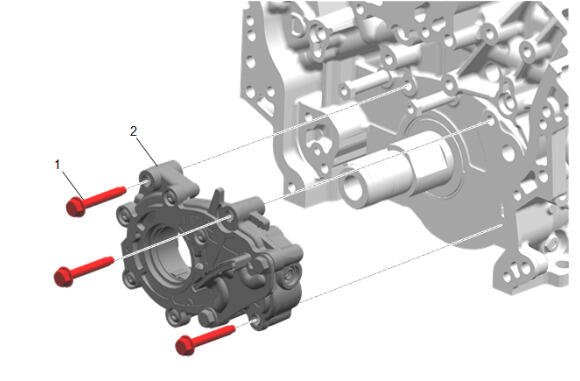

    Fig 1: Identifying Oil Pump & Bolts
    GM1866869Courtesy of GENERAL MOTORS CORP.
  1. Align the oil pump drive gear with the crankshaft flats and install the oil pump to the engine block.
  2. Align the pump body with the mounting holes in the cylinder block.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the oil pump bolts. Tighten the oil pump bolts to 23 N.m (17 lb ft).
