Transmission Fluid Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

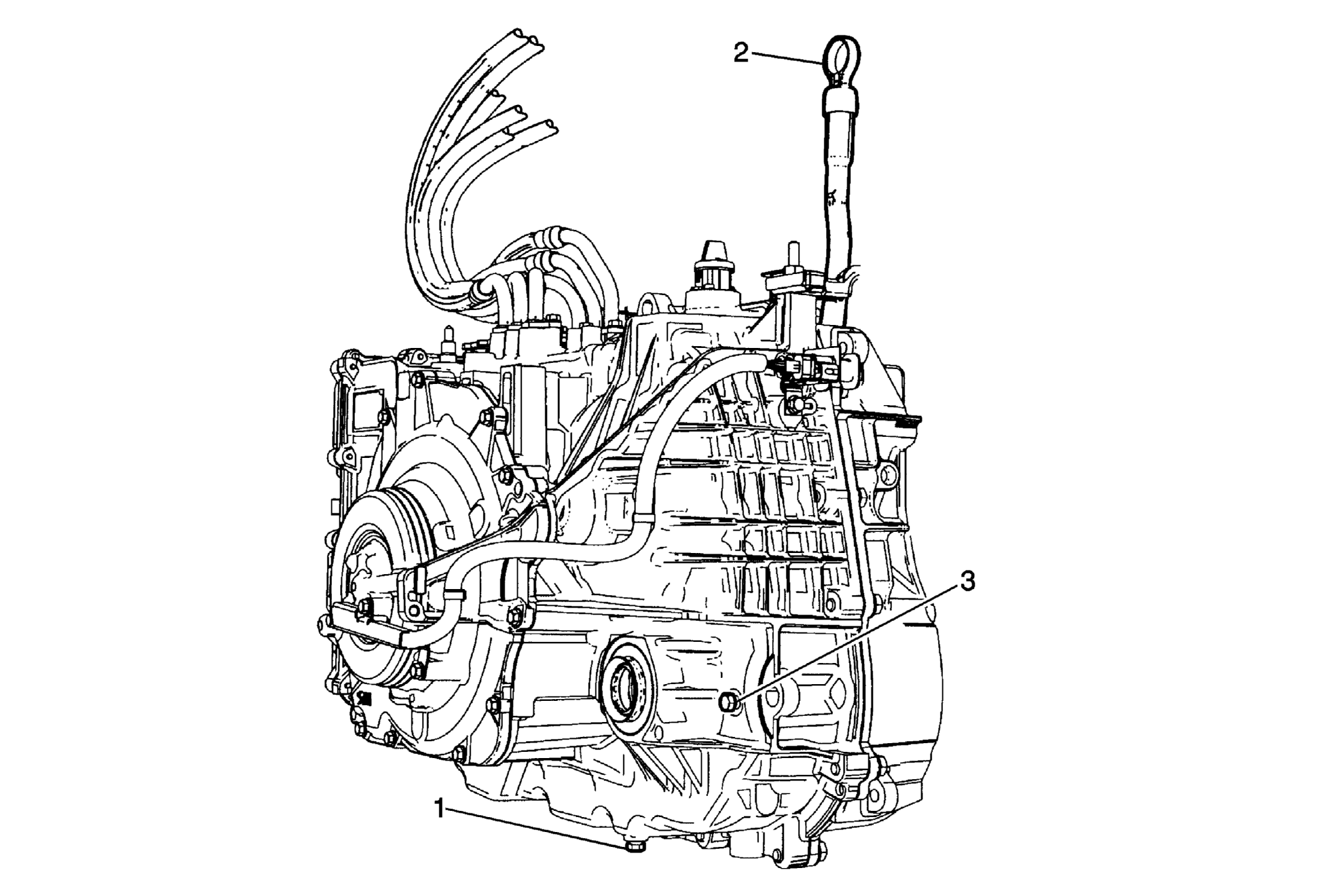

Fig 1: Drain Plug & Fill Tube

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Fluid Drain Plug CAUTION: Refer to Component Fastener Tightening Caution . Tip: Place a drain pan capable of containing more than 5 quarts of fluid under the transmission before removing the plug to drain the fluid. Tighten: 12 N.m (106 lb in)
2	Fill Tube Cap Tip: Transmission will require approximately 6.5-7 Liters 7-7.4 quarts of fluid. Fill the transmission with fluid. Refer to Transmission Fluid Check .
