Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

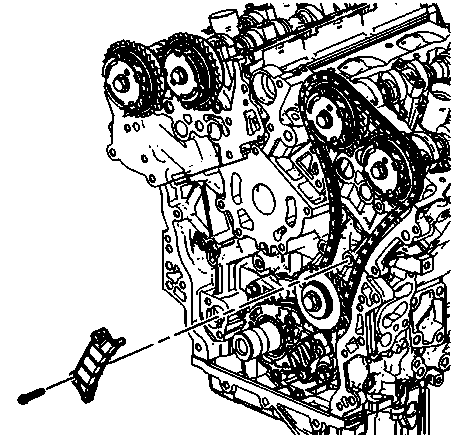

    Fig 1: View Of Left Bank Secondary Camshaft Drive Chain Guide
    GM902831Courtesy of GENERAL MOTORS CORP.
  1. Install the left bank secondary camshaft drive chain guide. Refer to Secondary Timing Chain Guide Installation - Left Side .
  2. Install the left bank secondary camshaft drive chain tensioner. Refer to Secondary Timing Chain Tensioner Installation - Left Side .
  3. Install the spark plugs. Refer to Spark Plug Replacement .
  4. Install the engine front cover. Refer to Engine Front Cover Replacement .
