Secondary Timing Chain Guide Installation - Left Side

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Camshaft Drive Chain Guide
    GM1852371Courtesy of GENERAL MOTORS CORP.
  1. Ensure that the left secondary camshaft drive chain guide (2) is being installed.

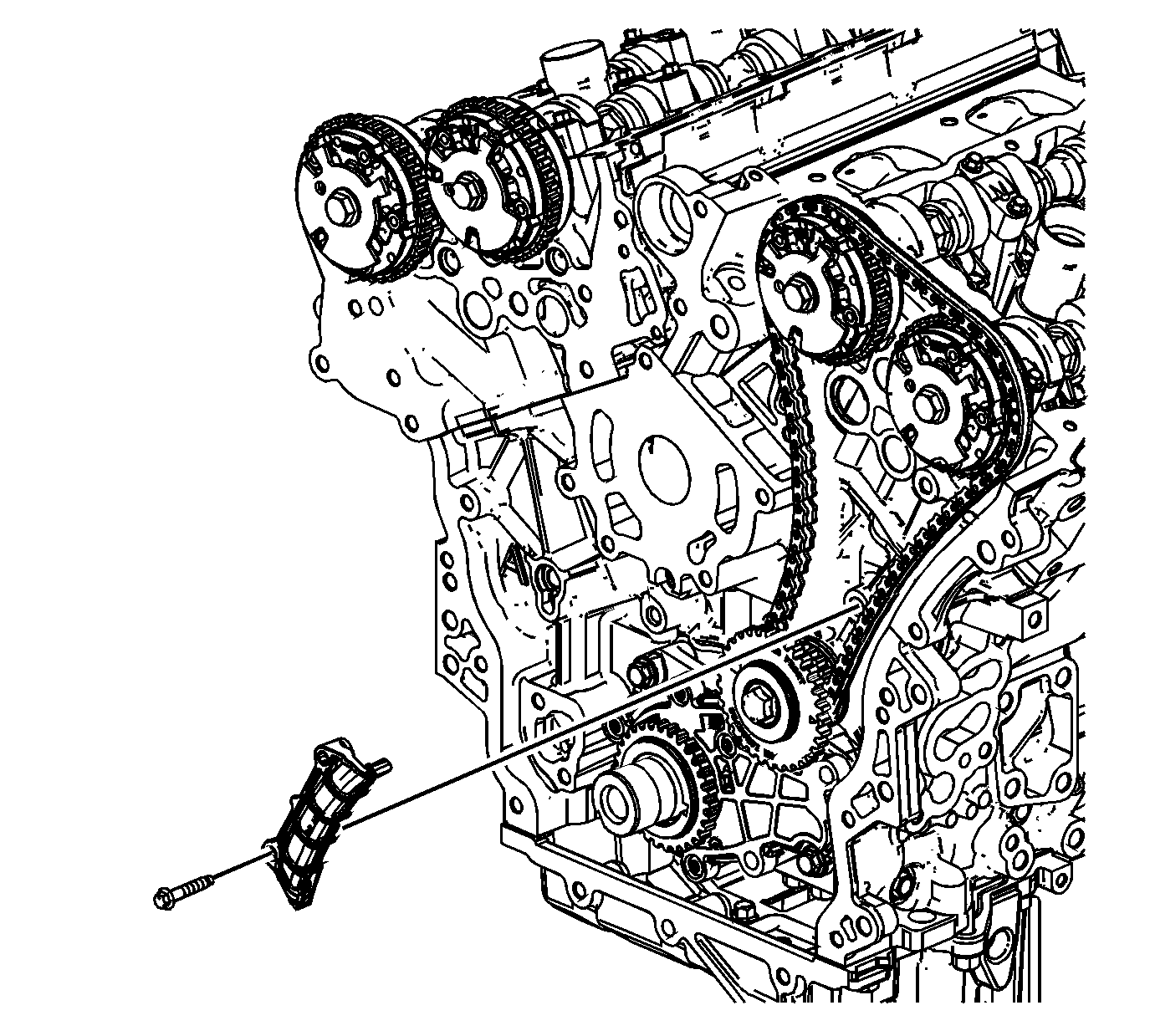

    2. Fig 2: View Of Secondary Camshaft Drive Chain Guide Bolts
    GM1852372Courtesy of GENERAL MOTORS CORP.
  2. Position the left secondary camshaft drive chain guide.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the secondary camshaft drive chain guide bolts and tighten to 25 N.m (18 lb ft).
