Tools Required

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

EN-47719 Tensioner Compressor. See Special Tools .

Fig 1: Identifying Tensioner Collapsing Procedure

Courtesy of GENERAL MOTORS CORP.

Using the EN-47719 fully collapse the tensioner and place the tensioner retaining pin into the retaining hole (1). See Special Tools .

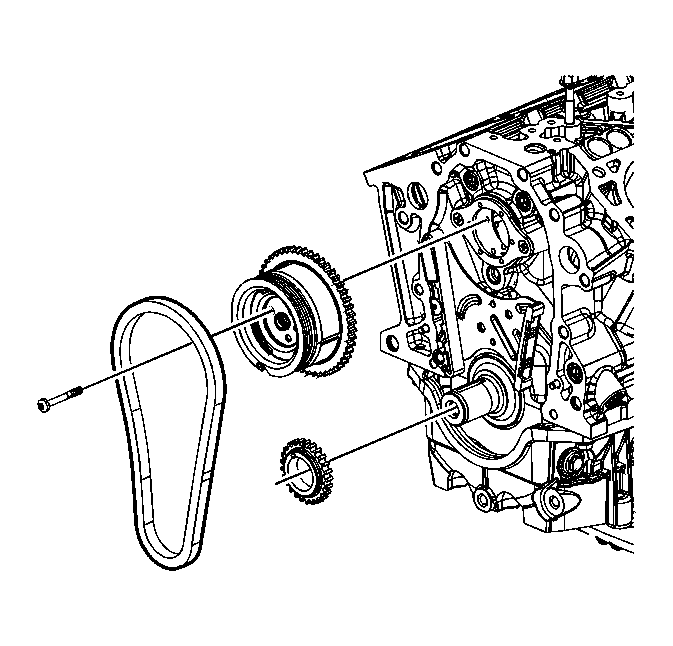

Fig 2: View Of Timing Chain & Sprockets

Courtesy of GENERAL MOTORS CORP.

Remove the camshaft sprocket bolts.
Remove the timing chain and sprockets.

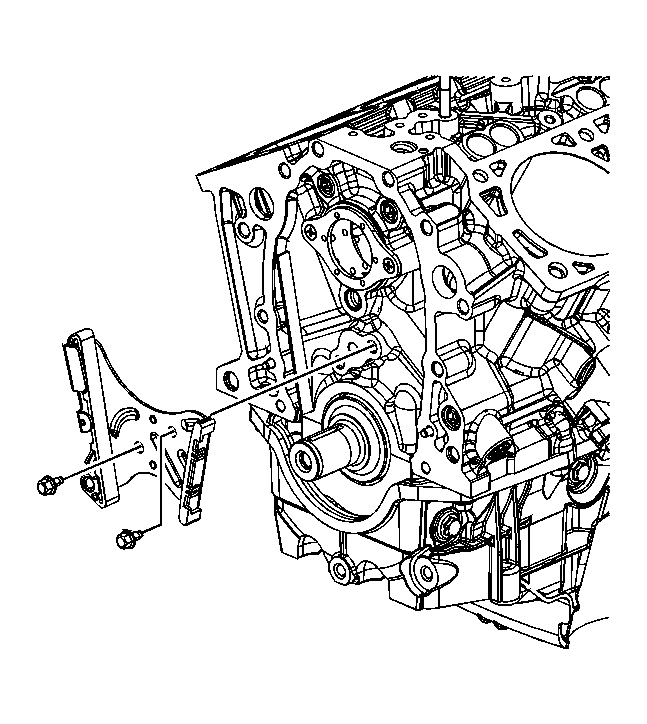

Fig 3: View Of Timing Chain Tensioner & Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the timing chain tensioner bolts.
Remove the timing chain tensioner.
