Special Tools

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Illustration	Tool Number/Description

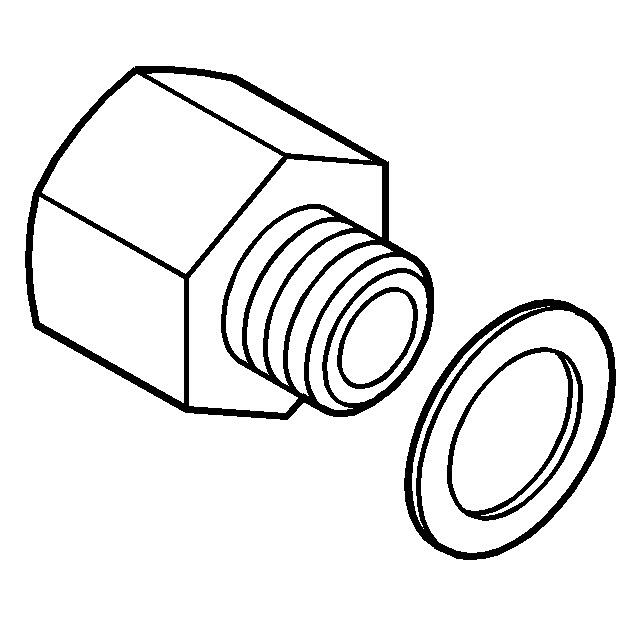

Courtesy of GENERAL MOTORS CORP.	EN-46359 Puller End Protector
Courtesy of GENERAL MOTORS CORP.	EN-46745 Piston Pin Clip Remover/Installer
Courtesy of GENERAL MOTORS CORP.	EN-47719 Tensioner Compressor
Courtesy of GENERAL MOTORS CORP.	EN-47823 Valve Spring Compressor Adapter
Courtesy of GENERAL MOTORS CORP.	EN-48108 Rear Main Oil Seal Installer
Courtesy of GENERAL MOTORS CORP.	EN 48672 Rear Main Oil Seal Remover
Courtesy of GENERAL MOTORS CORP.	EN 48869 Front Crankshaft Oil Seal Installer
Courtesy of GENERAL MOTORS CORP.	J 5892-D Valve Spring Compressor
Courtesy of GENERAL MOTORS CORP.	J 7872 Magnetic Base Dial Indicator
Courtesy of GENERAL MOTORS CORP.	J 8001 Dial Indicator Set
Courtesy of GENERAL MOTORS CORP.	J 8037 Ring Compressor
Courtesy of GENERAL MOTORS CORP.	J 8087 Cylinder Bore Gage
Courtesy of GENERAL MOTORS CORP.	J 8089 Carbon Removal Brush
Courtesy of GENERAL MOTORS CORP.	J 8520 Cam Lobe Lift Indicator
Courtesy of GENERAL MOTORS CORP.	J 9666 Valve Spring Tester
Courtesy of GENERAL MOTORS CORP.	J 21867-6 Oil Pressure Adapter Fitting
Courtesy of GENERAL MOTORS CORP.	J 22144 Oil Suction Pipe Installer
Courtesy of GENERAL MOTORS CORP.	J 22794 Spark Plug Port Adapter
Courtesy of GENERAL MOTORS CORP.	J 23444-A Extreme Press Lubricant - 1/4 Ounce Tube
Courtesy of GENERAL MOTORS CORP.	J 24270 Cylinder Bore Ridge Reamer
Courtesy of GENERAL MOTORS CORP.	J 25087-C Oil Pressure Tester and Pump Primer
Courtesy of GENERAL MOTORS CORP.	J 28428-E High Intensity Black Light Kit
Courtesy of GENERAL MOTORS CORP.	J 28467-B Universal Engine Support Fixture
Courtesy of GENERAL MOTORS CORP.	J 29113 Balancer and Crank Sprocket Puller
Courtesy of GENERAL MOTORS CORP.	J 33049 Camshaft Bearing Service Set
Courtesy of GENERAL MOTORS CORP.	J 35667-A Cylinder Leakdown Tester
Courtesy of GENERAL MOTORS CORP.	J 36462 Engine Support Adapter Leg
Courtesy of GENERAL MOTORS CORP.	J 37096 Flywheel Holder
Courtesy of GENERAL MOTORS CORP.	J 38722 Compression Tester
Courtesy of GENERAL MOTORS CORP.	J 39505 Torque Wrench Adapter
Courtesy of GENERAL MOTORS CORP.	J 41556 Connecting Rod Guide
Courtesy of GENERAL MOTORS CORP.	J 41816 Crankshaft Balancer Remover
Courtesy of GENERAL MOTORS CORP.	J 43690 Rod Bearing Clearance Checking Tool
Courtesy of GENERAL MOTORS CORP.	J 43690-100 Rod Bearing Clearance Checking Tool - Adapter Kit
Courtesy of GENERAL MOTORS CORP.	J 45059 Angle Meter
Courtesy of GENERAL MOTORS CORP.	J 45299 Engine Preluber
