Hood Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

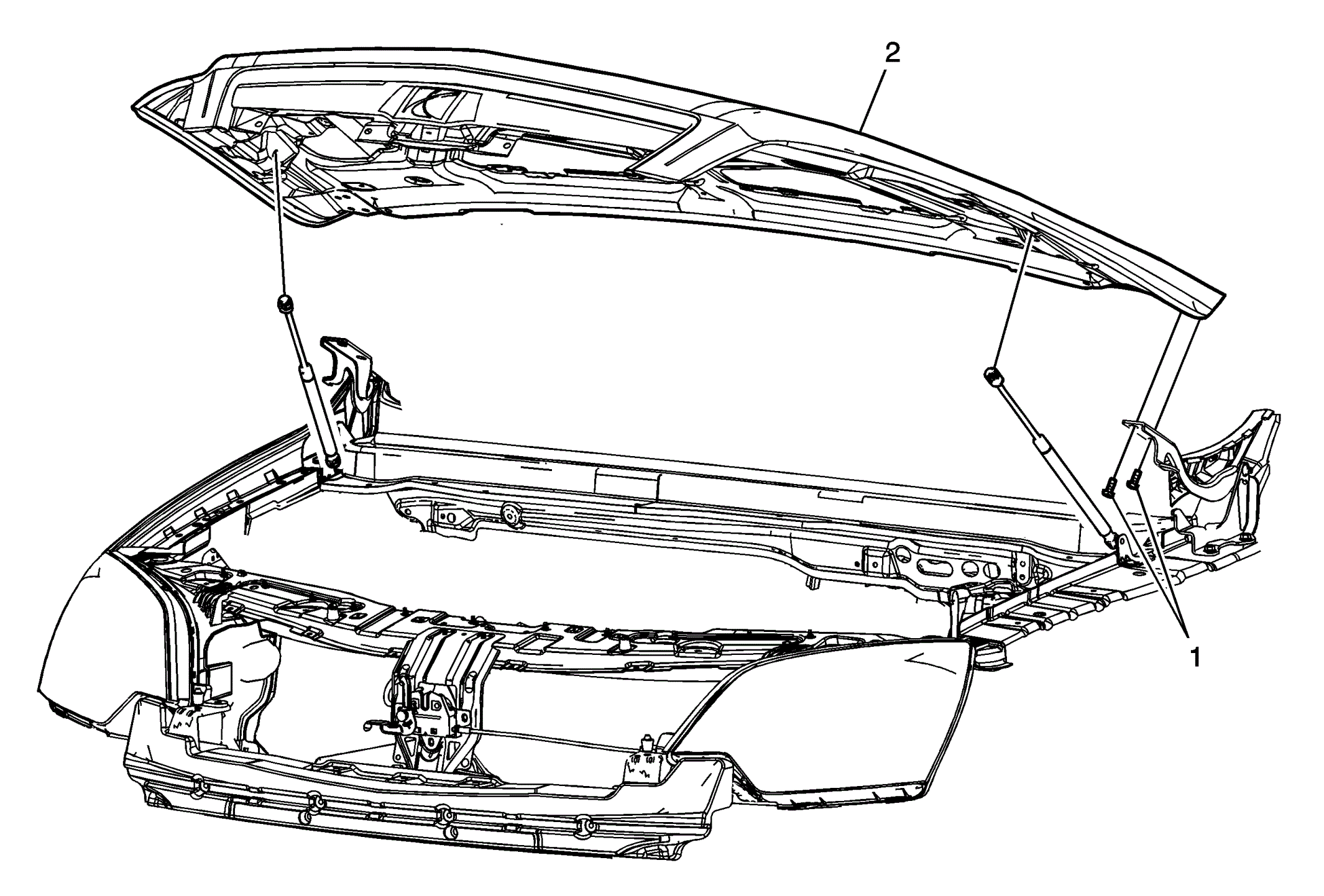

Fig 1: Hood

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. Preliminary Procedure: Disconnect the hood strut rod. Refer to Hood Strut Replacement .
1	Hood Hinge Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 25 N.m (18 lb ft)
2	Hood Tip: Disconnect any electrical connectors before removing. Transfer any parts as needed.
