Hood Strut Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

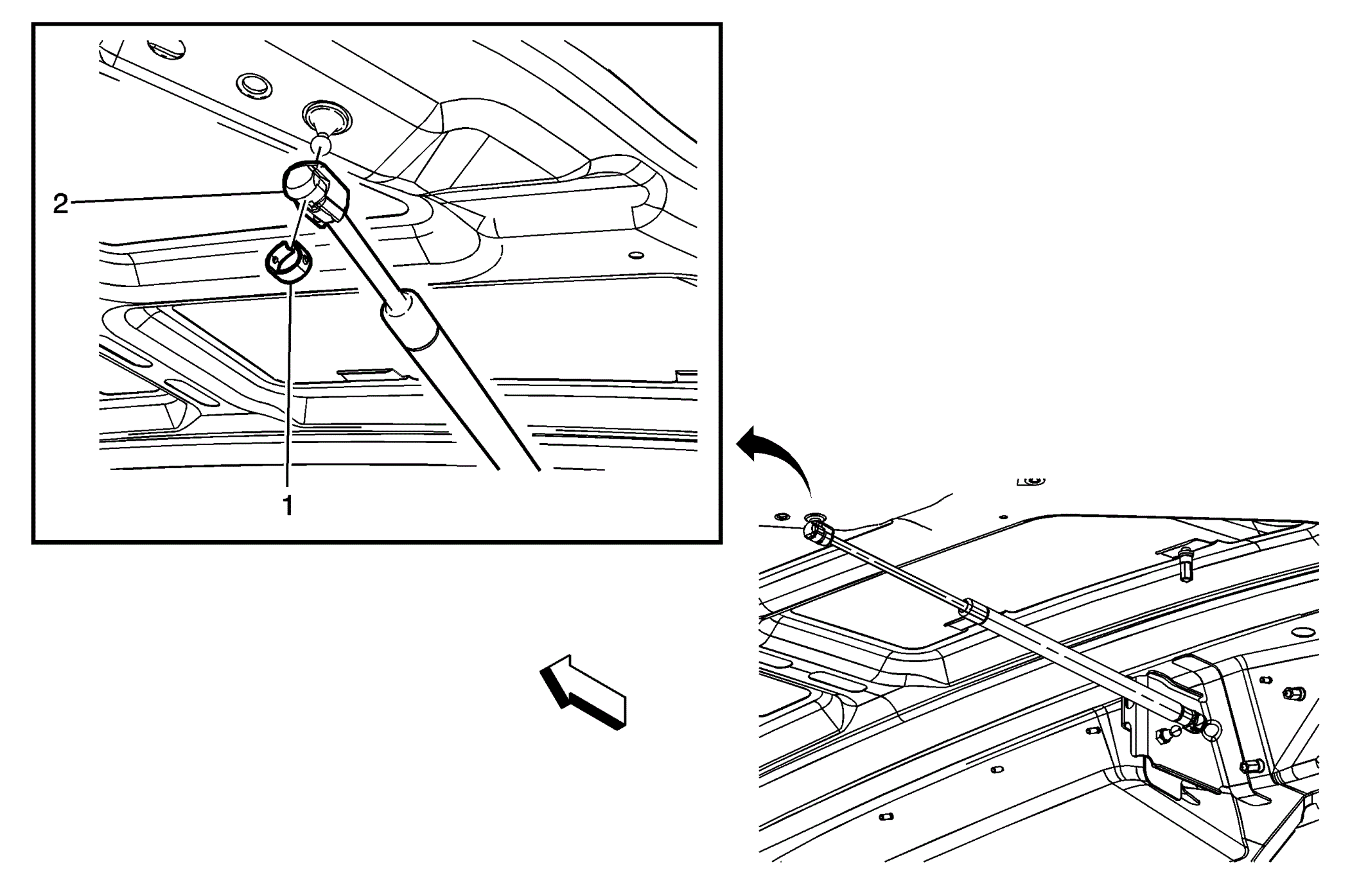

Fig 1: View Of Hood Strut & Retainers

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
1	Hood Strut Retainer (Qty: 2) Procedure Release the locking tabs on the strut. Ensure the clip is fully seared when rod is reinstalled. If the clip cannot be fully seated a new rod should be installed.
2	Hood Strut

Callout

Component Name

WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Hood Strut Retainer (Qty: 2)

Procedure

Release the locking tabs on the strut.
Ensure the clip is fully seared when rod is reinstalled. If the clip cannot be fully seated a new rod should be installed.

Hood Strut
