Hood Hinge Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

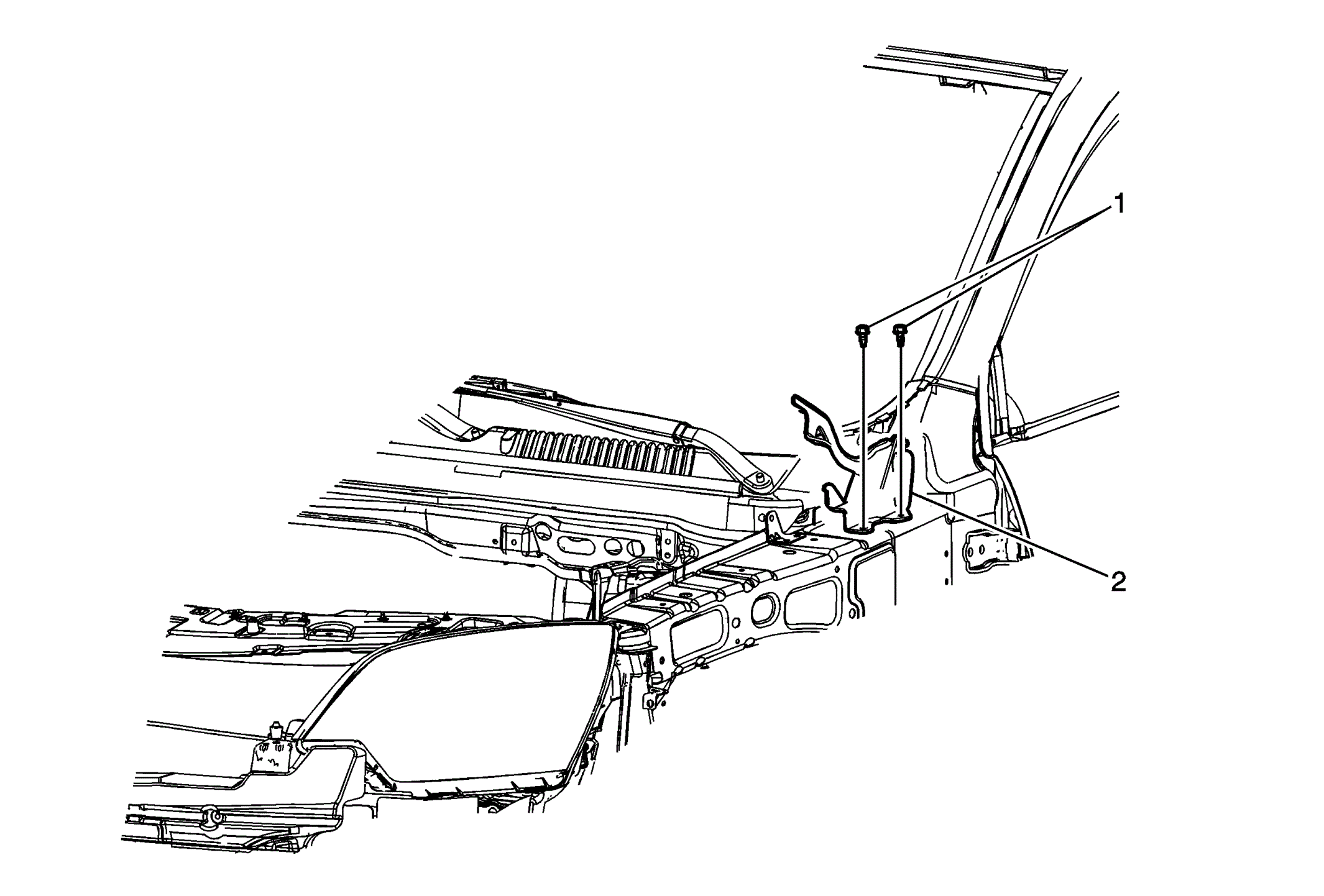

Fig 1: Hood Hinge

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the hood. Refer to Hood Replacement . Remove the front fender. Refer to Front Fender Replacement .
1	Hood Hinge Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 25 N.m (18 lb ft)
2	Hood Hinge Tip: Adjust the hood hinge, if needed. Refer to Hood Adjustment .

Callout

Component Name

Preliminary Procedures

Remove the hood. Refer to Hood Replacement .
Remove the front fender. Refer to Front Fender Replacement .

Hood Hinge Bolt (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 25 N.m (18 lb ft)

Hood Hinge
Tip: Adjust the hood hinge, if needed. Refer to Hood Adjustment .
