Front Side Door Upper Hinge and Lower Hinge Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

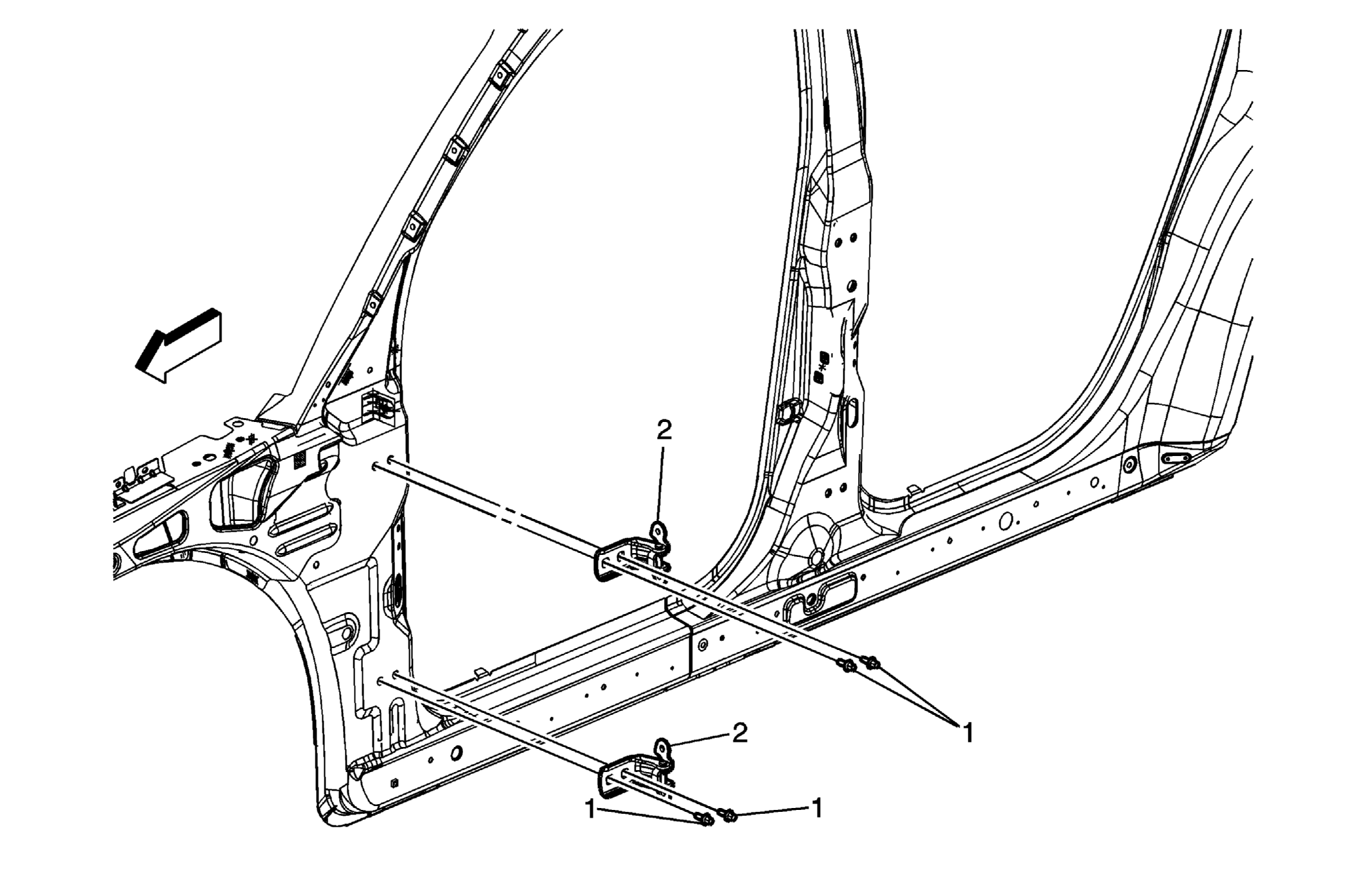

Fig 1: View Of Front Side Door Hinge

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove front fender. Refer to Front Fender Replacement . Remove front door. Refer to Front Side Door Replacement . Remove the insulator pad between the fender and the hinge pillar to remove bolts.
1	Front Side Door Hinge to Body Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 36 N.m (26 lb ft)
2	Front Side Door Hinge Assembly Procedure If installing new door, transfer all necessary components. Verify door is properly aligned. If door adjustments are needed, refer to Front Side Door Adjustment . Tip: Support the door during procedure. Use a soft marker to outline around the outside of hinge for install purposes. When re-installing door, align hinge with marks made during removal procedures.

Callout

Component Name

Preliminary Procedures

Remove front fender. Refer to Front Fender Replacement .
Remove front door. Refer to Front Side Door Replacement .
Remove the insulator pad between the fender and the hinge pillar to remove bolts.

Front Side Door Hinge to Body Bolt (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 36 N.m (26 lb ft)

Front Side Door Hinge Assembly

Procedure

If installing new door, transfer all necessary components.
Verify door is properly aligned. If door adjustments are needed, refer to Front Side Door Adjustment .

Tip: Support the door during procedure.
Use a soft marker to outline around the outside of hinge for install purposes.
When re-installing door, align hinge with marks made during removal procedures.
