Front Side Door Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

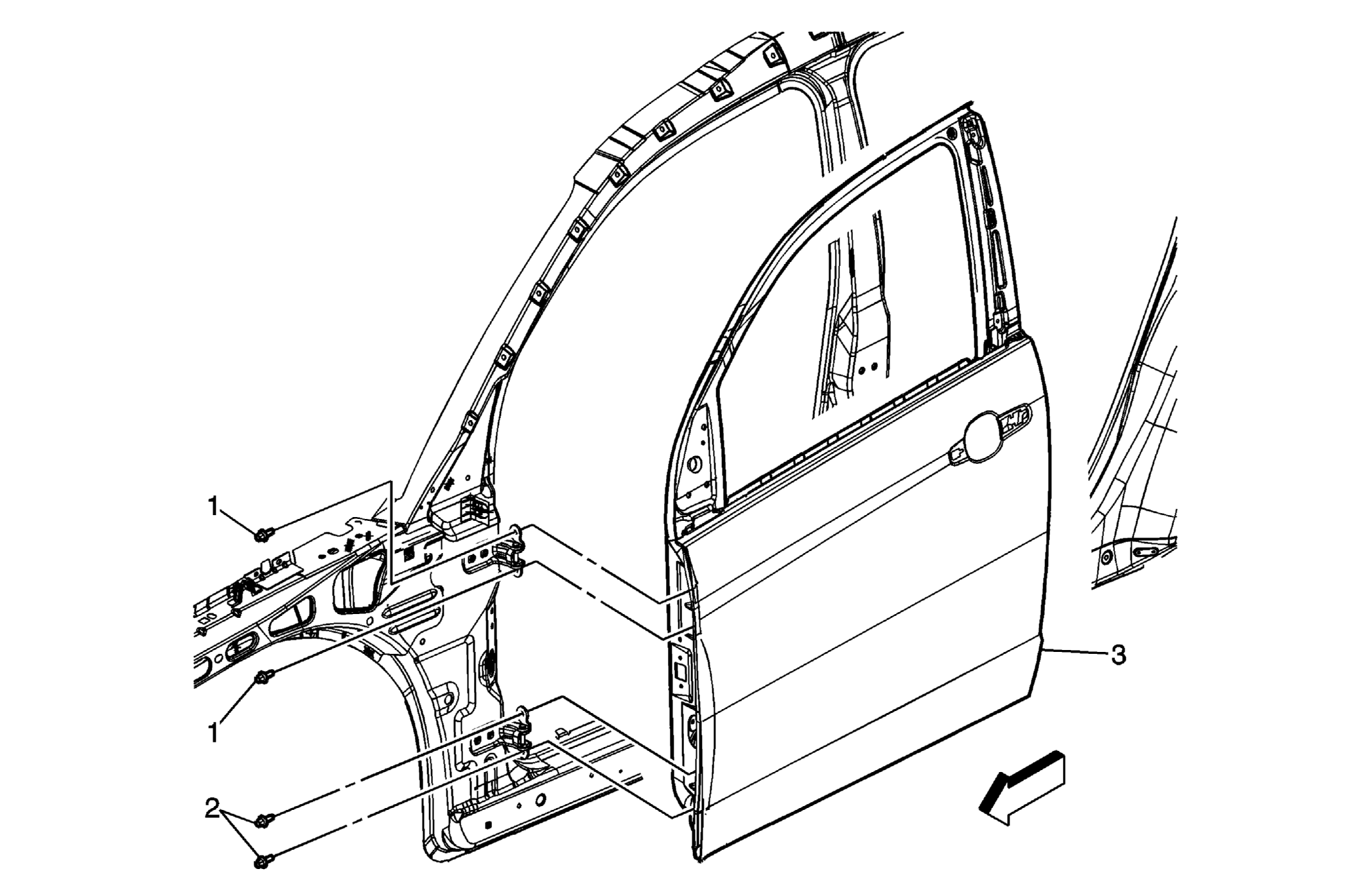

Fig 1: View Of Front Side Door
GM1717126Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
  2. Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
  3. Remove front door check link bolt. Refer to Front Side Door Check Link Replacement .
1 Front Side Door Upper Bolt to Door (Qty: 2)
CAUTION: Refer to Fastener Caution .

Procedure

  1. Remove the water deflector.
  2. Support the door before removing the hinge bolts.
  3. Disconnect the electrical connector, if equipped.

Tighten:  25 N.m (18 lb ft)
2 Front Side Door Lower Bolt to Door (Qty: 2)

Tighten:  25 N.m (18 lb ft)
3 Front Side Door

Procedure

  1. With the aid of an assistant, remove the door.
  2. If installing a new door, transfer all the necessary components.
  3. Verify door is properly aligned. If door adjustments are needed, refer to Front Side Door Adjustment .
